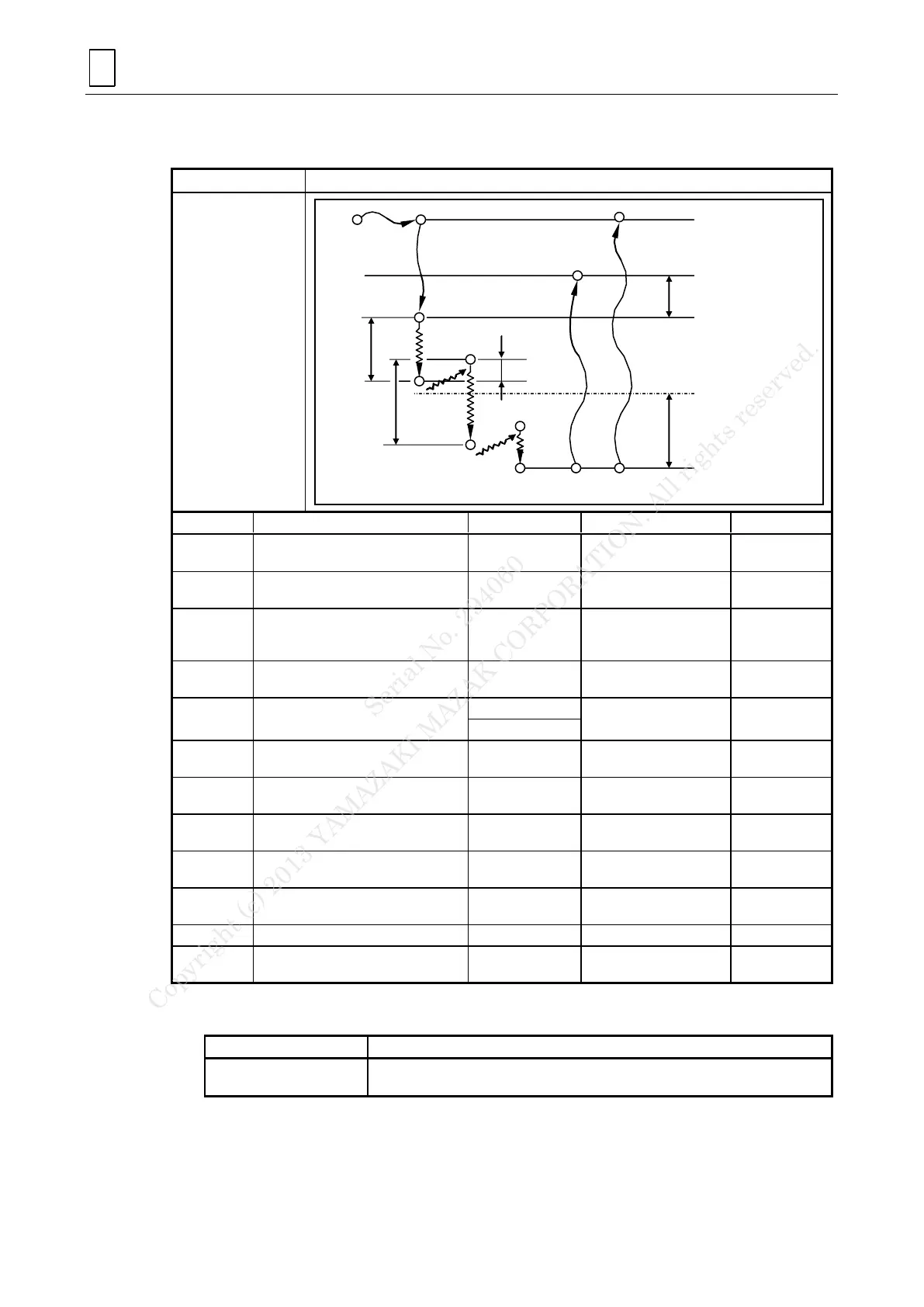

M. Fixed cycles (High-speed deep-hole drilling)
1. Command
Programming format
G73 Xx Yy Rr Zz Qq Pp Dd Ff Kk Ii Jj(Bb)
Function
Code value
Description
Unit
Setting range
Omit
x, y
Machining position
(X, Y-axis)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
r
Designation of R-point position
(incremental value from initial point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Designation of hole bottom position
(absolute/incremental value from
reference point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
q
Designation of cut amount for each
cutting pass
mm
in
0 to 99999.9999 (mm)
0 to 9999.99999 (in)
Impossible
p
Dwell (in time or No. of revolutions)
1/1000 s (G94)
0 to 99999999
Possible
1/1000 rev (G95)
d
Return distance
mm
in
0 to 99999.9999 (mm)
0 to 9999.99999 (in)
Possible
f
Feed rate
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Impossible
k
Distance from R-point to the starting
point of cutting feed
mm
in
0 to 99999.9999 (mm)
0 to 9999.99999 (in)
Possible
i
Feed override distance
mm
in
0 to 99999.9999 (mm)
0 to 9999.99999 (in)
Possible
j (b)
(Note)
Feed override ratio
%
Possible
f
1
Feed overridden = f  j / 100
-
-
-
f
2
Return speed (fixed)
9999 mm/min
999.9 in/min
-
-
Note: Whether argument J or B is to be used depends on the value that has been set in F84
bit1.
Parameter
Description
F84 bit1
0: Argument B-command
1: Argument J-command
Point Z
Point D
R-point
Initial point
Dwell (p)
q
q+d
f
f
d
f
1
2
1
i
k
G98
G99
f
2
f
2
MEP142
Dwell (p)
