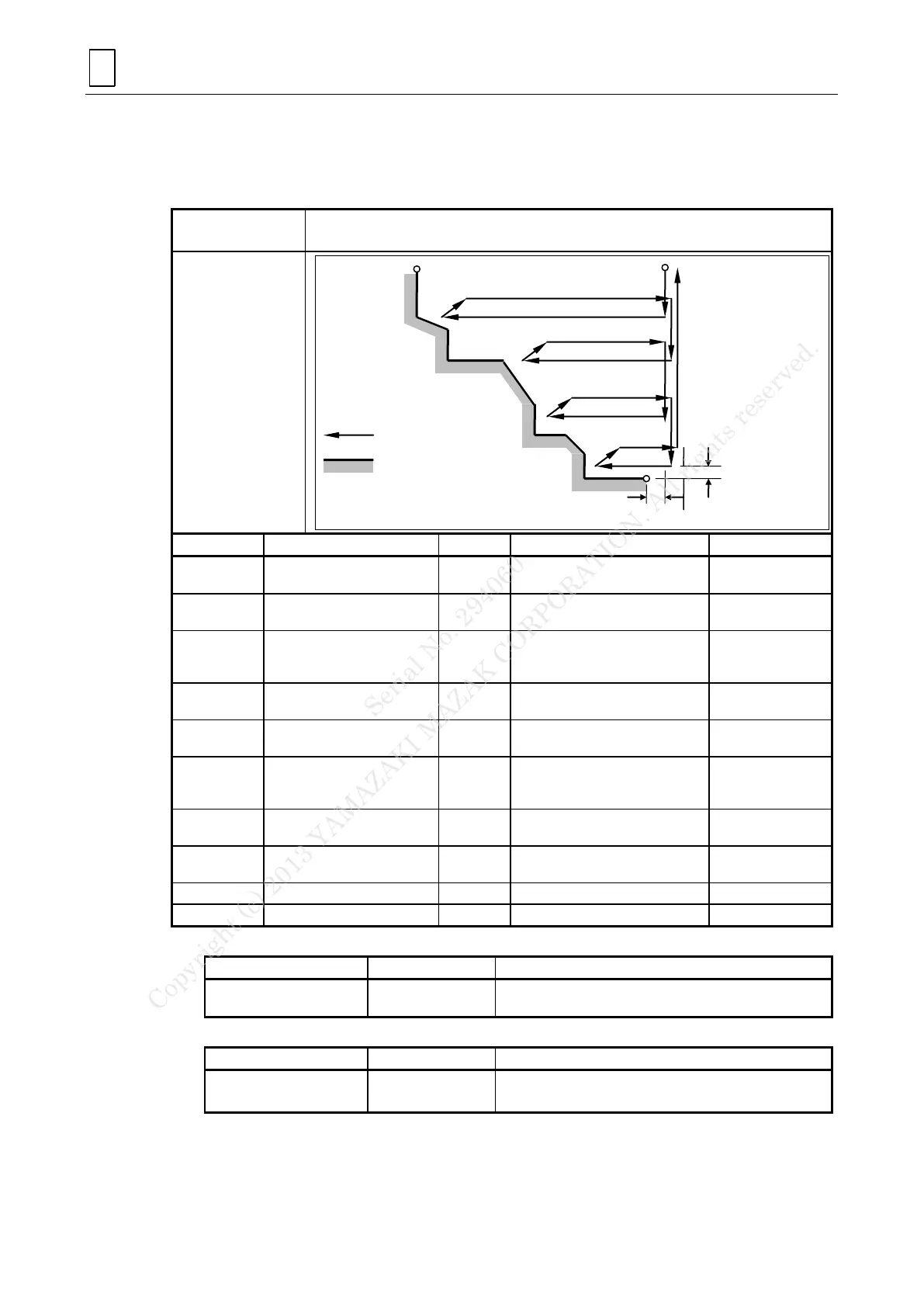

YAMAZAKI MAZAK VORTEX i Series User Manual

5 SUPPLEMENT
5-26
8. G-code (Group09)
A. Compound fixed cycles (Longitudinal roughing cycle)
1. Command
Programming format
G271 Uu
1
Rr
G271 Aa Pp Qq Uu
2
Ww Ff Ss Tt
Function
Code value
Description
Unit
Setting range
Omit
u
1
Depth of cut (in radius
value).
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible (Note 1)
r
Escape distance
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible (Note 2)
a
Finishing contour program
No.
-
1 to 99999999
Possible (own
program will be
repeated)
p
Head sequence No. for
finishing contour
-
1 to 99999
Impossible
q
End sequence No. for
finishing contour
-
1 to 99999
Impossible
u
2
Finishing allowance and
direction along the X-axis (in
diameter or radius value)
mm
in
0 to ±99999.9999 (mm) (Note 3)
0 to ±9999.99999 (in)
Impossible
w
Finishing allowance and
direction along the Z-axis
mm
in
0 to ±99999.9999 (mm) (Note 3)
0 to ±9999.99999 (in)
Impossible
f
Feed rates
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Impossible
s
Spindle
min
-1
0 to 99999
Impossible
t
Tool functions
-
000 to 999
Possible
Note 1: The block of Uu
1
can be omitted when the external settings in parameters SU103.
Address
Setting range
Description
SU103
0 to 6.5535 mm
0 to 0.65535 in
Cutting depth in the composite-type fixed cycle
Note 2: The block of Rr can be omitted when the external settings in parameters SU102.
Address
Setting range
Description
SU102
0 to 6.5535 mm
0 to 0.65535 in
Return distance in Z-axis
TEP130
u
2
/ 2
W
Tool path
Programmed contour
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
Serial No. 294060
