YAMAZAKI MAZAK VORTEX i Series User Manual

SUPPLEMENT 5
5-27

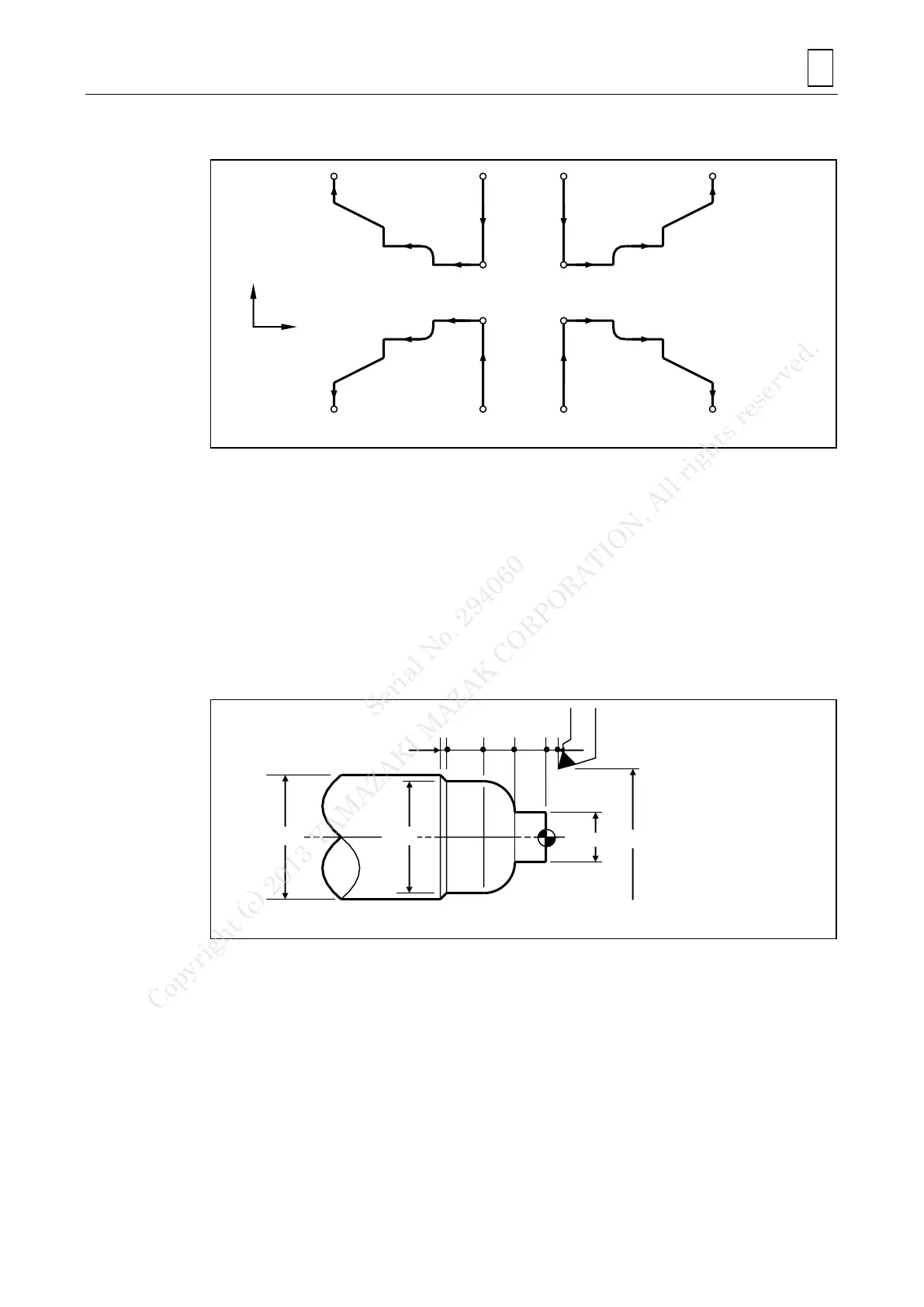

Note 3: Plus or minus signs of Uu
2
and Ww should be decided which to choose reference to
shape (A)-(B)-(C) shown in following figure.
2. Sample program
N001 G00 G96 G94
N002 G91 G28 X0 Z0
N003 G10.9X1
N004 G18 G90 X160. Z2.
N010 G271 U5. R1.
N011 G271 P012 Q016 U4.W2.F150 S150 M203
N012 G00 X60.S200
N013 G01 Z-30.F100
N014 G03 X120.Z-60.R30.
N015 G01 Z-100.
N016 X140.Z-110.
N017 G270 P012 Q016
N018 G91 G28 X0 Z0 M205
N019 M30
3. Notes
 The maximum permissible number of blocks for the finishing contour is 100, including
blocks automatically inserted by the NC.
Cutting depth: 5
Escape distance: 1
Finishing allowance X: 2
Z: 2
Unit: mm
2
10
40
30
30
140
120
60
160
Workpiece
TEP129
u > 0
w < 0
u > 0
w > 0
u < 0
w < 0
u < 0
w > 0
+X
+Z
(A)
(A)
(C)
(B)
(B)
(B)
(B)
(A)
(C)
(A)
(C)
(C)
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
Serial No. 294060
