2 MACHINE INFORMATION
2-4
3. INTEGREX i-V/VORTEX i-V

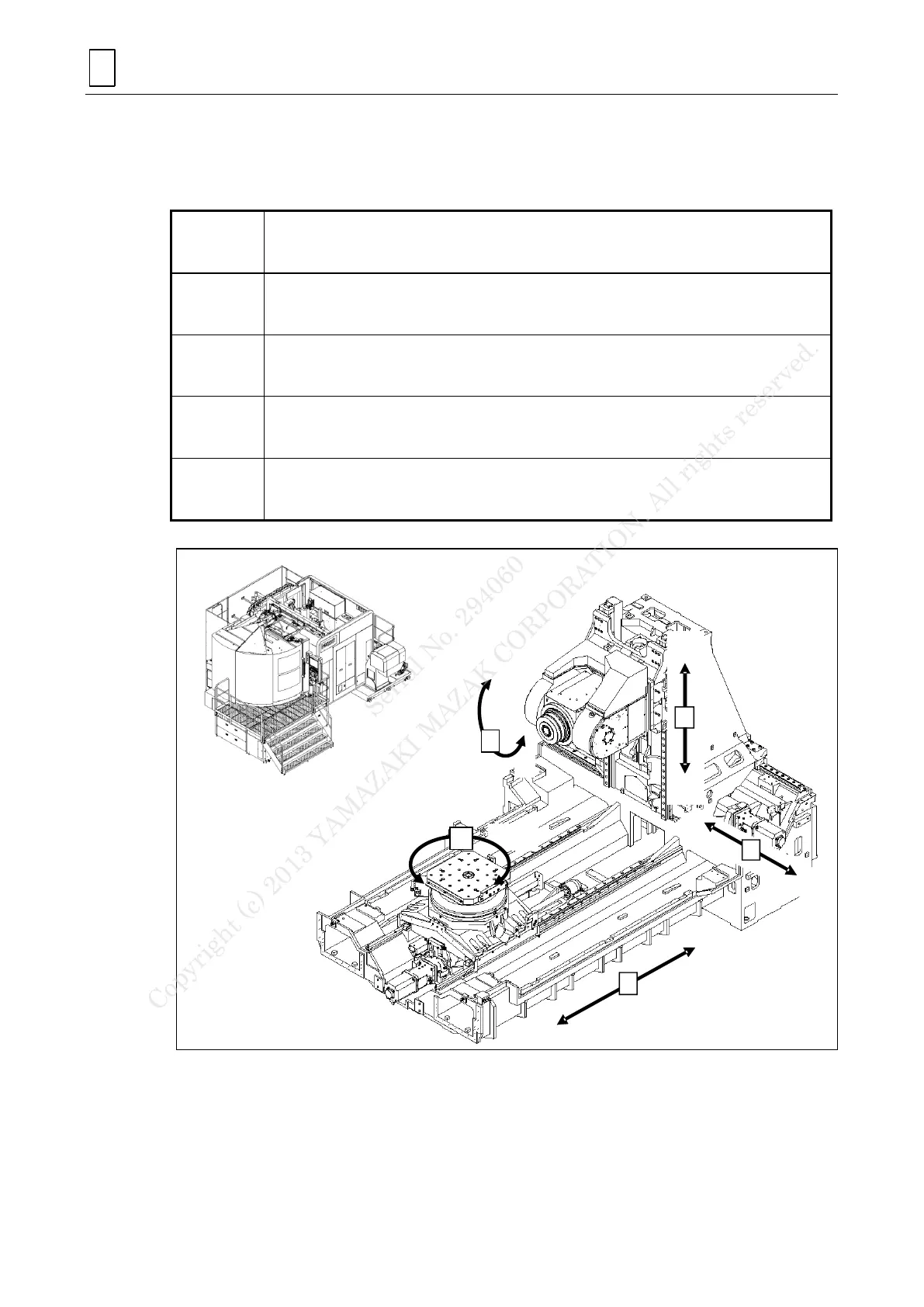

The axes of coordinates used for machine control are defined as follows:
Note: The axes of coordinates are defined with the operator standing and facing the front of
the machine.
X-axis
Axis of transverse motion of the table
“+” (plus) indicates the leftward direction;
-” (minus) indicates the rightward direction.
Y-axis
Axis of longitudinal motion of the milling spindle
“+” (plus) indicates the backward direction (to the rear);
-” (minus) indicates the forward direction (to the front).
Z-axis
Axis of vertical motion of the milling headstock
“+” (plus) indicates the upward direction;
-” (minus) indicates the downward direction.
B-axis
Rotation of the milling spindle
“+” (plus) indicates the right-hand rotation (CW);
-” (minus) indicates the left-hand rotation (CCW), as viewed from the operator door.
C-axis
Rotation of the table
“+” (plus) indicates the right-hand rotation (CW);
-” (minus) indicates the left-hand rotation (CCW), as viewed from above.
X
Z
Y
+
+
+
Rotation of
the spindle
Rotation of
the pallet
B
+
+
C
