YAMAZAKI MAZAK VORTEX i Series User Manual

4 MACHINING PROGRAM
4-8
2. Head selection

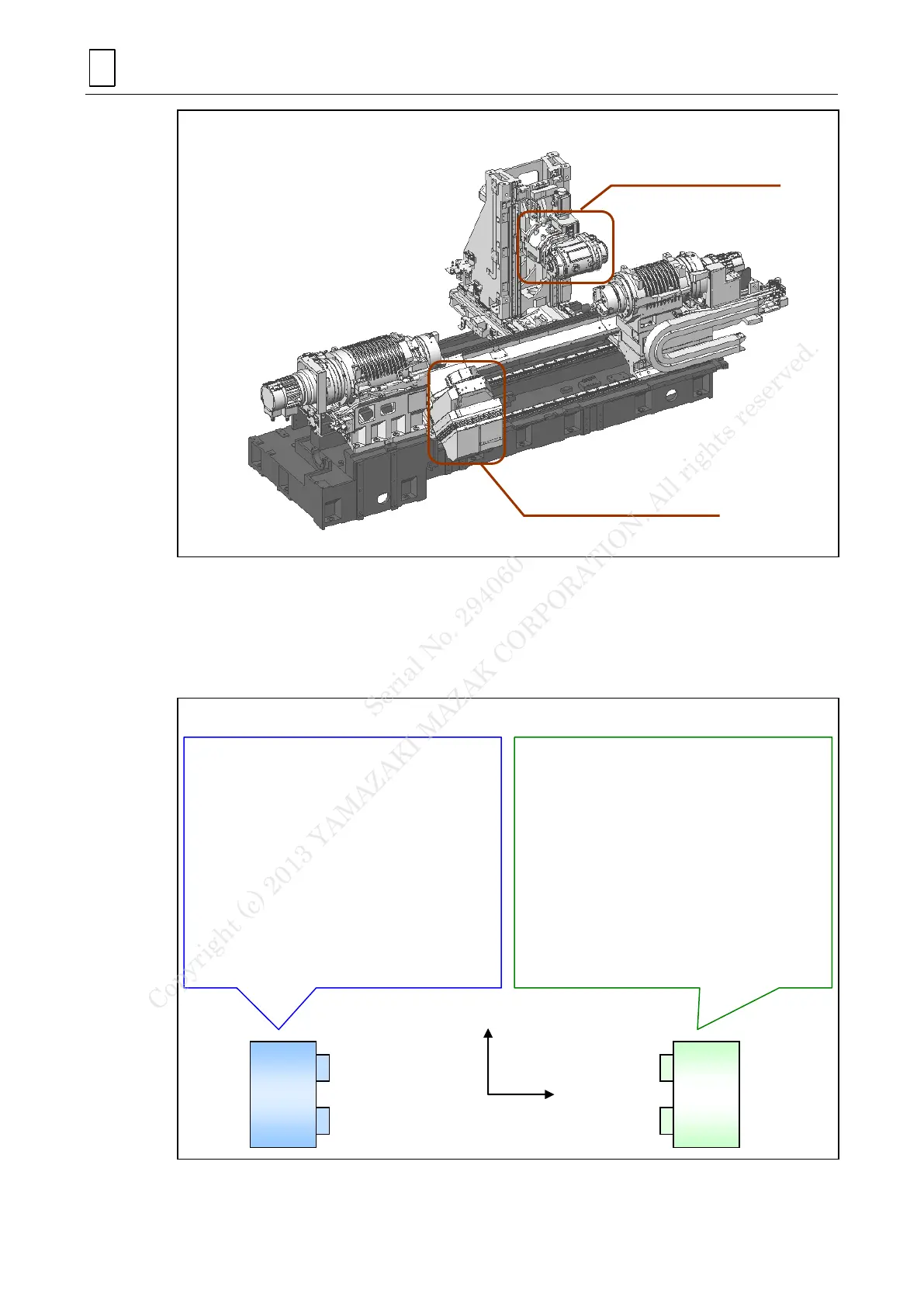

Select a head according to machining method.
Select milling-mode or turning-mode for the head.
Command a turning spindle clamp code if a milling-mode is selected.
* INTE i-V/e-V cannot issue M-codes for head selection (M901/M902).
HD1
HD2
X
Z
M901: HD1 spindle selection
M200: Turning spindle 1
C-axis connect/Milling mode select
M202: Turning spindle 1
C-axis disconnect/turning mode
select
M210: Turning spindle 1 C-axis clamping
M211: Turning spindle 1 C-axis braking
M212: Turning spindle 1 C-axis
unclamping
M902: HD2 spindle selection
M300: Turning spindle 2
C-axis connect/Milling mode select
M302: Turning spindle 2
C-axis disconnect/turning mode
select
M310: Turning spindle 2 C-axis clamping
M311: Turning spindle 2 C-axis braking
M312: Turning spindle 2 C-axis
unclamping
M-codes for Head selection
Upper turret
G109L1
Lower turret
G109L2
