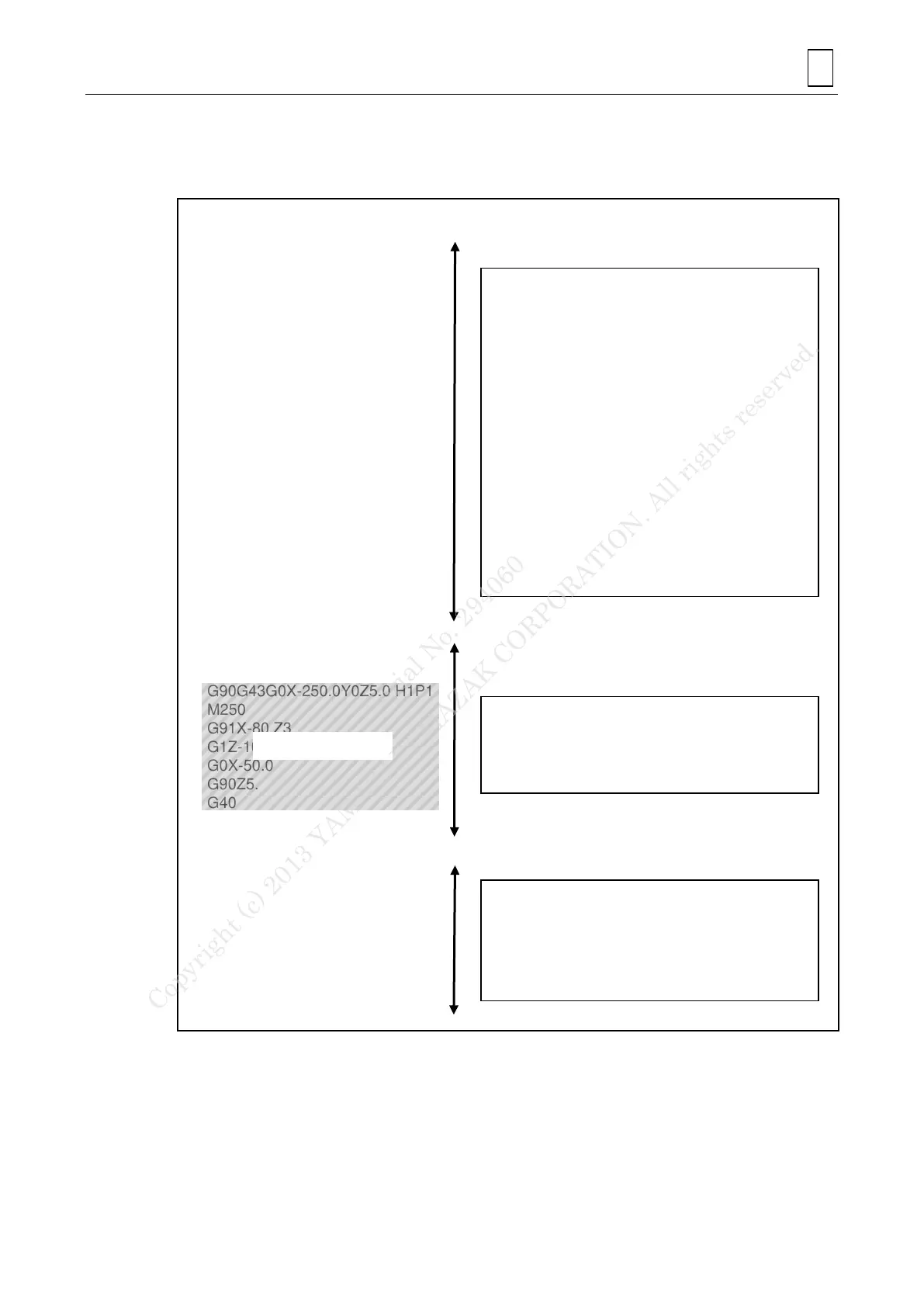

MACHINING PROGRAM 4
4-69
A. Parallel machining of HD1
This section explains how to make program (HD1- Parallel machining Balanced cutting).
1. Sample program
G109L1
M901
M202
G00G18G90G95G54G96
G40G49G80G67G69
G91G28X0
G28Z0
G28Y0
G28B0
M950
T001T002M06
G91G28X0
G28Y0
G28Z0
M108
G90G53B90.0
M107
G92S2500R1
G96M203S250R1
G10.9X1
M08
M951
M562
G90G43G0X-250.0Y0Z5.0 H1P1
M250
G91X-80.Z3.
G1Z-100.F0.25
G0X-50.0
G90Z5.
G40
M563
M952
M205
M953
M09
G91G28X0
G28Z0
G28Y0
G28B0
M30
Machining
(HD1- Parallel machining Balanced cutting (1/2))
jiku
Preparation motion for machining
G109L1: Upper turret selection
M901: HD1 spindle selection
M202: C-axis disconnect / turning mode
G95: Feed per revolution
G96: Constant surface speed control ON
T001M06: Tool change (TNo.01)
B-axis positioning
M107: B-axis clamping
G92S2500: Spindle speed range setting
G96S250: Surface speed 250 m/min
R1: Set the HD1
M203: Turning spindle1 forward rotation
G10.9X1: Diameter data input mode
M08: Flood coolant ON
Machining motion
M951: Waiting commands
M562 to M563: Balanced cutting
M952: Waiting commands
End motion for machining
M205: Turning spindle1 Rotation stop
M09: All coolants OFF
Each axis positioning to zero return
M30: Reset and rewind
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
