Note 3: Use F162 bit4 to select the number of digits for the tool function with lower turret. The
appropriate code (“000” or “00”) should be commanded after T-code depending on
setting the parameter.
Parameter
Description
F162 bit4
0: 4 digits in T-command for turning (T**00)
1: 6 digits in T-command for turning (T***000)
2. Sample program
 Milling tools
 Turning tools

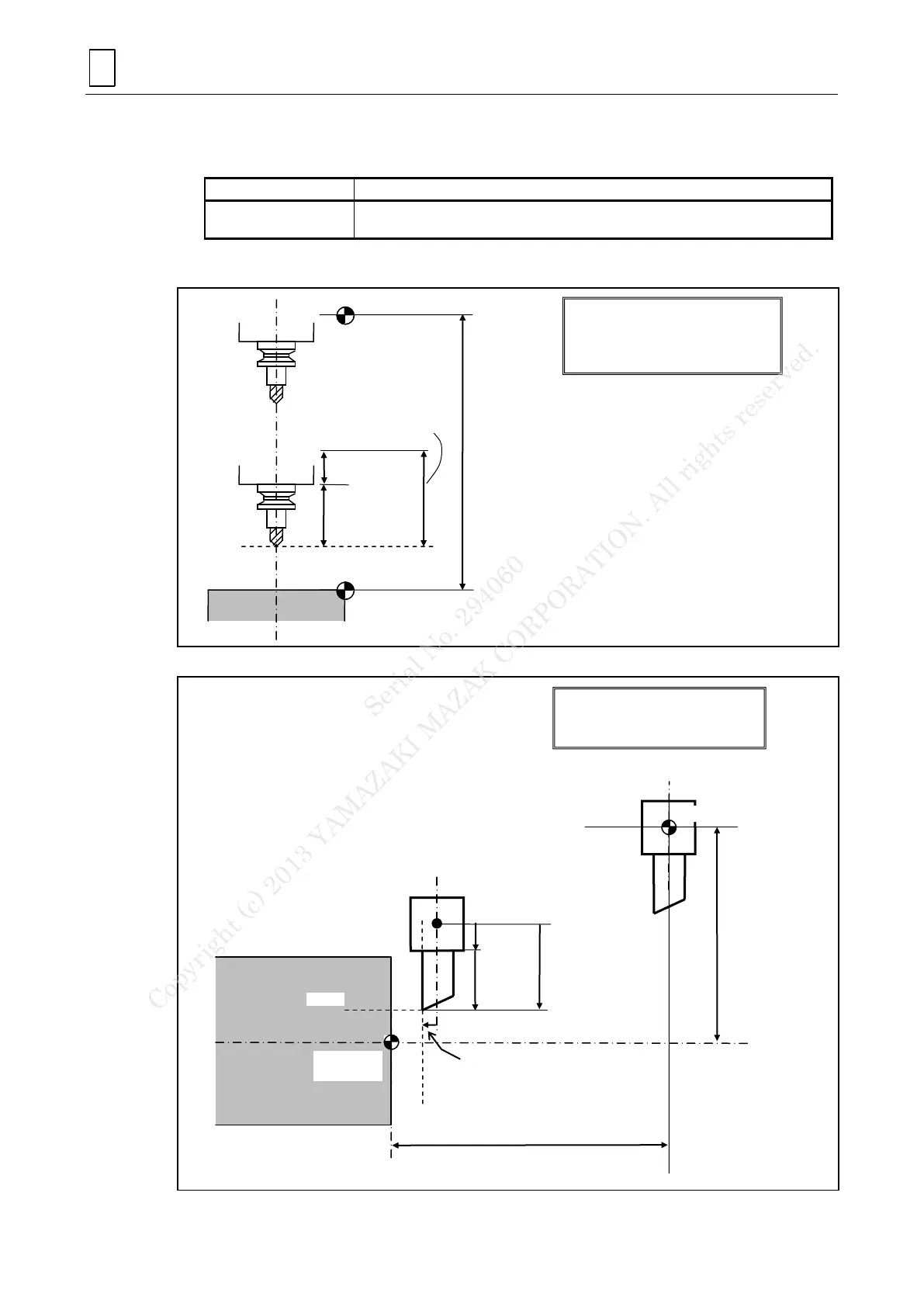

Workpiece coordinate Z
(G54)
Workpiece
zero point
+5.00
X
Z
Workpiece
coordinate X
(G54)
+10.0
0
LENGTH B=5.
= Z-axis length offset amount
X-axis length
offset amount
BA62
LENGTH A
= 95.
Machine zero point
LENGTH A = 95.
LENGTH B = –5.
N001 G90 G94 G00 G40 G80
N002 G91 G28 Z0
N003 T10.01 T00 M06
N005 G90 G54
N006 G00 X10. Z5.
N007 G01 Z-50. F100
Specified tool:
Next tool:
Tool number 10
ID code A
none
Offsetting values: (LENGTH = 95.)
N001 G90 G94 G00 G40 G80
N002 G91 G28 Z0
N003 T03.02 T02.00 M06
N004 G90 G54 X-100. Y0
N005 G0 Z5.
N006 G01 Z-50. F100
Machine zero point
Workpiece
coordinate Z
(G54)
Workpiece zero point
+5.00
Length offset amount
BA62
Specified tool:
Next tool:
Tool number 3
ID code B
Tool number 2
ID code none
T03: LENGTH
= 95.
Serial No. 294060
