MACHINING PROGRAM 4
4-85

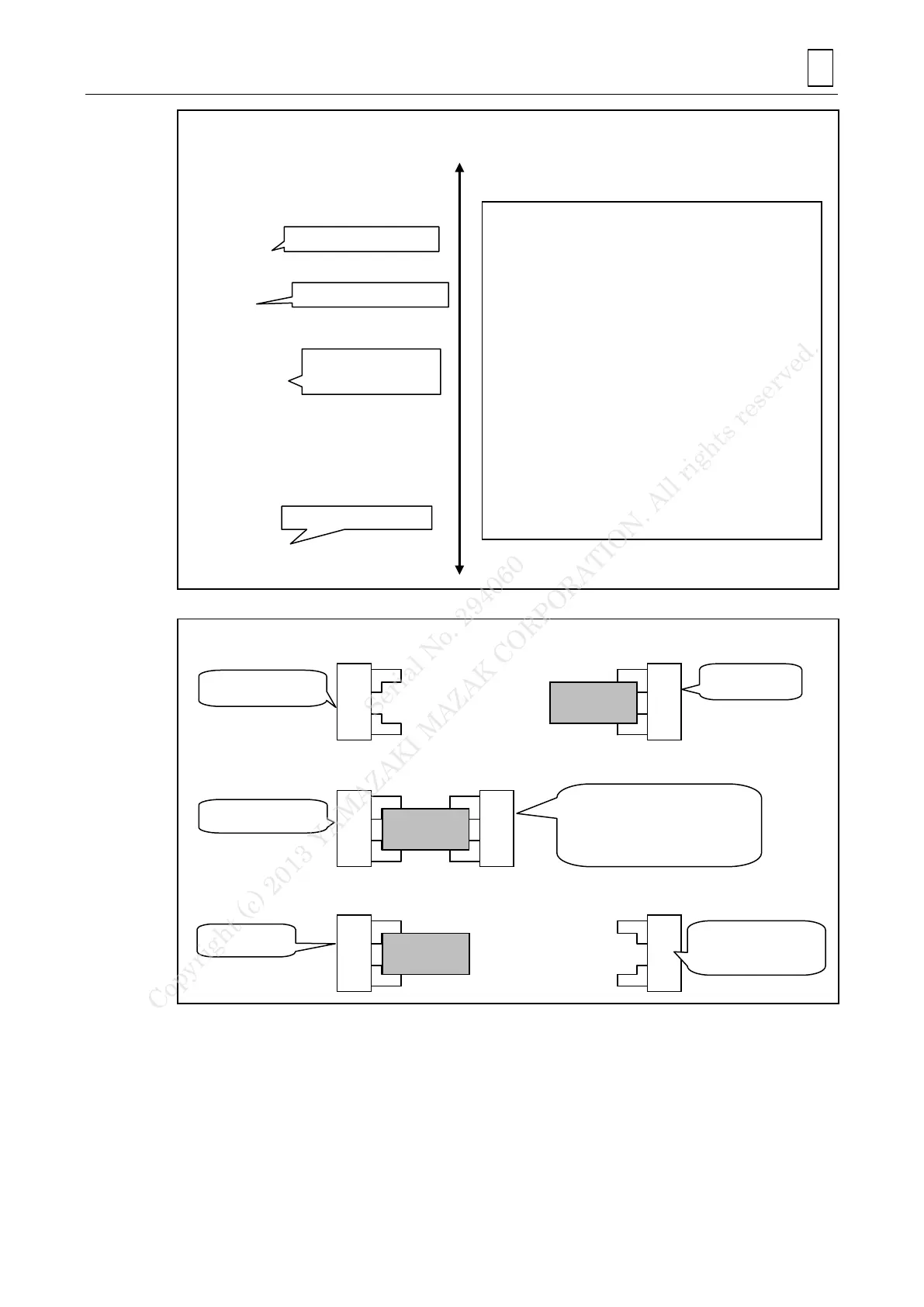

<Image> Transfer (HD2HD1)
Machining
Machining
W-axis positioning.
Pressing
Chuck open
Chuck open
Chuck close
W-axis
escape
G90
M902
M202
M300
G110C2
G00C30.
G111
M200
G00C90.
M206
M540
G00W-700.
M508
G91G31W-2.F50
M302
M509
M541
M207
M306
M202
G90G00W0.
M959
(Transfer a workpiece from HD2 to HD1)
jiku
Transfer of workpiece
M902: HD2 spindle selection
M202: C-axis disconnect / turning mode
M300: C-axis connect/Milling mode select
C1-axis positioning
M200: C-axis connect/Milling mode select
G110 to G111: C2-axis positioning
M206: Turning spindle 1 Chuck open
M540: TRANSFER mode ON
M508: Pressing setup
M509: Pressing setup Cancel
M541: TRANSFER mode OFF
M207: Turning spindle 1 Chuck close
M306: Turning spindle 2 Chuck open
W-axis escape
W axis pressing
position
W-axis escape
C2-axis positioning
C1-axis positioning
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
