YAMAZAKI MAZAK VORTEX i Series User Manual

SUPPLEMENT 5
5-35

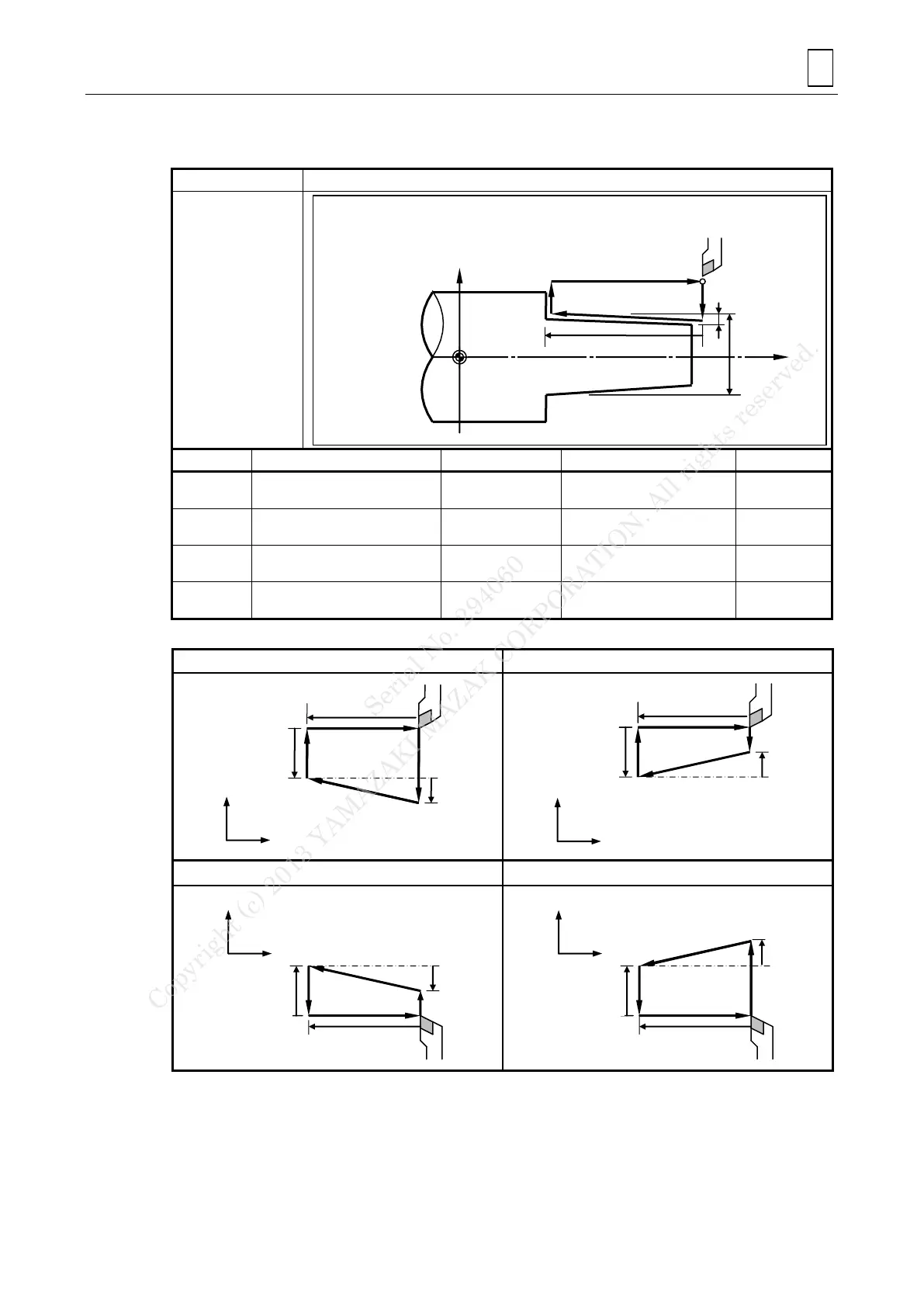

H. Fixed cycles for turning (Longitudinal turning cycle)
1. Command
Programming format
G290 Xx Zz Rr Ff
Function
Code value
Description
Unit
Setting range
Omit
x
Position of X-axis (Note)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Position of Z-axis (Note)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
r
Taper depth (Note)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible (0)
f
Rapid motion
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Impossible
Note: Depending on the signs of X, Z and R, the following shapes are created. (under G91)
[1] X < 0, Z < 0, R < 0
[2] X < 0, Z < 0, R > 0
[3] X > 0, Z < 0, R < 0
[4] X > 0, Z < 0, R > 0
X
X/2
Z
4
3
1
R
2
Z
X
Z
X/2
R
Z
4
3
2
1
Z
4
X/2
3
R
2
1
X
Z
X/2
Z
R
4
3
2
1
X
Z
TEP119’
(R): Rapid motion
(F): Cutting feed
R: Taper depth (incremental in radius value, with sign)
X-axis
Z-axis
Z
4(R)
3(F)
2(F)
1(R)
R
X
