MACHINING PROGRAM 4
4-47
4-5 End Motion for Machining
This section explains on “End motion for machining”.
4-5-1 Sample program
This is a sample program of the processing end operation.
See the following for more details.
4-5-2 End motion
This section explains End motion.
Program the following commands from 1. to 4.. Select the order of home return depending on the
machining method.
1. Rotation stop command
Stops the milling spindle/turning spindle.
Refer to the figure below for rotation stop M-codes .
Milling spindle (G109L1)
M05: Stop of milling spindle rotation
M03: Start of forward milling spindle rotation
M04: Start of backward milling spindle
rotation
Turning spindle 1
M205: Turning spindle 1 Rotation stop
M203: Turning spindle 1 Start of forward
rotation
M204: Turning spindle 1 Start of backward
rotation
Turning spindle 2
M305: Turning spindle 2 Rotation stop
M303: Turning spindle 2 Start of forward rotation
M304: Turning spindle 2 Start of backward
rotation
Milling spindle (G109L2)
M05: Stop of milling spindle rotation
M03: Start of forward milling spindle
rotation
M04: Start of backward milling spindle
rotation
M09
M05
G91G28Z0
G28X0
G28Y0
M108
G90G53B0
M30
M09
M205
G91G28Z0
G28X0
G28Y0
M108
G90G53B0
M30

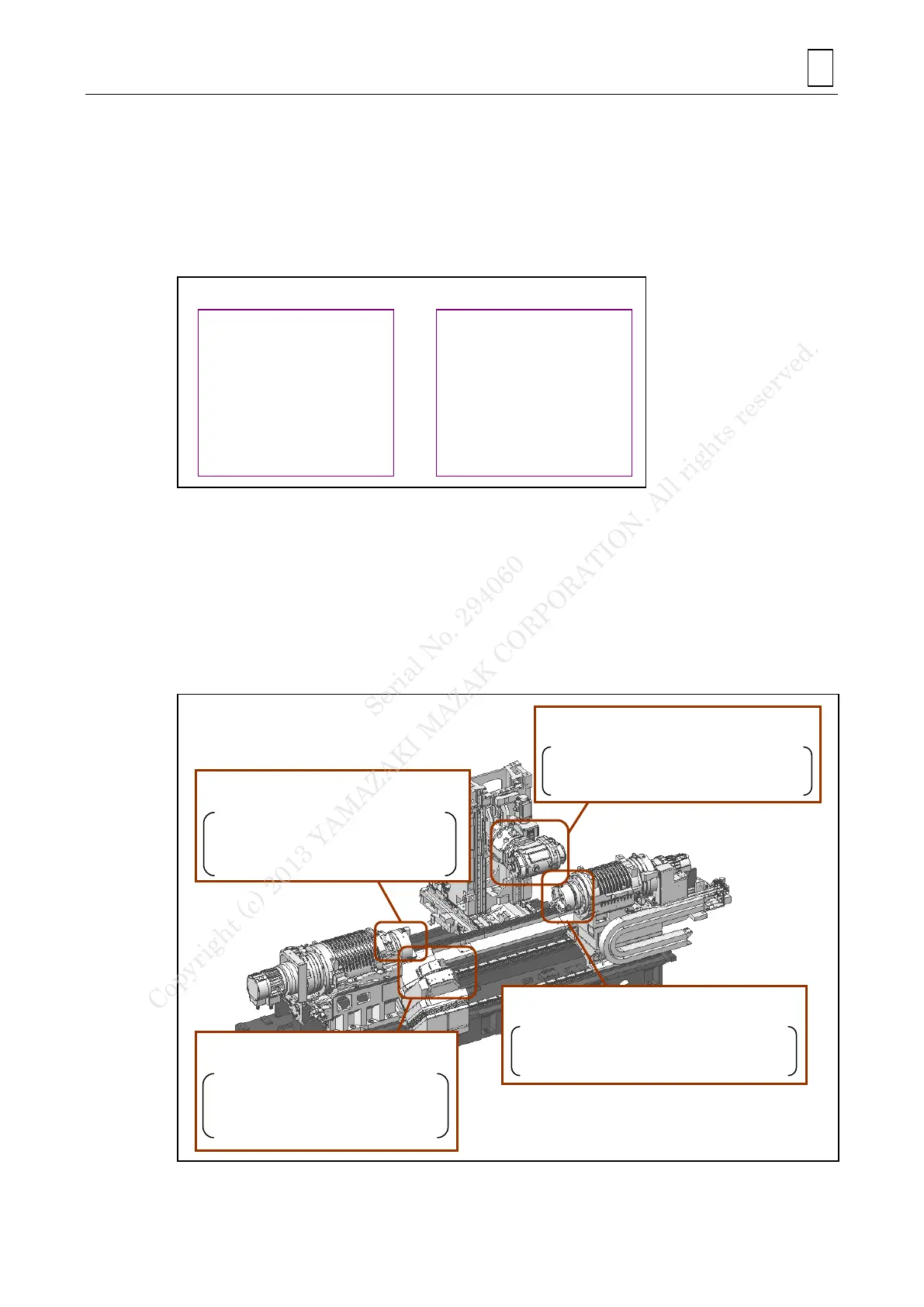

HD1 turning mode
Upper turret milling mode
