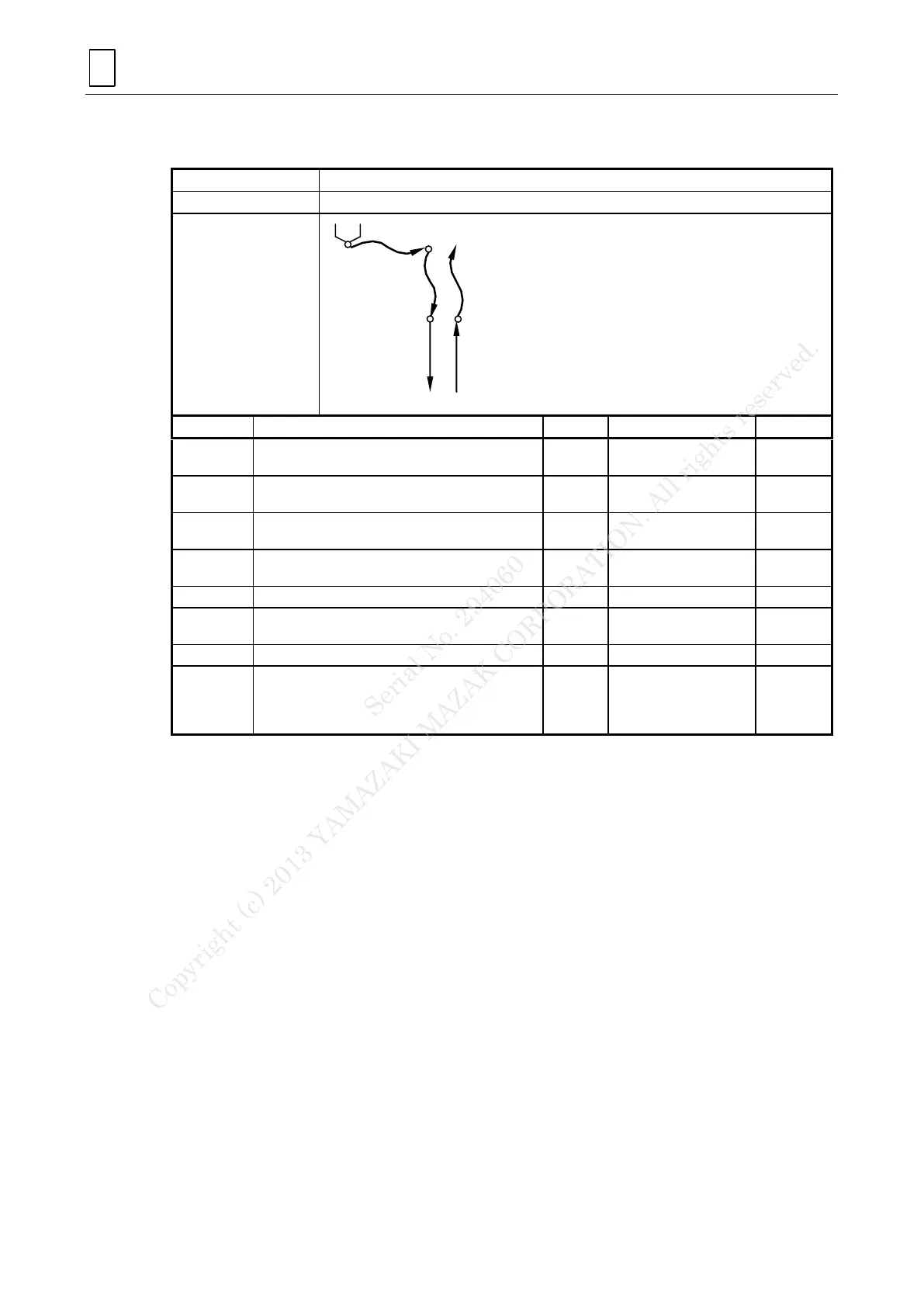

G. Hole machining fixed cycles (Face/outside boring cycle)
1. Command
Programming format
G285 Xx(Zz) Cc Zz(Xx) Rr Pp Ff Kk Mm
Cancellation
G80
Function
Code value
Description
Unit
Setting range
Omit
x (z)
Hole positioning data of X-axis (Z-axis)
(absolute/incremental value)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
c
Hole positioning data of C-axis
(absolute/incremental value)
°
0 to ±99999.9999
(0 to ±359.9999)
Possible
z (x)
Designation of hole bottom position
(absolute/incremental value from reference point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
r
Designation of R-point position
(incremental value from initial point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
p
Designation of dwell time at hole bottom point
1/1000 s
0 to 99999999
Possible
f
Designation of feed rate for cutting feed
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Possible
k
Designation of number of repetitions
times
0 to 9999
Possible
m
Designation of M-code
M(=Mm) is commanded at starting initial point.
M(=M[m+2]) is commanded at escaping initial
point.
M-code
address
210 (C-axis clamping)
Possible
Initial point
R-point (M)
Z point (P)
(M)
2f
f
