YAMAZAKI MAZAK VORTEX i Series User Manual

5 SUPPLEMENT
5-6

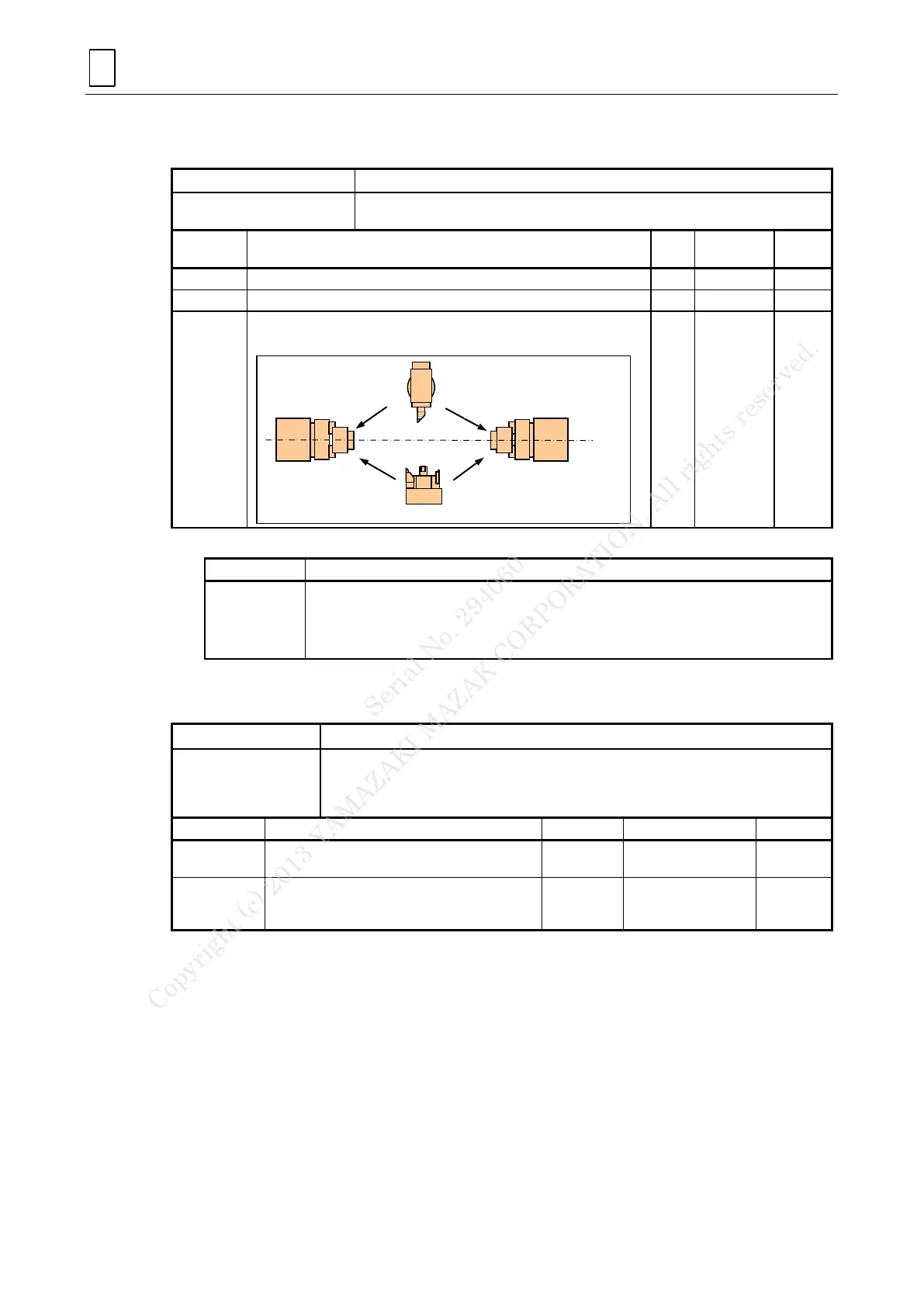

G. Spindle speed range setting
1. Command
Programming format
G92 Ss Qq Rr
Function
The code G92 can be used to set the maximum and minimum spindle speeds at
addresses S and Q, respectively.
Code
value
Description
Unit
Setting
range
Omit
s
Maximum spindle speed
min
-1
0 to 99999
q
Minimum spindle speed
min
-1
0 to 99999
r
Spindle for speed range setting
(R1: Turning spindle, R2: Turning spindle , R3: Milling spindle)
-
1, 2, 3
(Note)
Note: When R-command is omitted, the machine keeps to F32 setting.
Parameter
Description
F32
Select operation when argument R is omitted from the maximum/minimum spindle speed
setting.
0: Alarm
1: Handled as R1
H. Coordinate system setting
1. Command
Programming format
G92 Xx Yy Zz a
Function
A coordinate system can be set by giving a G92 command with the tool being positioned
as required. This coordinate system can be placed anywhere, but its zero point should
normally be set to a point in which the axis of rotation of the workpiece (as determined on
the X- and Y-axis) cuts its front face (as determined on the Z-axis).
Code value
Description
Unit
Setting range
Omit
x, y, z
Position in the coordinate system registered
with G92 (X, Y, Z-axis)
mm
in
±99999.9999 (mm)
±9999.99999 (in)
Possible

Position in the coordinate system registered
with G92 (Additional axis)
mm
in
°
±99999.9999 (mm)
±9999.99999 (in)
±99999.9999 (°)
Possible
D740PB006
Lower turret
Upper turret
R1
Turning spindle 2
Turning spindle 1
R2
R1
R2
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
Serial No. 294060
