YAMAZAKI MAZAK VORTEX i Series User Manual

SUPPLEMENT 5
5-21
(c) Moving in G43 (with lower turret)
In G43 mode, the offset value commanded with H-code (or T-code). A Parameter S23
is meant reference workpiece zero point.

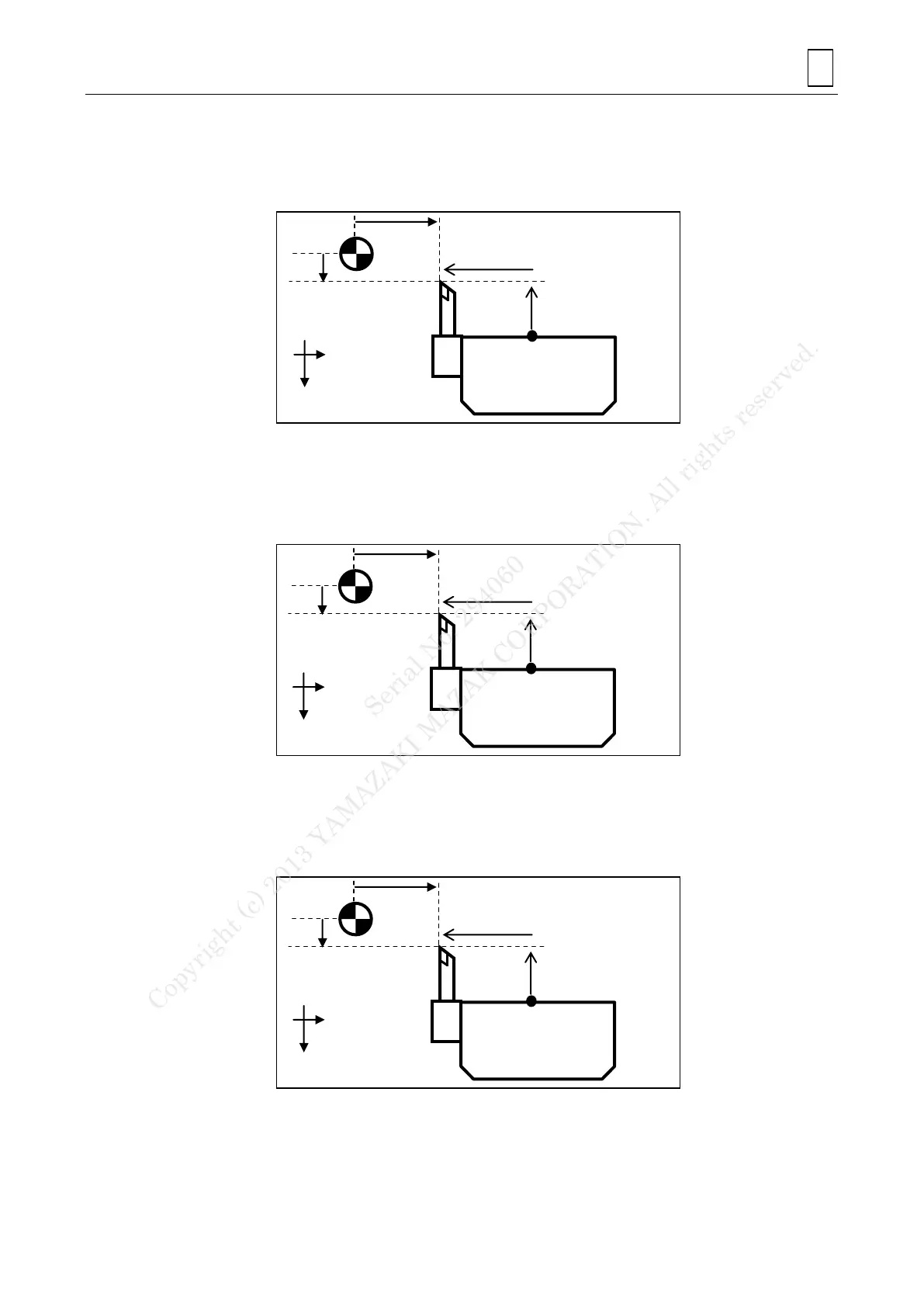

Example 1: TOOL OFFSET (F93 bit3 = 0, F94 bit7 = 0)
G54
T001000.02
G43 H1
G90 G00 X10. Z20.
:
--- Tool change
--- Tool length offset (Moving axes)
--- Axis motion command
Example 2: MAZATROL TOOL DATA (F93 bit3 = 1, F94 bit7 = 1)
G54
T001000.02
(G43)
G90 G00 X10. Z20.
:
--- Tool change
--- (Omissible: G43 is effective in axis motion command after T-code.)
--- Axis motion command
Example 3: TOOL OFFSET + MAZATROL TOOL DATA (F93 bit3 = 1, F94 bit7 = 0)
G54
T001000.02
G43 H1
G90 G00 X10. Z20.
:
--- Tool change
--- Tool length offset (Moving axes)
--- Axis motion command
10
20
TOOLSET Z - S23 (Z)
+ TOOL OFFSET (Z)
TOOLSET X - S23 (X)
+ TOOL OFFSET (X)
Z
X
X
Z
10
20
TOOLSET Z - S23 (Z)
TOOLSET X - S23 (X)
TOOL OFFSET (X)
20
X
Z
10
TOOL OFFSET (Z)
Serial No. 294060
