YAMAZAKI MAZAK VORTEX i Series User Manual

SUPPLEMENT 5
5-47

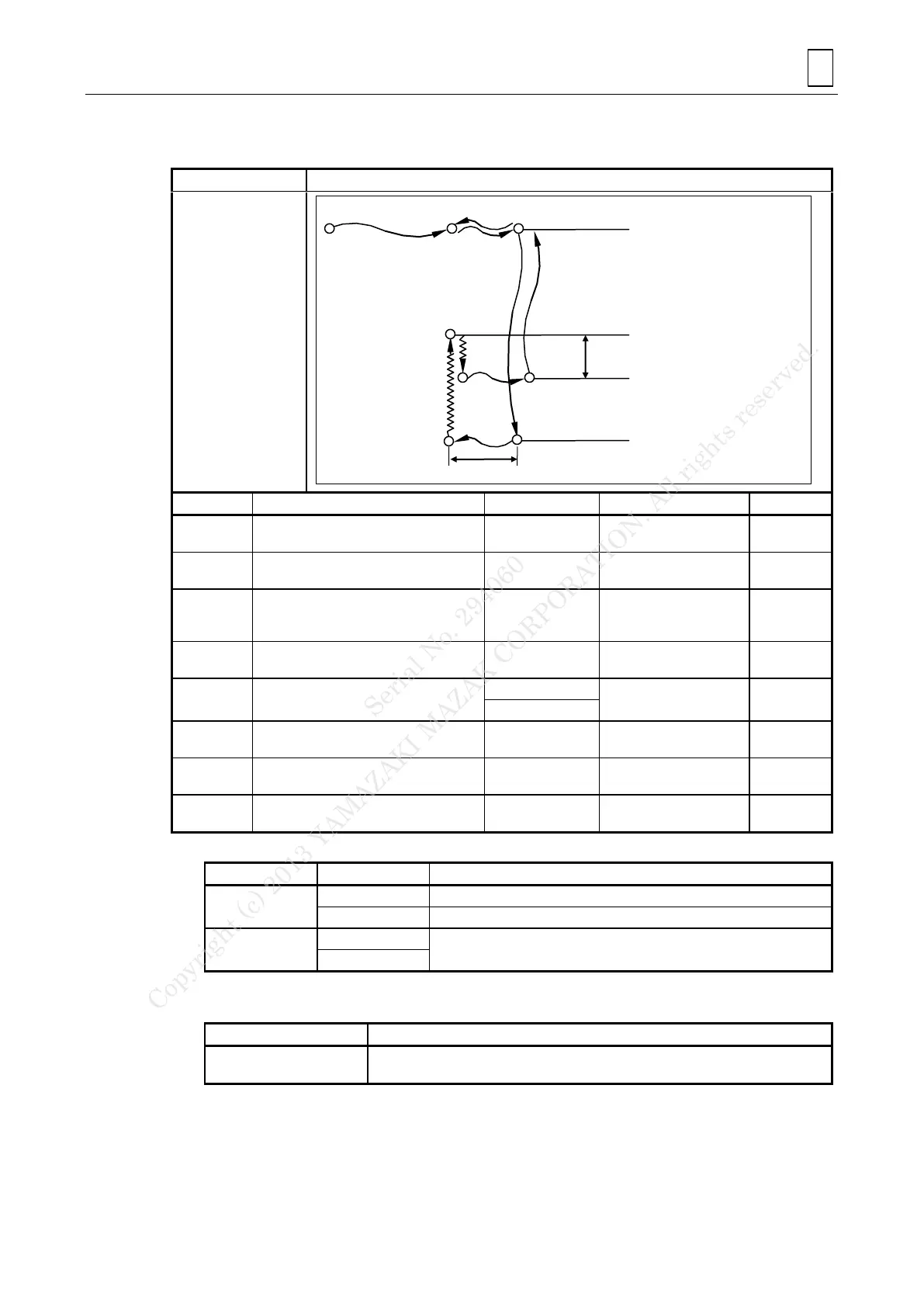

T. Fixed cycles (Back boring)
1. Command
Programming format
G87 Xx Yy Rr Zz Qq Pp Dd Ff Jj(Bb)
Function
Code value
Description
Unit
Setting range
Omit
x, y
Machining position (X, Y-axis)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
r
Designation of R-point position
(incremental value from initial point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Designation of hole bottom position
(absolute/incremental value from
reference point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
q
Amount of relief on the XY-plane
(Note 1)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
p
Dwell (in time or No. of revolutions)
1/1000 s (G94)
0 to 99999999
Possible
1/1000 rev (G95)
d
Distance from point Z
mm
in
0 to 99999.9999 (mm)
0 to 9999.99999 (in)
Possible
f
Feed rate
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Impossible
j (b)
(Note 2)
J0: M03 at R-point
J1: M04 at R-point
-
0, 1
Possible
Note 1: Direction determined by I14 bit3 and bit4.
I14 bit3
I14 bit4
Direction of the relief
0
0
Plus
1
Minus
1
0
Not relief
1
Note 2: Whether argument J or B is to be used depends on the value that has been set in F84
bit1.
Parameter
Description
F84 bit1
0: Argument B-command
1: Argument J-command
MEP155
M19
M03
q
M19
M03
d
Initial point
R-point
Point Z
Dwell
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
Serial No. 294060
