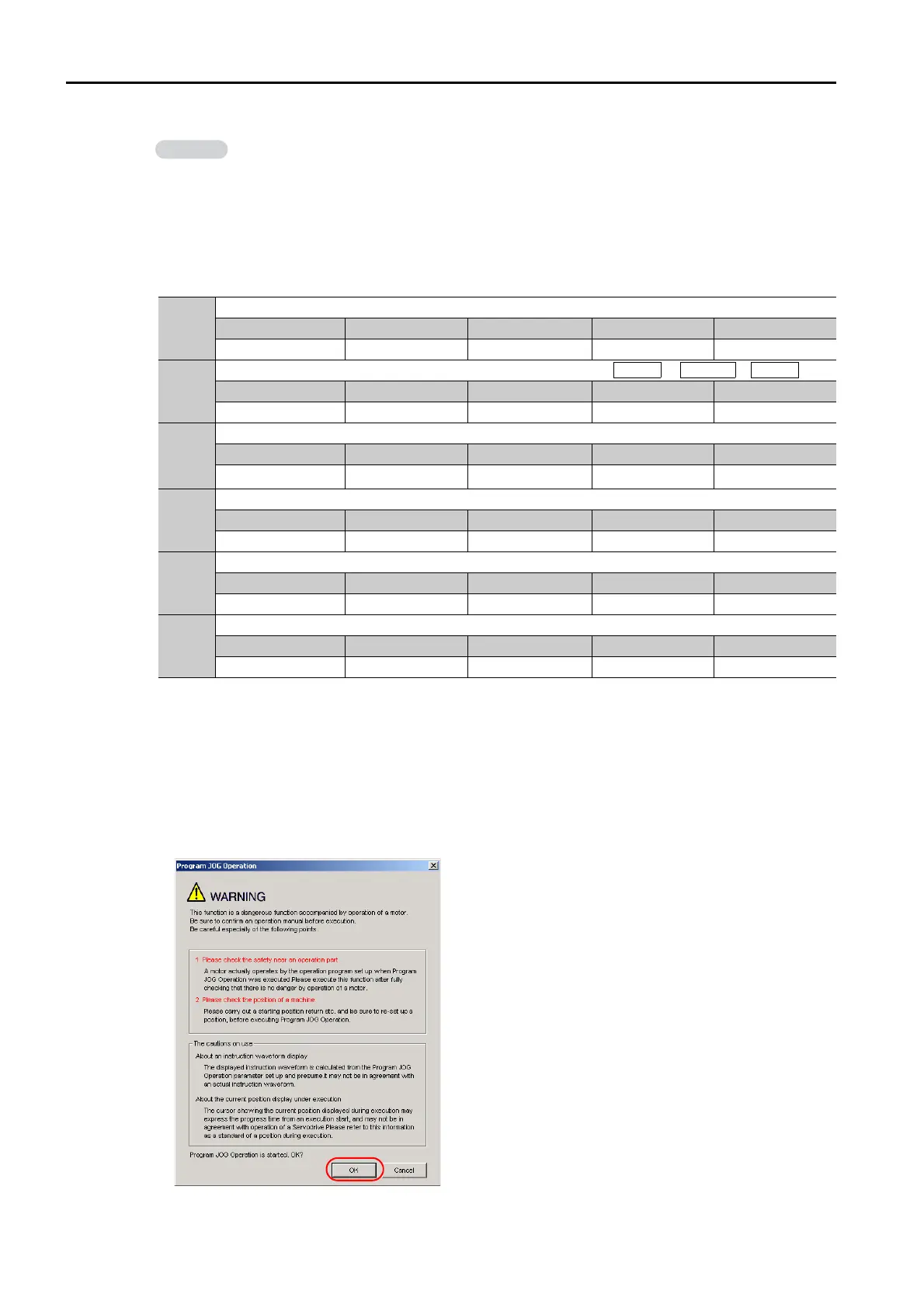

6.4 Convenient Function to Use during Trial Operation
6.4.1 Program Jog Operation
6-8
Related Parameters
Use the following parameters to set the program jog operation pattern. Do not change the set-
tings while the program jog operation is being executed.
Operating Procedure
Use the following procedure.
1.
Select Test Run - Program JOG Operation from the menu bar of the Main Window of
the SigmaWin+.
The Program Jog Operation Dialog Box will be displayed.
2.
Read the warnings and then click the OK Button.
If Pn530 is set to n.0, n.1, n.4, or n.5, you can set Pn536 (Program
Jog Number of Movements) to 0 to perform infinite time operation.
You cannot use infinite time operation if Pn530 is set to n.2 or n.3.
Pn530
Program Jog Operation-Related Selections
Setting Range Setting Unit Default Setting When Enabled Classification
0000 to 0005 − 0000 Immediately Setup
Pn531
Program Jog Travel Distance
Setting Range Setting Unit Default Setting When Enabled Classification
1 to 1,073,741,824 1 reference unit 1,024 Immediately Setup
Pn533
Program Jog Movement Speed
Setting Range Setting Unit Default Setting When Enabled Classification
1 to 10,000
1 min
-1
500 Immediately Setup
Pn534
Program Jog Acceleration/Deceleration Time
Setting Range Setting Unit Default Setting When Enabled Classification
2 to 10,000 1 ms 100 Immediately Setup
Pn535
Program Jog Waiting Time
Setting Range Setting Unit Default Setting When Enabled Classification
0 to 10,000 1 ms 100 Immediately Setup
Pn536
Program Jog Number of Movements
Setting Range Setting Unit Default Setting When Enabled Classification
0 to 1,000 1 1 Immediately Setup
To Next Page
