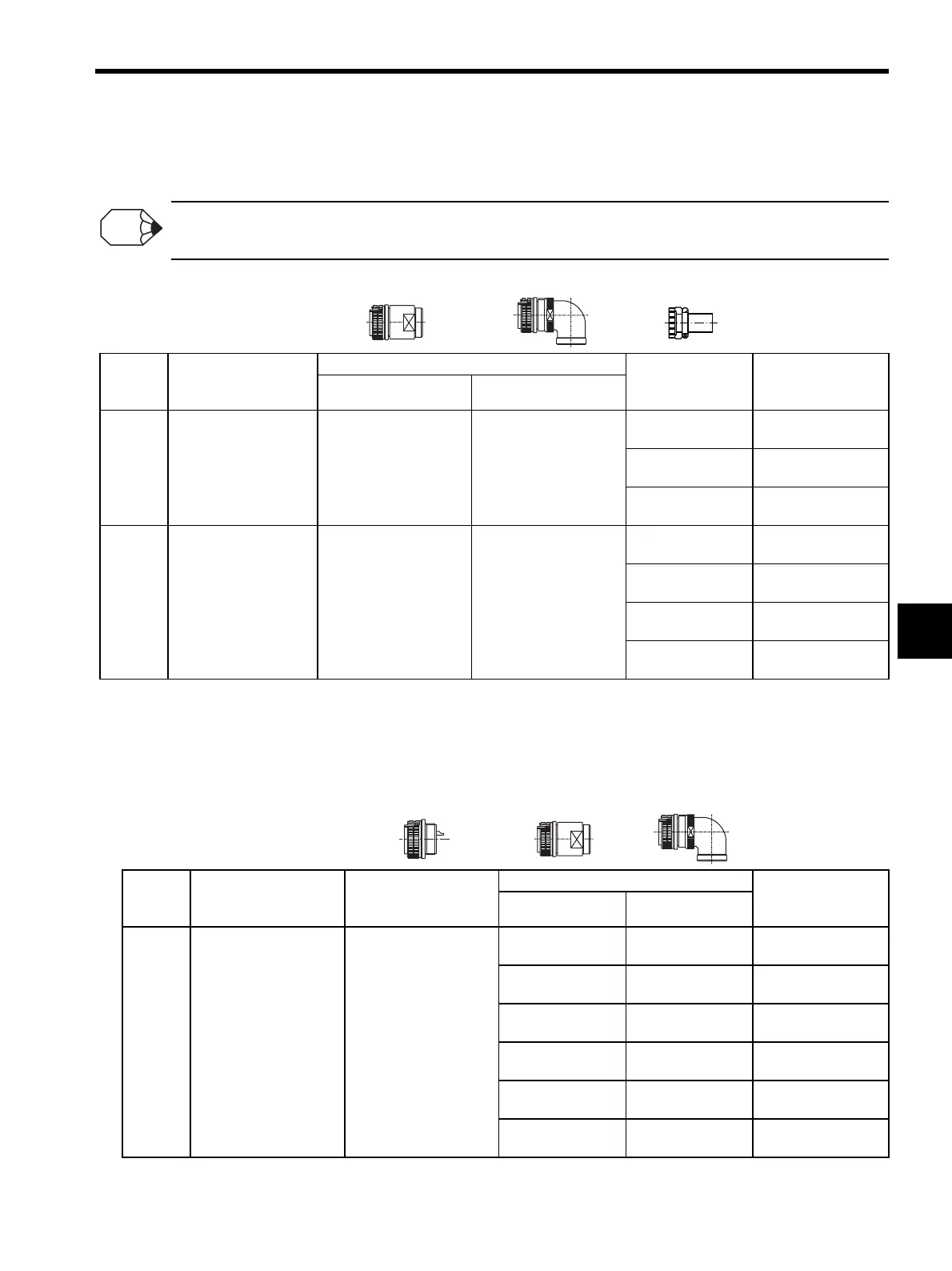

5.2 Servomotor Main Circuit Wire Size and Connectors
5-23
5
(2) 0.3 to 3.0 kW Servomotors With Holding Brakes
Select a cable clamp in accordance with the applied cable diameter.
The straight plug type JA06A-24-10S-J1-EB and L-shaped plug type JA08A-24-10S-J1-EB conform to IP67 Protective
Construction Standard only.
(3) 4.0 kW and 5.5 kW Servomotors With Holding Brakes
The servomotor end connector (a) and brake power supply connector (b) are required.
Select a conduit in accordance with the applied cable diameter.
(a) Servomotor-end Connector
INFO
Capacity
(kW)
Connector on
Servomotor
Plug
Cable Clamp
Applicable Cable
Range in mm (in)
(For reference)
Straight L-shaped
0.3
0.6
0.9
JL04V-2E20-15PE-B JL04V-6A20-15SE-EB JL04V-8A20-15SE-EB
JL04-2022CK(09)
φ 6.5 (φ0.26) to
φ 9.5 (φ0.37)
JL04-2022CK(12)
φ 9.5 (φ0.37) to
φ13.0 (φ0.51)
JL04-2022CK(14)
φ12.9 (φ0.51) to
φ15.9 (φ0.63)
1.2
2.0
3.0
JL04V-2E24-10PE-B
JL04V-6A24-10SE-EB
or
JA06A-24-10S-J1-EB
JL04V-8A24-10SE-EB
or
JA08A-24-10S-J1-EB
JL04-2428CK(11)
φ9.0 (φ0.35) to
φ12.0 (φ0.47)
JL04-2428CK(14)
φ12.0 (φ0.47) to
φ15.0 (φ0.59)
JL04-2428CK(17)
φ15.0 (φ0.59) to
φ18.0 (φ0.71)
JL04-2428CK(20)
φ18.0 (φ0.71) to
φ20.0 (φ0.79)
Capacity
(kW)
Connector on
Servomotor
Plug
Conduit Applicable Cable
Range in mm (in)
(For reference)
Straight L-shaped
4.0
5.5
JL04V-2E32-17PE-B
JL04V-6A32-
17SE
ACS-16RL-MS32F ACA-16RL-MS32F
φ12.0 (φ0.47) to
φ16.0 (φ0.63)
ACS-20RL-MS32F ACA-20RL-MS32F
φ16.0 (φ0.63) to
φ20.0 (φ0.79)
ACS-24RL-MS32F ACA-24RL-MS32F
φ20.0 (φ0.79) to
φ24.0 (φ0.94)
ACS-28RL-MS32F ACA-28RL-MS32F
φ24.0 (φ0.94) to
φ28.0 (φ1.10)
ACS-32RL-MS32F ACA-32RL-MS32F
φ28.0 (φ1.10) to
φ32.0 (φ1.26)
ACS-36RL-MS32F ACA-36RL-MS32F
φ32.0 (φ1.26) to
φ36.0 (φ1.42)
