5 Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.8.14 Variable Resistor for Speed and Torque Setting

5-80

5.8.14 Variable Resistor for Speed and Torque Setting

(1) Model: 25HP-10B

The multiturn type winding variable resistors with dial MD10-30B4 are manufactured by Sakae Tsushin Kogyo

Co., Ltd. Contact Yaskawa Controls Co., Ltd.

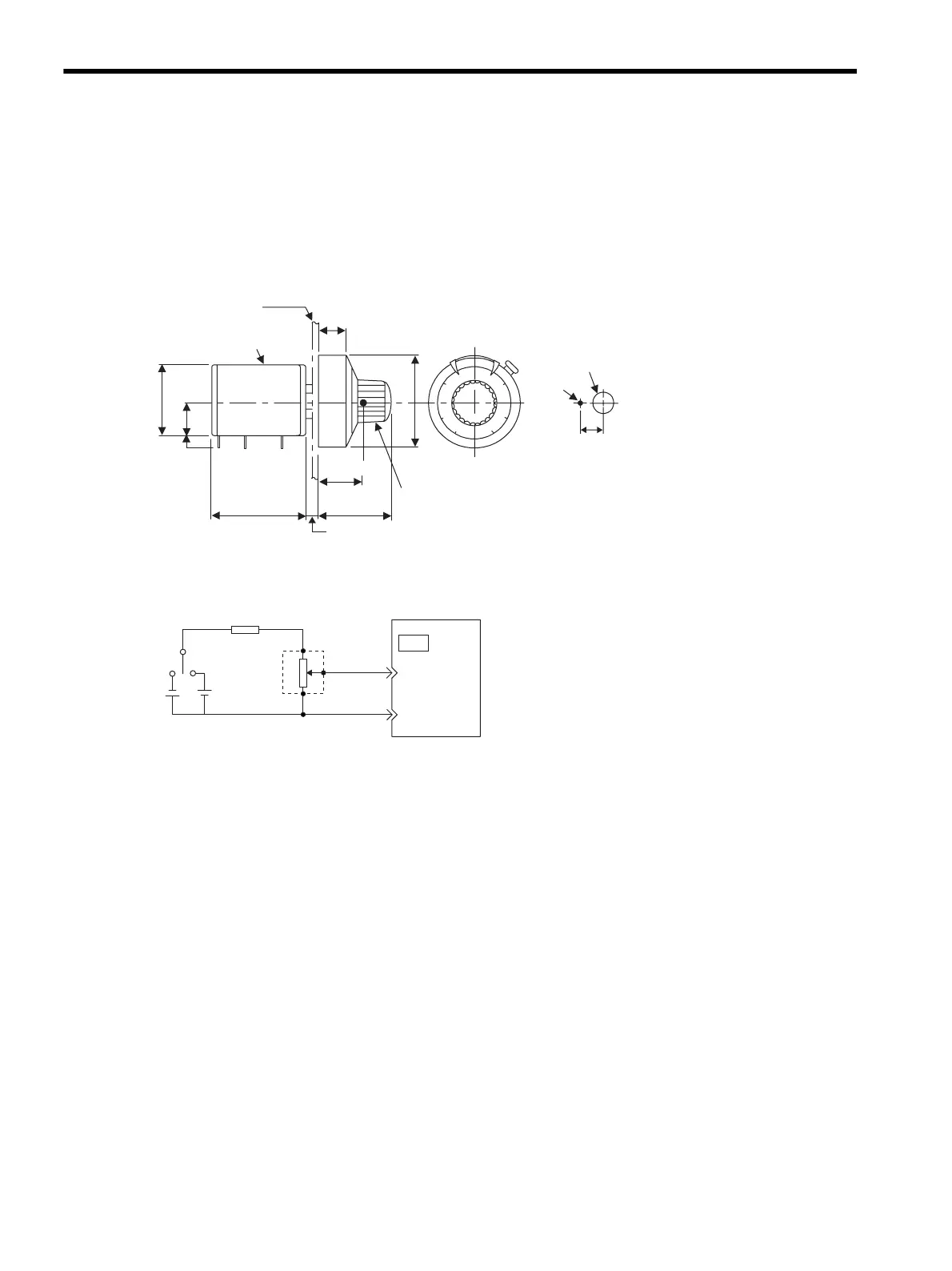

(2) Dimensional Drawings

(3) Example of Connection to an External Power Supply

MD multi-dial

25 HP Helicolumn

(Panel driling diagram)

Panel

11.5±1 (0.45±0.04)

37.5±1 (1.48±0.04)

24±1

(0.94±0.04)

14.5±1

(0.57±0.04)

φ25±1 (φ0.98±0.04)

φ31±1

(φ1.22±0.04)

21 (0.83) max.

23 1

4.5 (0.18)

φ2.5

(φ0.10)

hole

φ7.5 (φ0.30) hole

10 (0.39)

Units: mm (in)

12V

1.8 kΩ (1/2 W) min.

25HP-10B

2 kΩ

SERVOPACK

(9)

(10)

CN1

V-REF

(T-REF)
