YASKAWA SGDM Series User Manual

7 Digital Operator/Panel Operator
7.1.3 Basic Mode Selection and Operation
7-4
7.1.3 Basic Mode Selection and Operation
The basic modes include: Status display mode, Utility Function Mode, Parameter Setting Mode, and Monitor
Mode.
Select a basic mode to display the operation status, set parameters and operation references.

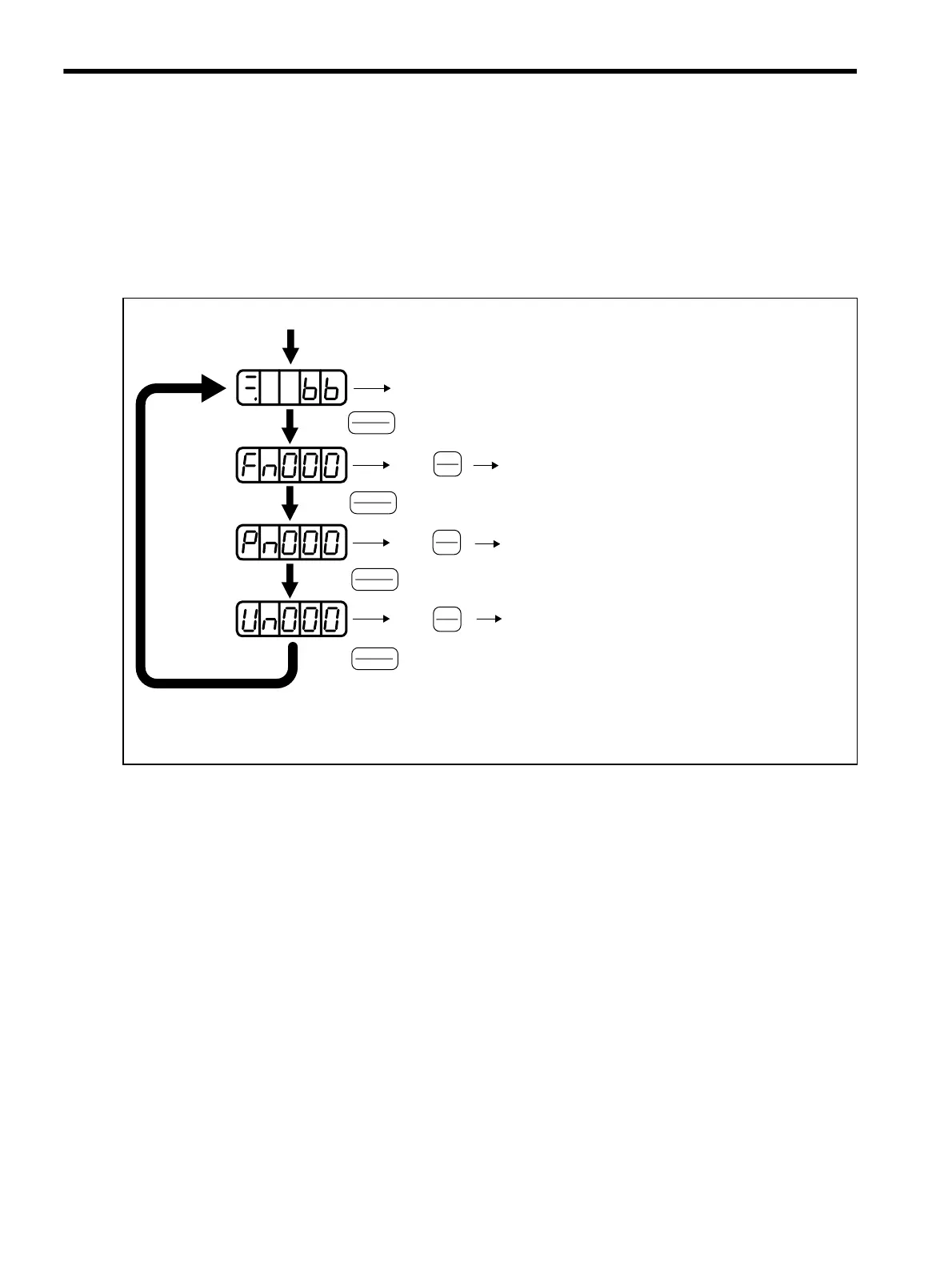

The basic mode is selected in the following order.
(1) Using the Digital Operator
Turn ON the power
Fn: Utility Function Mode
(Refer to 7.2)
Pn: Monitor Mode
(Refer to 7.4)
Press DSPL/SET Key.
A basic mode is selected in the following order.
Repeat
DATA
ENTER
DSPL
SET
Press DSPL/SET Key and UP or DOWN Key to select the desired parameter number.
Then, press DATA/ENTER Key to display the contents of selected parameter number
in the selected mode. (Refer to each operation instruction described later.)
Status Display Mode (Refer to 7.1.4)
Press .
Press .
DSPL
SET
Press .
DATA
ENTER
Press .
Pn: Parameter Setting Mode
(Refer to 7.3)
DSPL
SET
Press .
DSPL
SET
Press .
DATA
ENTER
Press .
