7.1 Functions on Digital Operator/Panel Operator
7-5
7
(2) Using the Panel Operator
Turn ON the power
Press DSPL/SET Key.

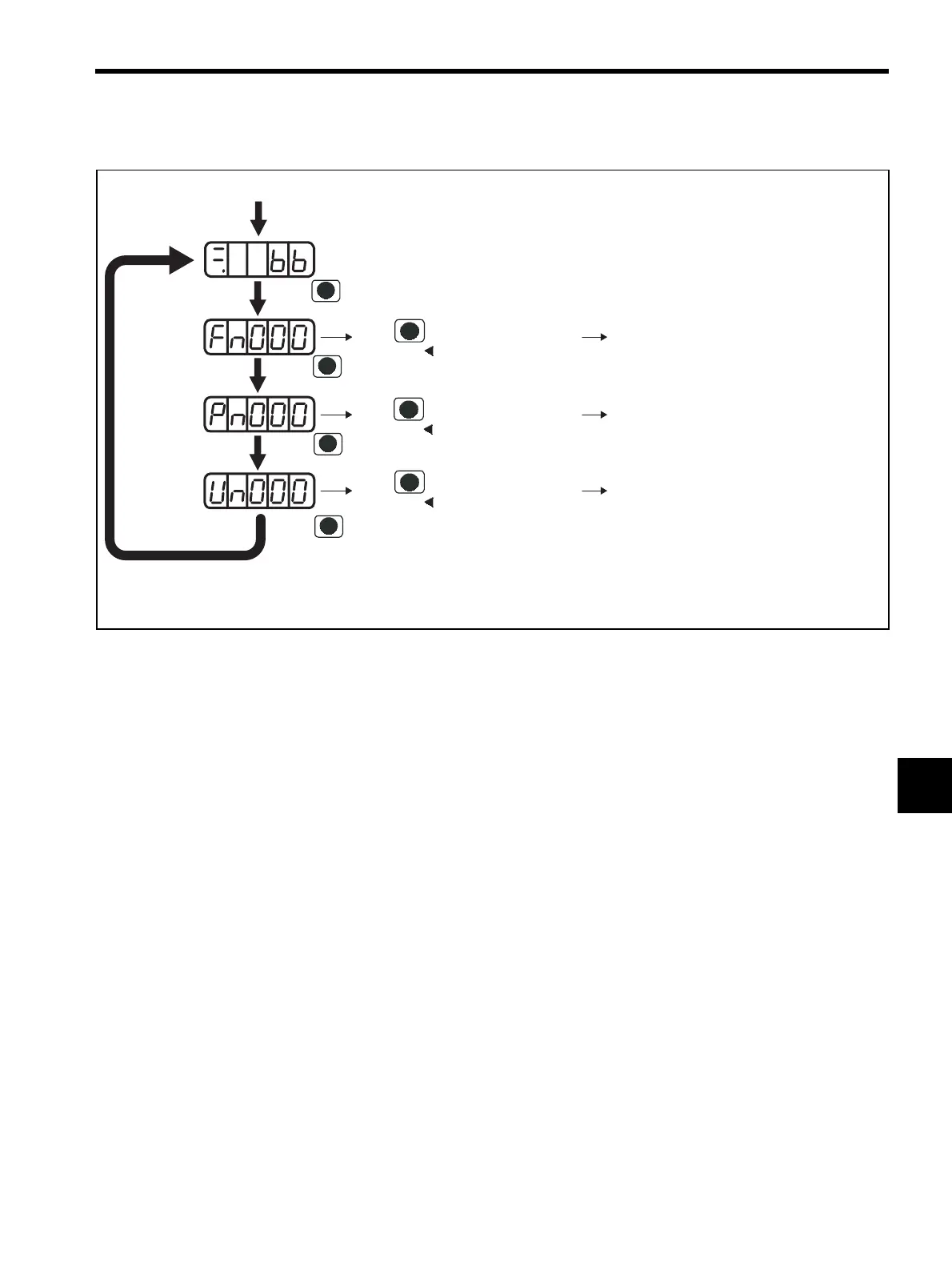

A basic mode is selected in the following order.
Repeat
Press DSPL/SET Key and UP or DOWN Key to select the desired parameter number.
Then, press DATA/SHIFT Key for more than one second to display the contents of selected
parameter number in the selected mode. (Refer to each operation instruction described later.)
Status Display Mode (Refer to 7.1.4)
Press .
Fn: Utility Function Mode (Refer to 7.2)
Pn: Parameter Setting Mode (Refer to 7.3)
Un: Monitor Mode (Refer to 7.4)
Press for more than one second.
Press for more than one second.
Press for more than one second.
DATA/
(DATA/SHIFT)
DATA/
(DATA/SHIFT Key)
DATA/
(DATA/SHIFT Key)
MODE/SET
Press .
MODE/SET
Press .
MODE/SET
Press .
MODE/SET
