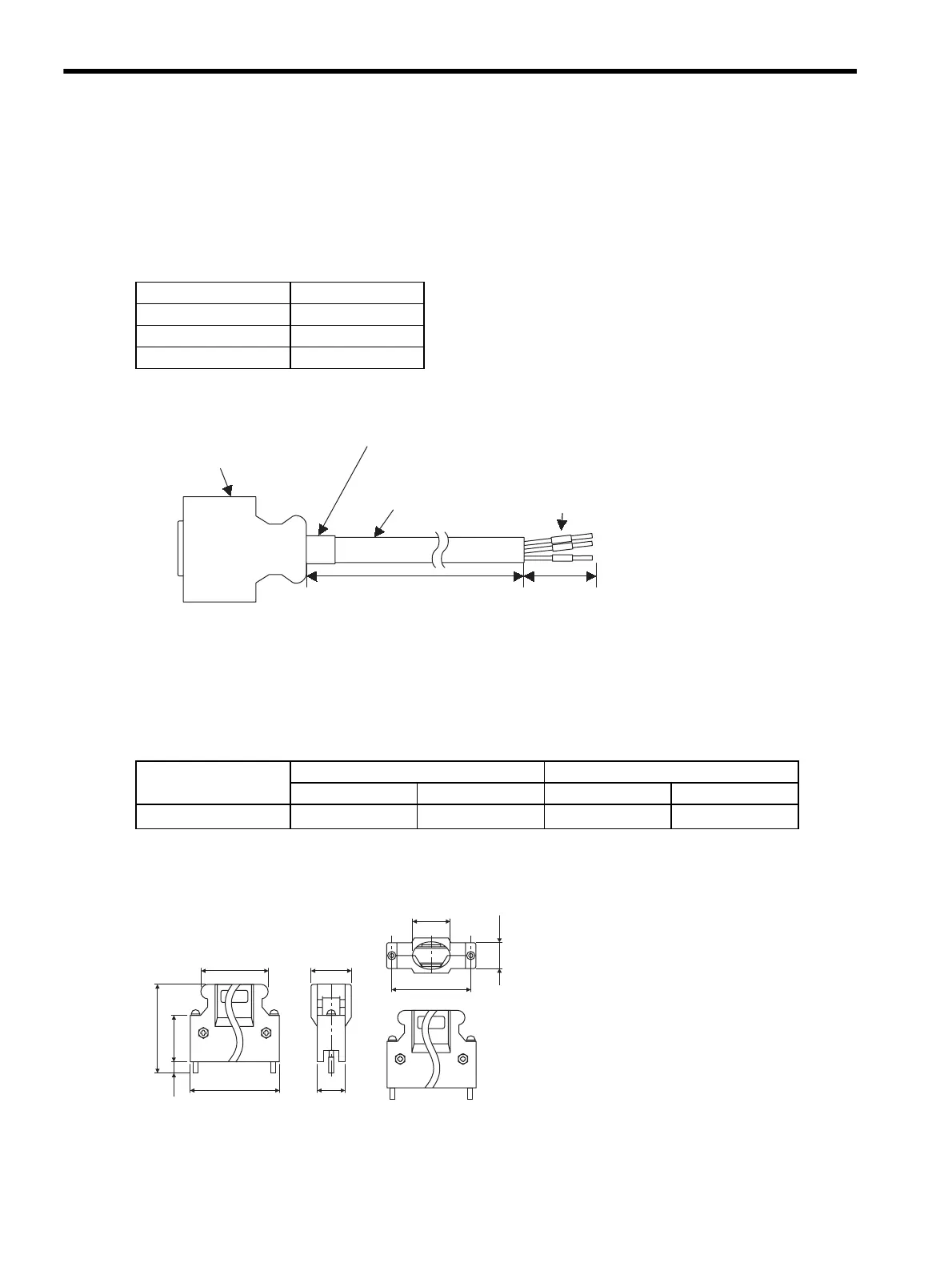

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.7.1 Standard Cables
5-54
5.7 I/O Signal Cables for CN1 Connector
5.7.1 Standard Cables
For the connection diagram, refer to 5.7.3 Connection Diagram.
(1) Cable Types
(2) Dimensional Drawing
* Manufactured by Sumitomo 3M Ltd.
5.7.2 Connector Type and Cable Size
Use the following connector and wire when assembling the cable. The CN1 connector includes a set of case and
a connector.
* Manufactured by Sumitomo 3M Ltd.
(1) Dimensional Drawing of Case
Cable Type Cable Length (L)
JZSP-CKI01-1
1 m (3.28 ft)
JZSP-CKI01-2
2 m (6.56 ft)
JZSP-CKI01-3
3 m (9.84 ft)
100 (3.94 )
+10
0
φ2.8 (φ0.11)
wire markers
L
Cable (black)
SSRFPVV-SB
Units: mm (in)
AWG#28 × 25P
UL20276 VW-1SC
Sleeve F2 (black)
SERVOPACK end
Connector: 10150-6000EL(50P)
∗
Shell: 10350-52A0-008
∗
+0.39
0
Connector Type
Case Connector
Type Qty Type Qty
JZSP-CKI9
10350-52A0-008
∗
1 set 10150-3000VE* 1
52.4 (2.06)
12.7
(0.50)
41.1 (1.62)
46.5 (1.83)
17.0 (0.67)Units: mm (in)
18.0
(0.71)
39.0 (1.54)
23.8 (0.94)
5.7
(0.22)
14.0
(0.55)
