5.8 Peripheral Devices
5-61
5
5.8.5 Brake Power Supply Unit
(1) Model: LPSE-2H01, LPDE-1H01
Manufactured by Yaskawa Controls Co., Ltd.
• 200 V input: LPSE-2H01
• 100 V input: LPDE-1H01
(2) Specifications
• Rated output voltage: 90 VDC
• Maximum output current: 1.0 ADC
• Lead wire length: 500 mm (19.69 in) each
• Maximum ambient temperature: 60°C (140 °F)
• Lead wires: Color coded. Refer to the table below.

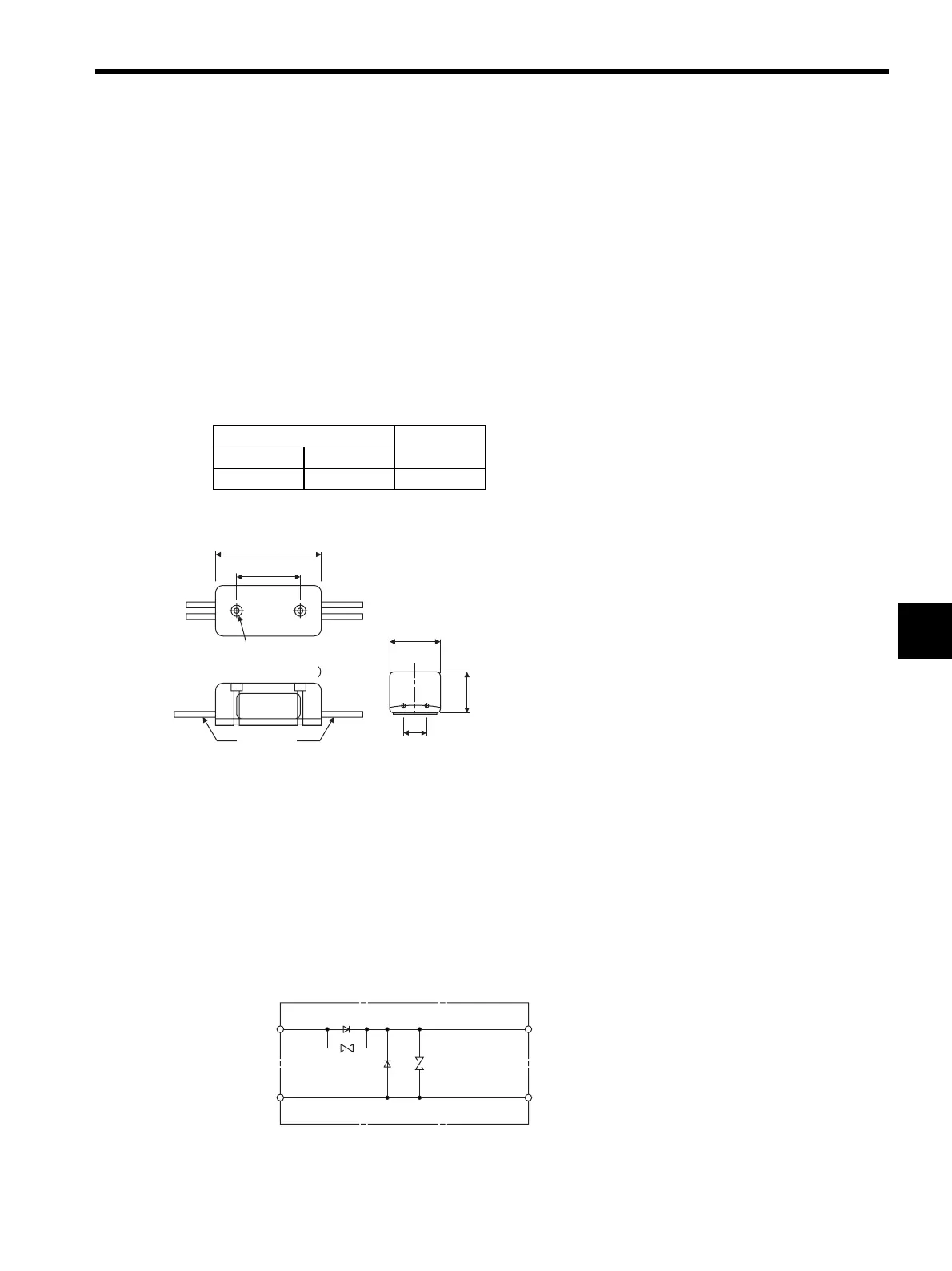

(3) Dimensional Drawing
(4) Internal Circuits
The brake power supply circuit can be opened and closed either on AC or DC side. However, if the wiring dis-
tance on DC side is too long, the brake circuit may not operate normally due to the influence of switching noises.
When switching the circuit on AC side, install a surge suppressor model CR50500BL for the brake power supply
near the brake coil to reduce the influence of switching noises.
When switching the circuit on DC side, the influence of the switching noise is minimal, even without installing a
surge suppressor. However, the surge voltage at switching may damage the brake coil. Install a surge suppressor
near the brake coil to prevent the damage to the brake coil in addition to the built-in surge suppressor.
(a) Internal Circuit for 200 VAC
Brake Power Supply Model: LPSE-2H01
AC Input End
Brake End
100 V 200 V
Blue/White Yellow/White Red/Black
2 Mounting holes φ3 (0.12)
(Spot facing φ5.5 (0.22)
and 4 (0.16) long
30 (1.18)
25 (0.98)
Units: mm (in)
Nameplate
50 (1.97)
11 (0.43)
20 (0.79)
Lead wire
Yellow
White
Red
Black
AC side
180 to 230 V
Diode
Surge suppressor
DC (Brake) side
No polarity
Surge suppressor
