5.2 Servomotor Main Circuit Wire Size and Connectors
5-19
5

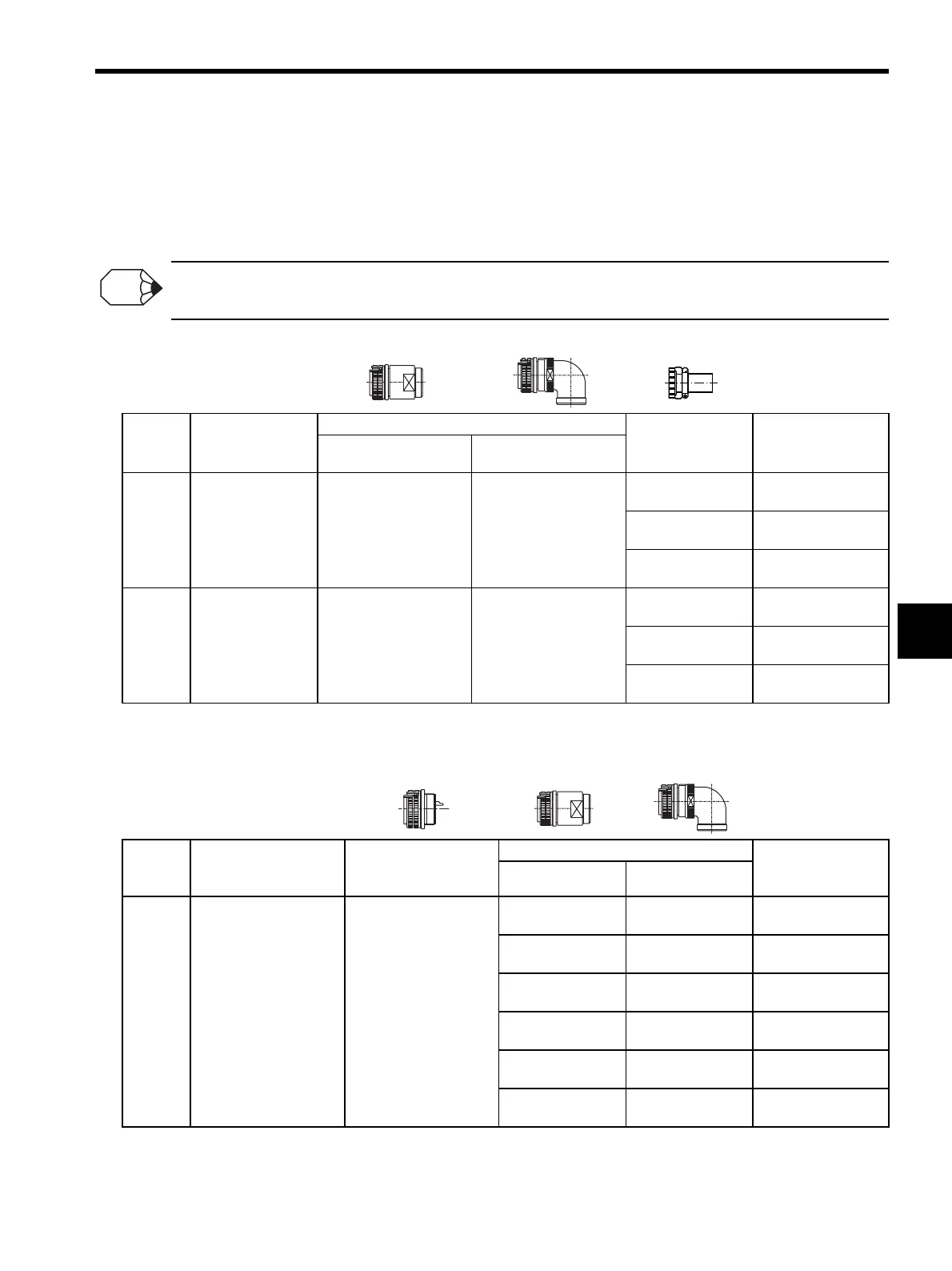

5.2.8 SGMGH Servomotor (1500 min
-1
) Connectors Conforming to IP67 and
European Safety Standards
(1) 0.45 to 4.4 kW Servomotors Without Holding Brakes
Select a cable clamp in accordance with the applied cable diameter.
The straight plug type JA06A-22-22S-J1-EB and L-shaped plug type JA08A-22-22S-J1-EB conform to the IP67 Protec-
tive Construction Standard only.
(2) 5.5 to 15.0 kW Servomotors Without Holding Brakes
Select a conduit in accordance with the applied cable diameter.
INFO
Capacity
(kW)
Connector on
Servomotor
Plug
Cable Clamp
Applicable Cable
Range in mm (in)
(For reference)
Straight L-shaped
0.45
0.85
1.3
CE05-2A18-
10PD-B
CE05-6A18-10SD-
B-BSS
CE05-8A18-10SD-
B-BAS
CE3057-10A-1
φ10.5 (φ0.41) to
φ14.1 (φ0.56)
CE3057-10A-2
φ 8.5 (φ0.33) to
φ11.0 (φ0.43)
CE3057-10A-3
φ 6.5 (φ0.26) to
φ 8.7 (φ0.34)
1.8
2.9
4.4
JL04HV-2E22-
22PE-B
JL04V-6A22-22SE-EB
or
JA06A-22-22S-J1-EB
JL04V-8A22-22SE-EB
or
JA08A-22-22S-J1-EB
JL04-2022CK(09)
φ 6.5 (φ0.26) to
φ 9.5 (φ0.37)
JL04-2022CK(12)
φ 9.5 (φ0.37) to
φ13.0 (φ0.51)
JL04-2022CK(14)
φ12.9 (φ0.51) to
φ15.9 (φ0.63)
Capacity
(kW)
Connector on
Servomotor
Plug
Conduit Applicable Cable
Range in mm (in)
(For reference)
Straight L-shaped
5.5
7.5
11.0
15.0
JL04V-2E32-17PE-B JL04V-6A32-17SE
ACS-16RL-MS32F ACA-16RL-MS32F
φ12.0 (φ0.47) to
φ16.0 (φ0.63)
ACS-20RL-MS32F ACA-20RL-MS32F
φ16.0 (φ0.63) to
φ20.0 (φ0.79)
ACS-24RL-MS32F ACA-24RL-MS32F
φ20.0 (φ0.79) to
φ24.0 (φ0.94)
ACS-28RL-MS32F ACA-28RL-MS32F
φ24.0 (φ0.94) to
φ28.0 (φ1.10)
ACS-32RL-MS32F ACA-32RL-MS32F
φ28.0 (φ1.10) to
φ32.0 (φ1.26)
ACS-36RL-MS32F ACA-36RL-MS32F
φ32.0 (φ1.26) to
φ36.0 (φ1.42)
