5.2 Servomotor Main Circuit Wire Size and Connectors

5-17

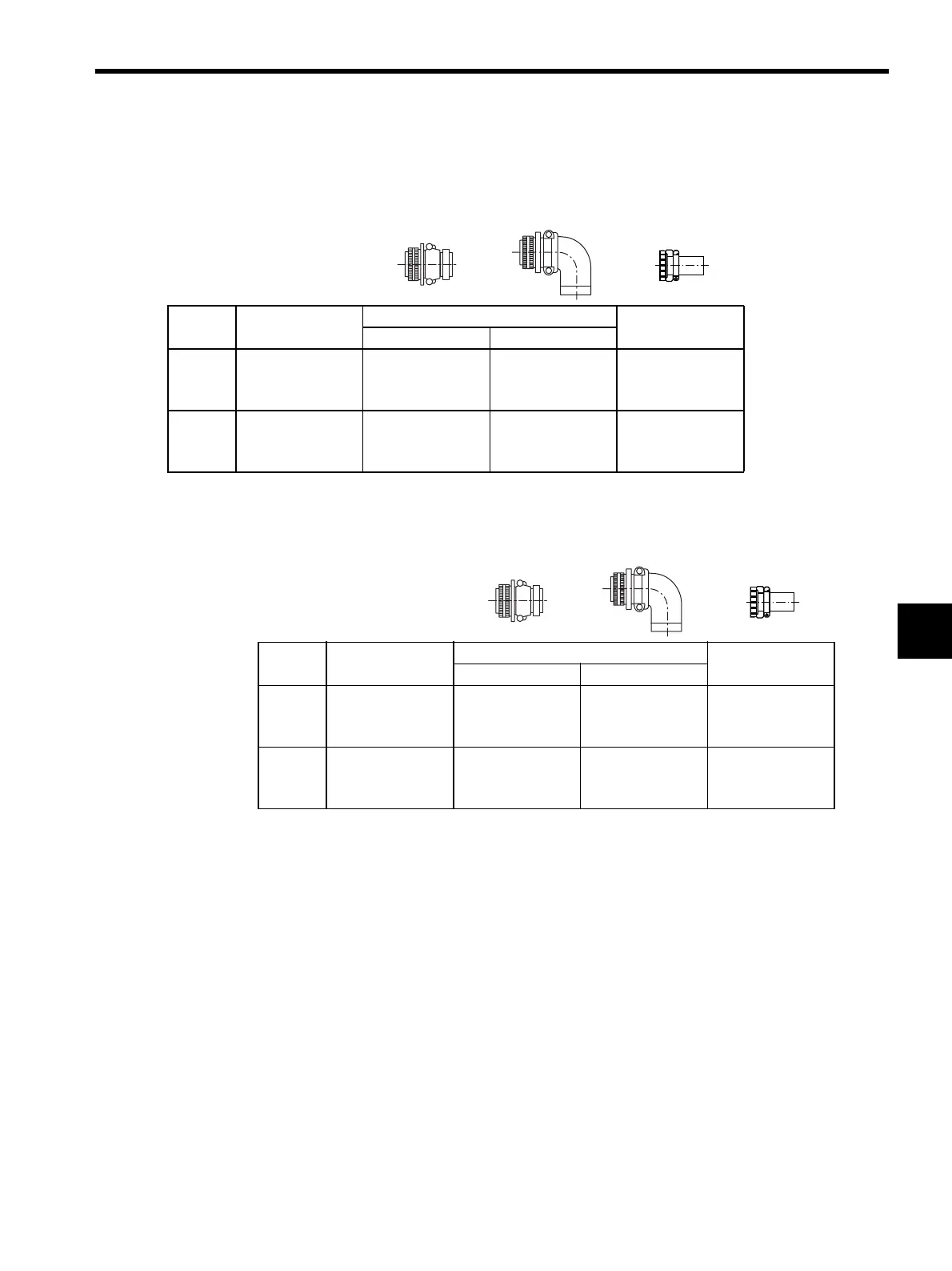

5.2.6 SGMSH Servomotor (3000 min

-1

) Connectors for Standard Environments

(1) Without Holding Brakes

(2) With Holding Brakes

(a) Servomotor-end Connectors

Capacity

(kW)

Connector on

Servomotor

Plug

Cable Clamp

Straight L-shaped

1.0

1.5

2.0

MS3102A18-10P MS3106B18-10S MS3108B18-10S MS3057-10A

3.0

4.0

5.0

MS3102A22-22P MS3106B22-22S MS3108B22-22S MS3057-12A

Capacity

(kW)

Connector on

Servomotor

Plug

Cable Clamp

Straight L-shaped

1.0

1.5

2.0

MS3102A20-15P MS3106B20-15S MS3108B20-15S MS3057-12A

3.0

4.0

5.0

MS3102A24-10P MS3106B24-10S MS3108B24-10S MS3057-16A
