YASKAWA SGDM Series User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.2.3 SGMGH, SGMSH, and SGMDH Servomotor Connector Configurations
5-12
5.2.3 SGMGH, SGMSH, and SGMDH Servomotor Connector Configurations

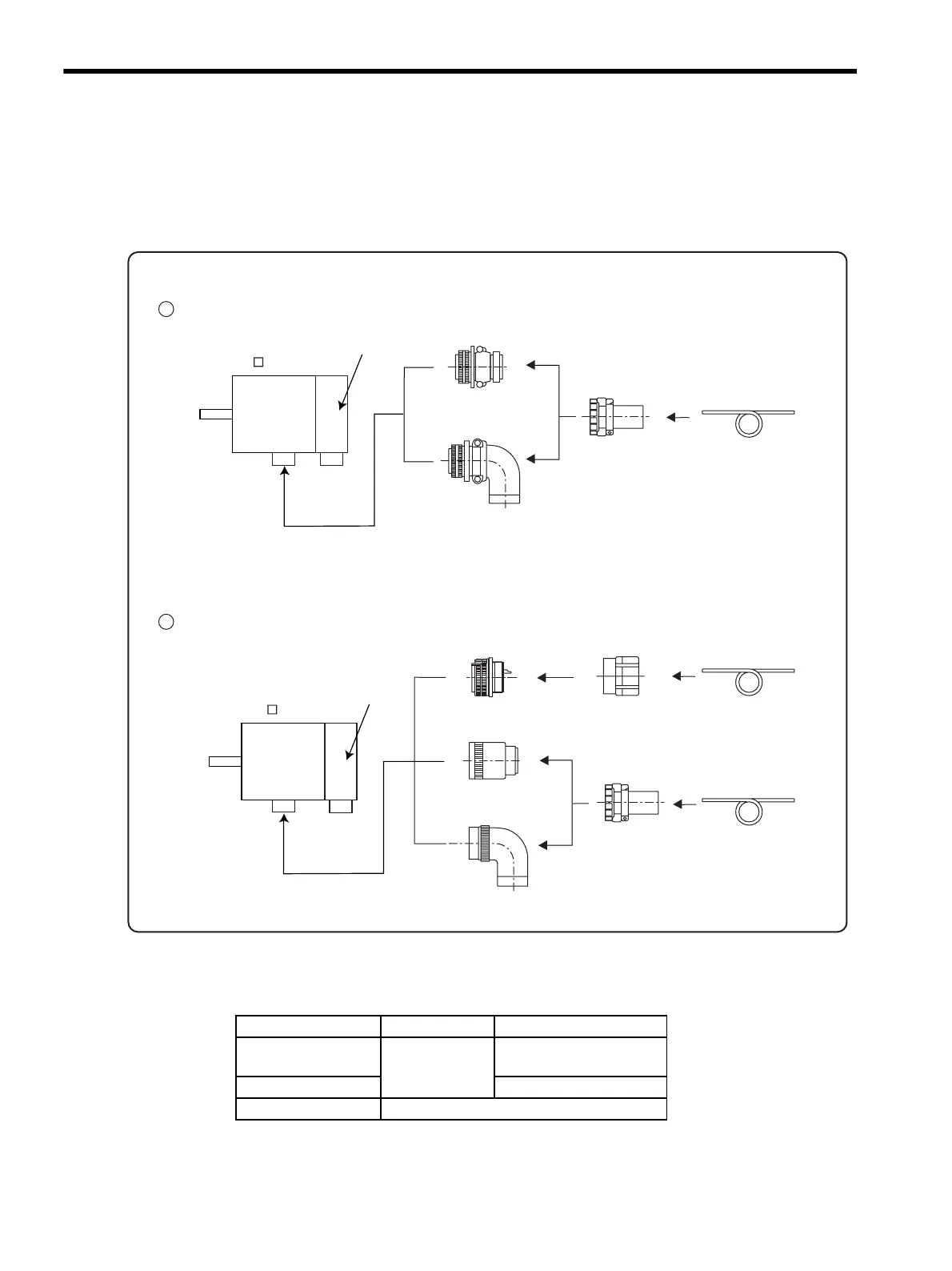

The SGMGH, SGMSH, and SGMDH servomotor connector configurations are shown below.
The connectors conforming to IP67 and the European Safety Standards are not available for SGMAH and
SGMPH servomotors.
• Connector Manufacturers
Contact Yaskawa Controls Co., Ltd.
Non-waterproof
cable clamp
Cable
Standard straight plug
Standard L-shaped plug
SGM H servomotor
1 Configurations of Standard Environment Connectors
2 Configurations of Connectors Conforming to IP67 and the European Safety Standards
Encoder
Connector on
servomotor
Connector on
servomotor
Encoder
Plug
Conduit
SGM H servomotor
Waterproof
cable clamp
Waterproof straight plug
Waterproof L-shaped plug
Select and prepare the proper plug and cable clamp.
Cable
Cable
Connector Type Manufacturer
Plug
JL (JA)
CE
Japan Aviation Electronics
Industry, Ltd.
Cable clamp DDK Electronics, Inc.
Conduit
Nippon Flex Co., Ltd.
