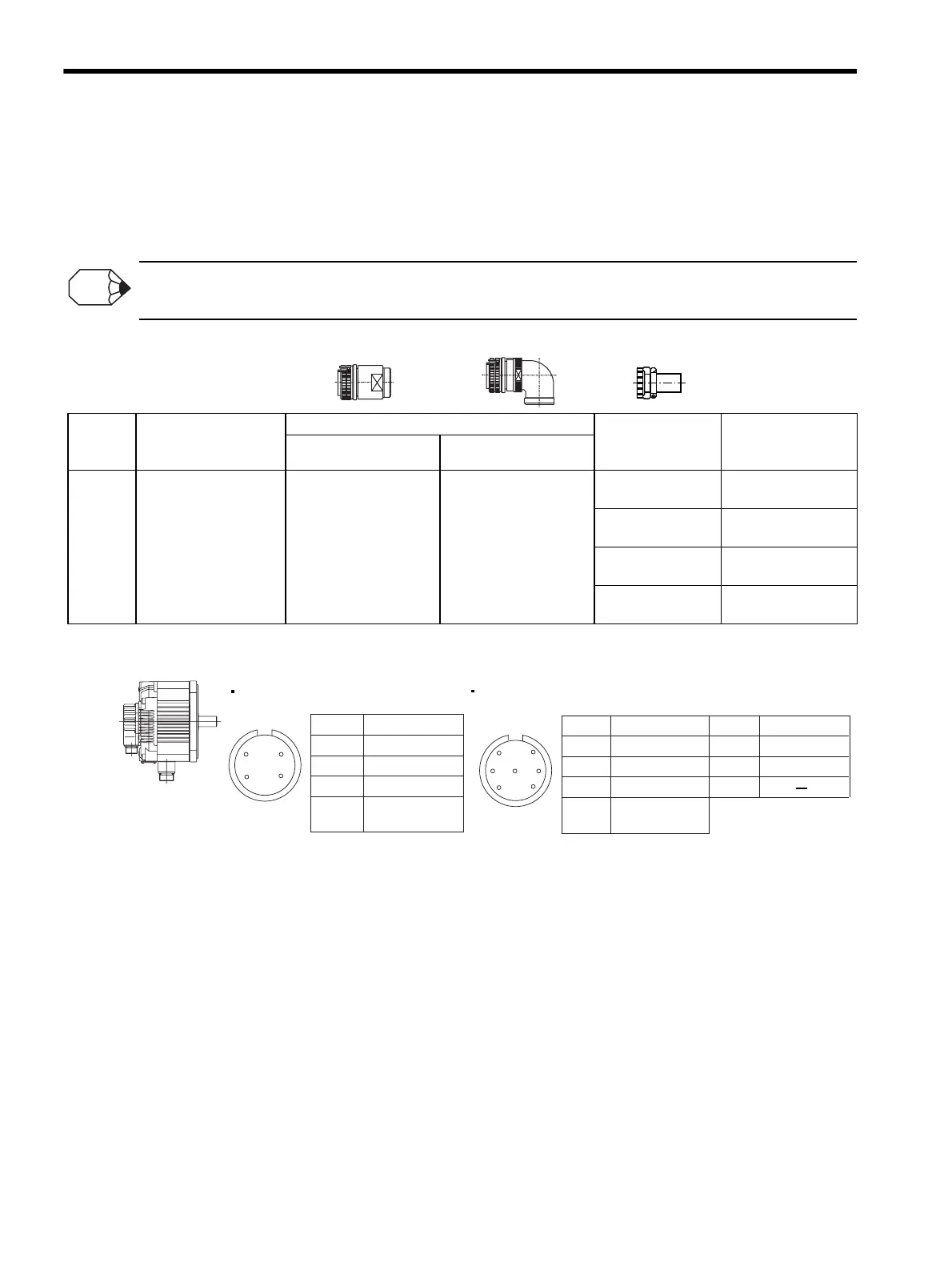

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.2.11 SGMDH Servomotors (2000 min
-1
) Connectors Conforming to IP67 and European Safety Standards
5-28
5.2.11 SGMDH Servomotors (2000 min
-1
) Connectors Conforming to IP67 and
European Safety Standards
(1) Servomotors With and Without Holding Brakes
Select a cable clamp in accordance with the applied cable diameter.
The straight plug type JA06A-24-10S-J1-EB and L-shaped plug type JA08A-24-10S-J1-EB conform to IP67 Protective
Construction Standard only.
(2) SGMDH (2000 min
-1
) Servomotor Main Circuit Connector Pin Arrangement
INFO
Capacity
(kW)
Connector on
Servomotor
Plug
Cable Clamp
Applicable Cable
Range in mm (in)
(For reference)
Straight L-shaped
2.2
3.2
4.0
JL04V-2E24-10PE-B
JL04V-6A24-10SE-EB
or
JA06A-24-10S-J1-EB
JL04V-8A24-10SE-EB
or
JA08A-24-10S-J1-EB
JL04-2428CK(11)
φ 9.0 (φ0.35) to
φ12.0 (φ0.47)
JL04-2428CK(14)
φ12.0 (φ0.47) to
φ15.0 (φ0.59)
JL04-2428CK(17)
φ15.0 (φ0.59) to
φ18.0 (φ0.71)
JL04-2428CK(20)
φ18.0 (φ0.71) to
φ20.0 (φ0.79)
Servomotor-end
connector
A
B
C
D
Phase U
Phase V
Phase W
FG
(Frame Ground)
Pin No. Signal
E *
F *
G
Brake terminal
Brake terminal
Pin No. Signal
Without Brakes
A
B
C
D
Phase U
Phase V
Phase W
FG
(Frame Ground)
Pin No. Signal
D
B
G
C
AF
E
With Brakes
* No polarity
D
BC
A
