3 Specifications and Dimensional Drawings

3.19.8 Servomotor Connector for All Middle-capacity Series Servomotors

3-156

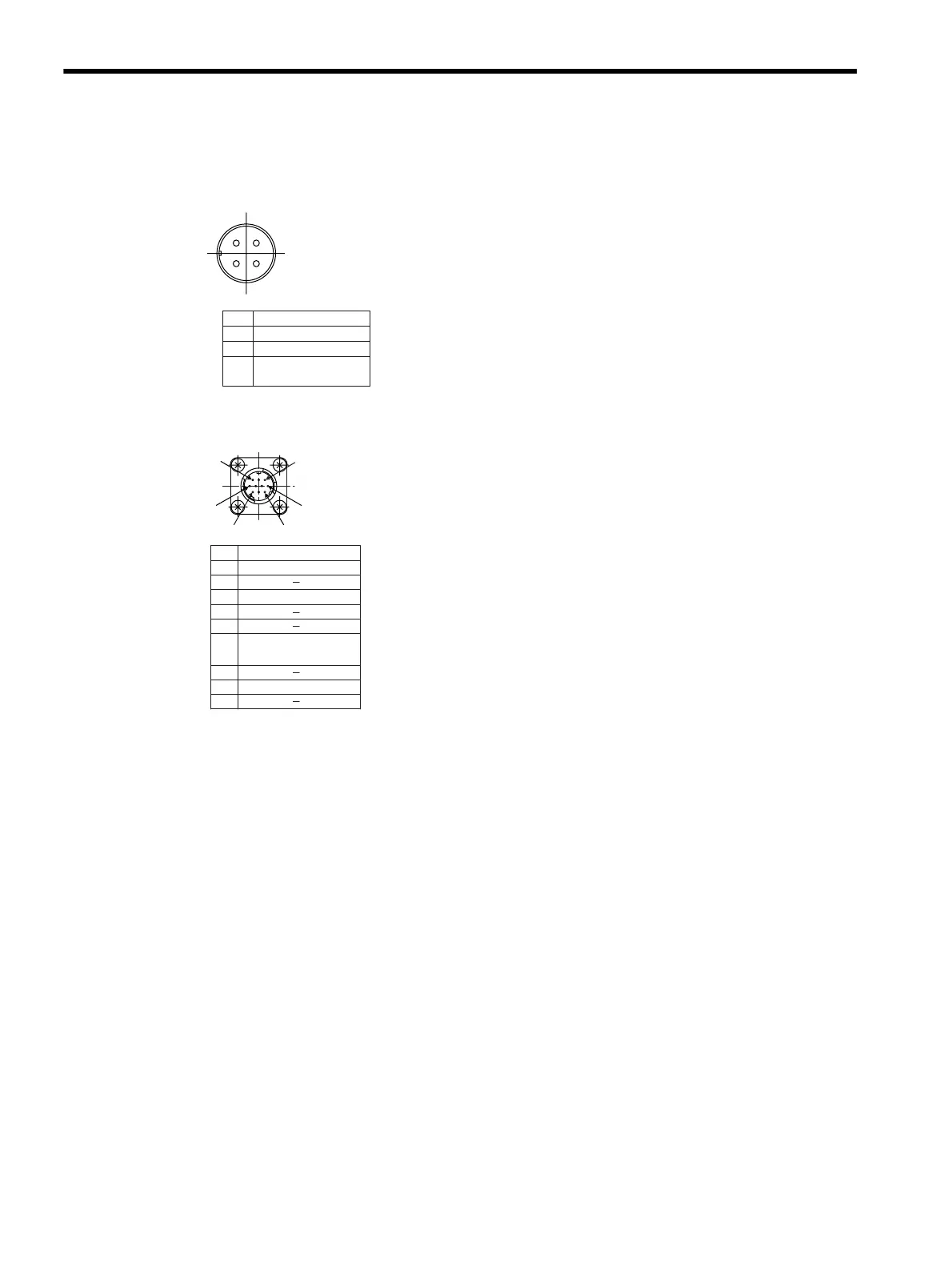

3.19.8 Servomotor Connector for All Middle-capacity Series Servomotors

• Servomotor-end Connector Cable Specifications

• Encoder-end Connector Cable Specifications

Phase U

Phase V

Phase W

(Frame ground)

Model: CE05-2A18-10PD

Manufacturer: DDK Ltd.

Applicable plug and cable

 Plug: CE05-6A18-10SD-B-BSS

 Cable clamp: CE3057-10A-∗(D265)

(Provided by the customer.)

Model: JN1AS10ML1

Manufacturer: Japan Aviation Electronics Industry, Ltd.

Applicable plug: JN1DS10SL1

(Provided by the customer.)

PG5V

PG0V

∗PS

(Frame ground)
