5.1 Specifications and Dimensional Drawings of Servomotor Main Circuit Cable

5-5

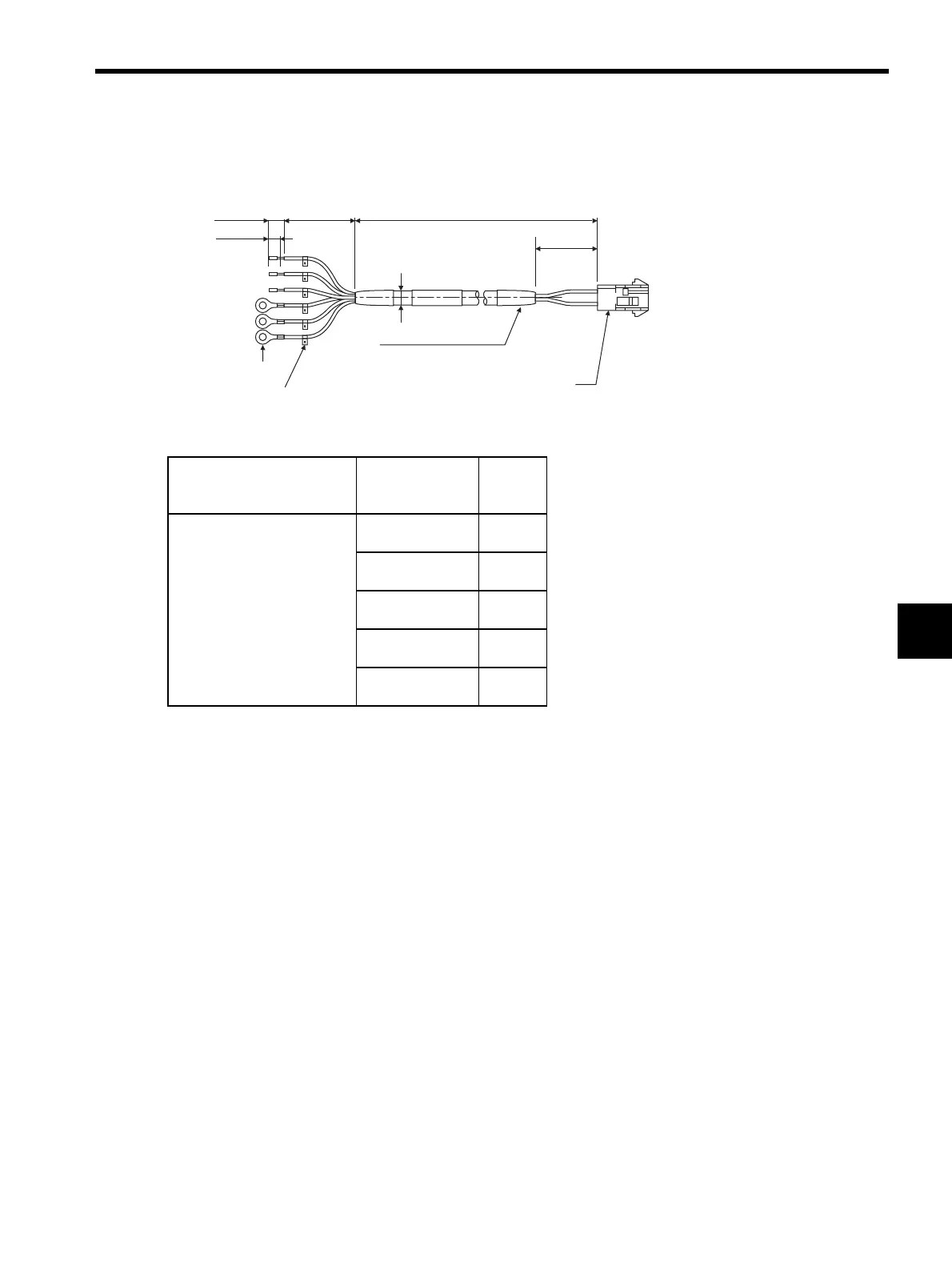

5.1.4 Flexible Cables for SGMAH and SGMPH Servomotors With Brakes

Units: m (ft)

Applicable Servomotor

Models

Cable Type

Cable

Length

(L)

SGMAH

200 V: 30 to 750 W

100 V: 30 to 200 W

SGMPH

200 V: 100 to 750 W

100 V: 100 W and 200 W

JZSP-CMM11-03

(9.84)

JZSP-CMM11-05

(16.40)

JZSP-CMM11-10

(32.81)

JZSP-CMM11-15

(49.21)

JZSP-CMM11-20

(65.62)

50 (1.97)

35 (1.38)

Cap: 350781-1 (6-pin)

Socket: 350536-6 (Chained)

Wire markers

M4 crimped

terminals

8.5 (0.33)

(10) (0.39)

SERVOPACK end Servomotor end

Heat-shrinkable tube

Finished dimension

φ7.0 (φ0.28)

Units: mm (in)
