6.4 Others
6-29
6

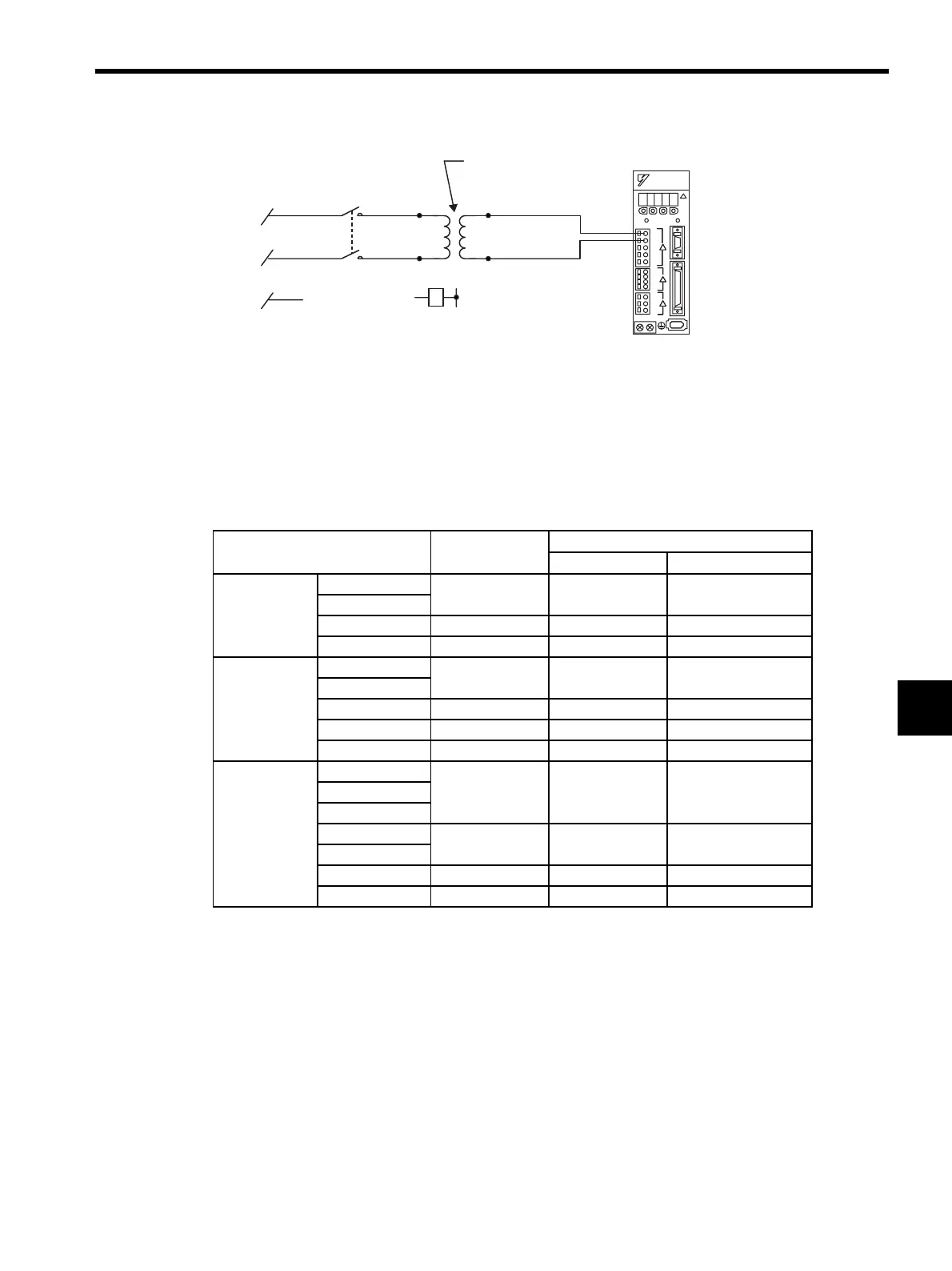

Single-phase Power Supply Connection Example
6.4.8 DC Reactor for Harmonic Suppression
(1) Reactor Types
The SERVOPACK has the DC reactor connection terminals for power supply harmonic suppression. However,
SERVOPACKs with capacities of 6 kW or more do not have these terminals. The type of DC reactor to be con-
nected differs depending on the SERVOPACK capacity. Refer to the following table.
Note: Select a proper DC reactor for the input current to the SERVOPACK.
Refer to 2.6.2 Molded-case Circuit Breaker and Fuse Capacity for input current to each
SERVOPACK. For the kind of reactor, refer to 5.8.13 DC Reactor for Harmonic Suppression.
Single-phase
Magnetic contactor for
power supply ON and OFF
Voltage conversion
transformer
100 or 200 VAC
SERVOPACK
R
S
T
1KM
1KM
L1
L2
Applicable SERVOPACK Model
SGDM-
DC Reactor
Model
Reactor Specifications
Inductance (mH) Rated Current (A)
Single-phase
100 V
A3BD, A3BDA
−− −
A5BD, A5BDA
01BD, 01BDA X5063 10.0 1.8
02BD, 02BDA X5062 4.7 3.5
Single-phase
200 V
A3AD, A3ADA
−− −
A5AD, A5ADA
01AD, 01ADA X5071 40.0 0.85
02AD, 02ADA X5070 20.0 1.65
04AD, 04ADA X5069 10.0 3.3
Three-phase
200 V
05AD, 05ADA
X5061 2.0 4.808AD, 08ADA
10AD, 10ADA
15AD, 15ADA
X5060 1.5 8.8
20AD, 20ADA
30AD, 30ADA X5059 1.0 14.0
50ADA X5068 0.47 26.8
