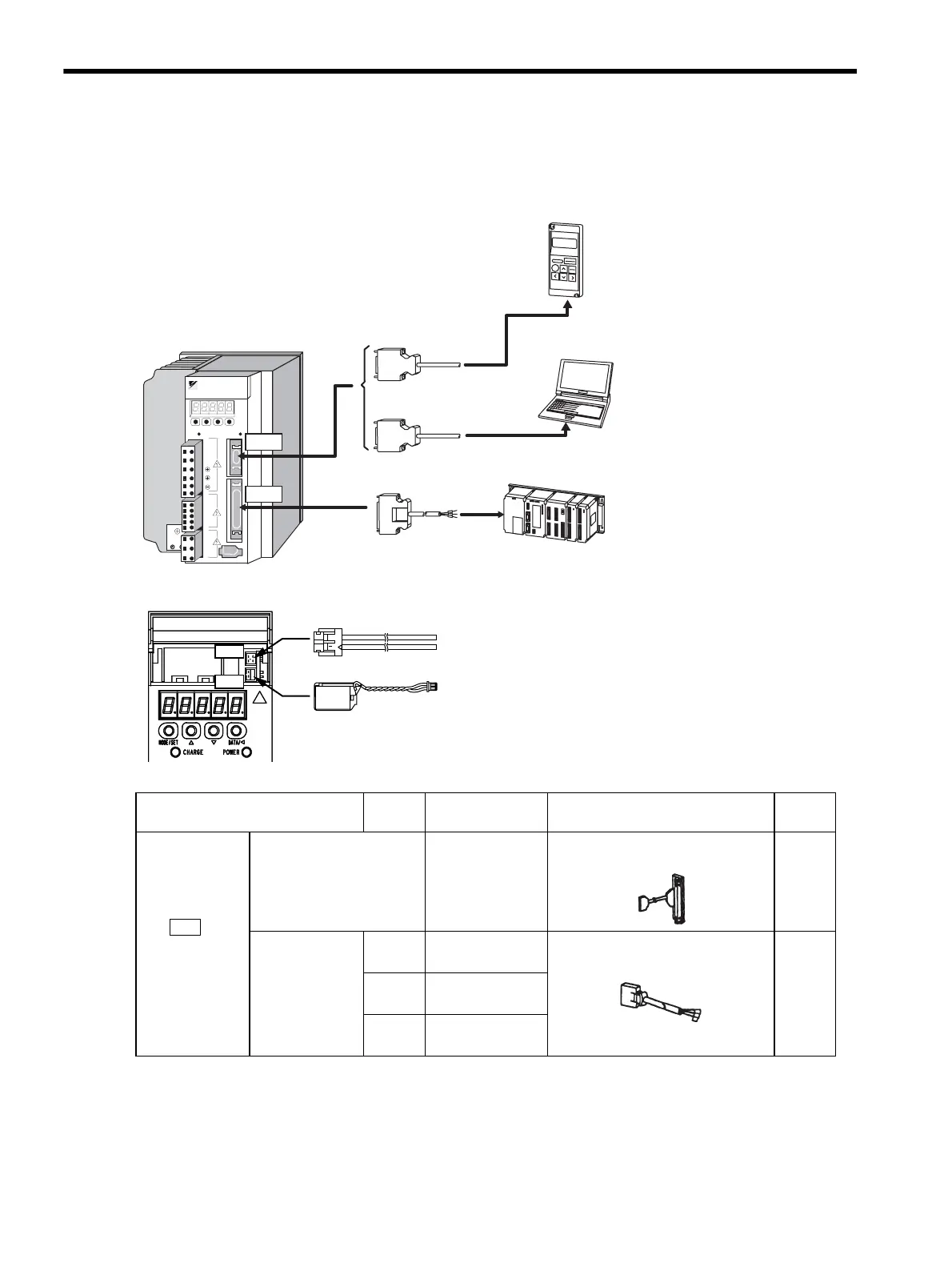

2.6.1 Special Options

2-30

2.6 Selecting Peripheral Devices

2.6.1 Special Options

Name Length Type Specifications

Refer-

ence

I/O Signal

Cables

Connector terminal block

converter unit

JUSP-TA50P

Terminal block and 0.5 m (1.64 ft)

connection cable

5.8.4

Cable with

loose wires at

one end

1 m

(3.28 ft)

JZSP-CKI01-1

Loose wires at host controller end

5.7.1

2 m

(6.56 ft)

JZSP-CKI01-2

3 m

(9.84 ft)

JZSP-CKI01-3

Personal

computer



Digital operator

Host controller

I/O signal cable



Connection cable

for digital operator

Connection cable

for personal computer

YASKAWA

SERVOPACK

SGDM-

200V

L1C

MODE/SET DATA/

CHARGE

POWER

CN3

CN1





CN5

CN8



Analog monitor cable



Battery for absolute encoder

CN1
