YASKAWA SGDM Series User Manual

9 Adjustments
9.4.2 Torque Feed-forward
9-16

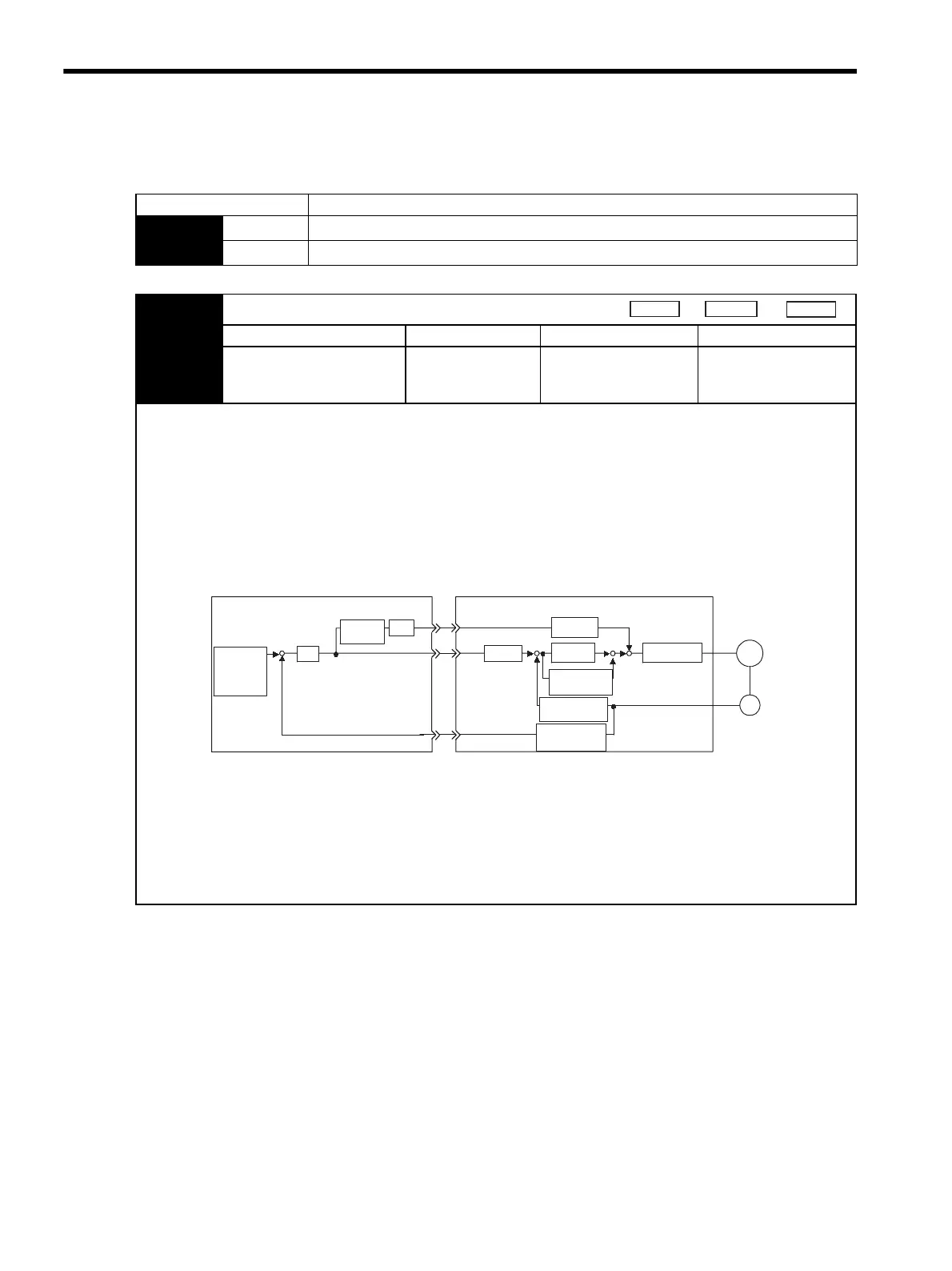

9.4.2 Torque Feed-forward
Parameter Meaning
Pn002
n.

0
Disabled
n.

2
Uses T-REF terminal for torque feed-forward input.
Pn400
Torque Reference Input Gain
Setting Range Setting Unit Factory Setting Setting Validation
10 to 100
(1.0 to 10.0V/Rated
torque)
0.1V/Rated torque
30
(3 V/Rated torque)
Immediately
The torque feed-forward function is valid only in speed control (analog reference).
The torque feed-forward function shortens positioning time, differentiates a speed reference at the host controller to gener-
ate a torque feed-forward reference, and inputs the torque feed-forward reference together with the speed reference to the
SERVOPACK.
Too high a torque feed-forward value will result in overshooting or undershooting. To prevent such troubles, set the opti-
mum value while observing the system responsiveness.
Connect a speed reference signal line to V-REF (CN1-5 and -6) and a torque forward-feed reference to T-REF (CN1-9 and
-10) from the host controller.
Torque feed-forward is set using the parameter Pn400.
The factory setting is Pn400 = 30. If, for example, the torque feed-forward value is
±3V, then, the torque is limited to
±100% of the rated torque.
The torque feed-forward function cannot be used with torque limiting by analog voltage reference described in 8.9.3
Torque Limiting Using an Analog Voltage Reference.
Speed
Position
Torque
-
V-REF (CN1-5)
Position
reference
Kp
Pn100
Current loop
M
PG
Differ-
ential
K
FF
Speed
calculation
Integration
(Pn101)
+
+
+
+
+
T-REF (CN1-9)
Servomotor
Encoder
Host controller SERVOPACK
Kp: Position loop gain
K
FF
: Feed-forward gain
+
+
Pn400
Pn300
-
Divider
