7 Digital Operator/Panel Operator
7.3.2 Input Circuit Signal Allocation
7-22
For details on each digit of the parameter, see 12.3.2 List of Parameters.
7.3.2 Input Circuit Signal Allocation
Each input signal is allocated to a pin of the input connector CN1 by setting the parameter.
The following table shows detailed allocation.
(1) Factory Setting (Pn50A.0 = 0)
The factory setting for the input signal allocation is as follows.
means factory setting.
Pn50A
n.2
n.8
The number of the
parameter
Parameter Meaning

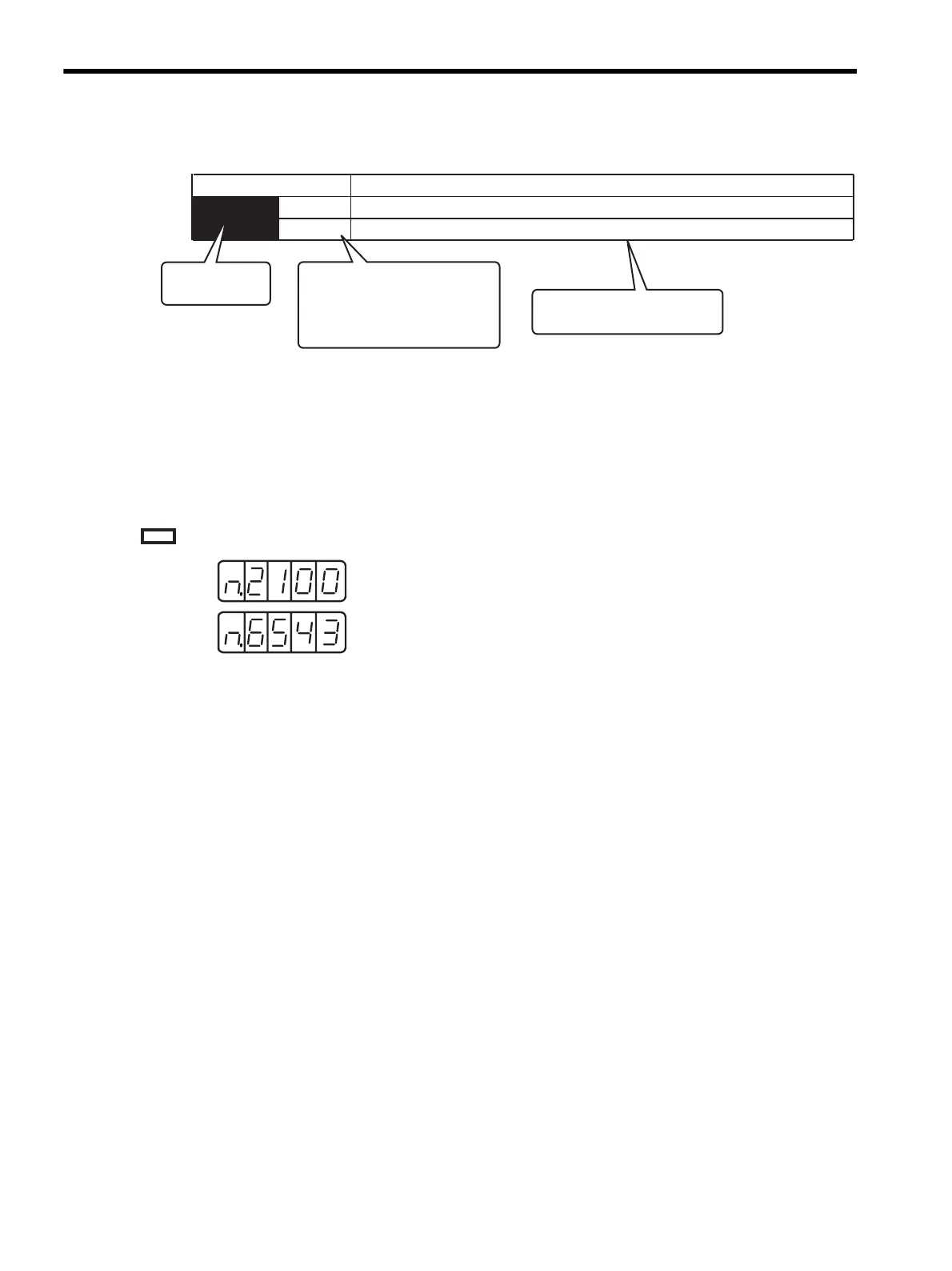

This section explains the
details of the function selection.
This blank shows the setting
value of the function selection,
as well as the state condition
on the panel operator and the
digital operator (JUSP-OP02A-2).
Input the forward run prohibited signal (P-OT) from CN1-42 (Factory setting).
Forward run prohibited signal (P-OT) is disabled (Forward rotation allowed).
Pn50A:
Pn50B:
