5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.2.8 SGMGH Servomotor (1500 min
-1
) Connectors Conforming to IP67 and European Safety Standards
5-20

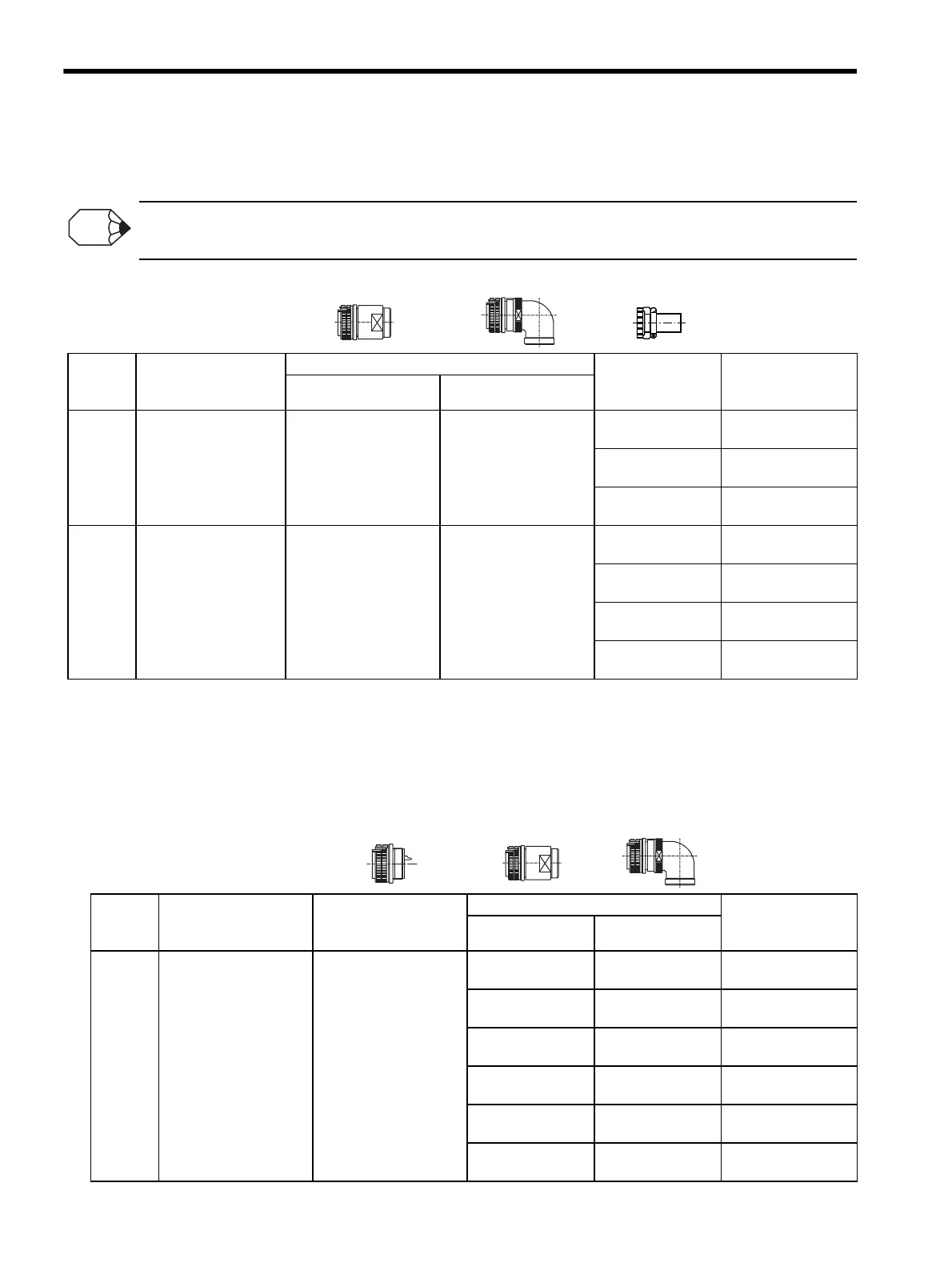

(3) 0.45 to 4.4 kW Servomotors With Holding Brakes
Select a cable clamp in accordance with the applied cable diameter.
The straight plug type JA06A-24-10S-J1-EB and L-shaped plug type JA08A-24-10S-J1-EB conform to IP67 Protective
Construction Standard only.
(4) 5.5 to 15.0 kW Servomotors With Holding Brakes
The servomotor end connector (a) and brake power supply connector (b) are required. Select a conduit in accor-
dance with the applied cable diameter.
(a) Servomotor-end Connector
INFO
Capacity
(kW)
Connector on
Servomotor
Plug
Cable Clamp
Applicable Cable
Range in mm (in)
(For reference)
Straight L-shaped
0.45
0.85
1.3
JL04V-2E20-15PE-B JL04V-6A20-15SE-EB
JL04V-8A20-
15SE-EB
JL04-2022CK(09)
φ6.5 (φ0.26) to
φ9.5 (φ0.37)
JL04-2022CK(12)
φ9.5 (φ0.37) to
φ13.0 (φ0.51)
JL04-2022CK(14)
φ12.9 (φ0.51) to
φ15.9 (φ0.63)
1.8
2.9
4.4
JL04V-2E24-10PE-B
JL04V-6A24-10SE-EB
or
JA06A-24-10S-J1-EB
JL04V-8A24-
10SE-EB
or
JA08A-24-10S-J1-EB
JL04-2428CK(11)
φ9.0 (φ0.35) to
φ12.0 (φ0.47)
JL04-2428CK(14)
φ12.0 (φ0.47) to
φ15.0 (φ0.59)
JL04-2428CK(17)
φ15.0 (φ0.59) to
φ18.0 (φ0.71)
JL04-2428CK(20)
φ18.0 (φ0.71) to
φ20.0 (φ0.79)
Capacity
(kW)
Connector on
Servomotor
Plug
Conduit Applicable Cable
Range in mm (in)
(For reference)
Straight L-shaped
5.5
7.5
11.0
15.0
JL04V-2E32-17PE-B JL04V-6A32-17SE
ACS-16RL-MS32F ACA-16RL-MS32F
φ12.0 (φ0.47) to
φ16.0 (φ0.63)
ACS-20RL-MS32F ACA-20RL-MS32F
φ16.0 (φ0.63) to
φ20.0 (φ0.79)
ACS-24RL-MS32F ACA-24RL-MS32F
φ20.0 (φ0.79) to
φ24.0 (φ0.94)
ACS-28RL-MS32F ACA-28RL-MS32F
φ24.0 (φ0.94) to
φ28.0 (φ1.10)
ACS-32RL-MS32F ACA-32RL-MS32F
φ28.0 (φ1.10) to
φ32.0 (φ1.26)
ACS-36RL-MS32F ACA-36RL-MS32F
φ32.0 (φ1.26) to
φ36.0 (φ1.42)
