6.4 Others
6-21
6

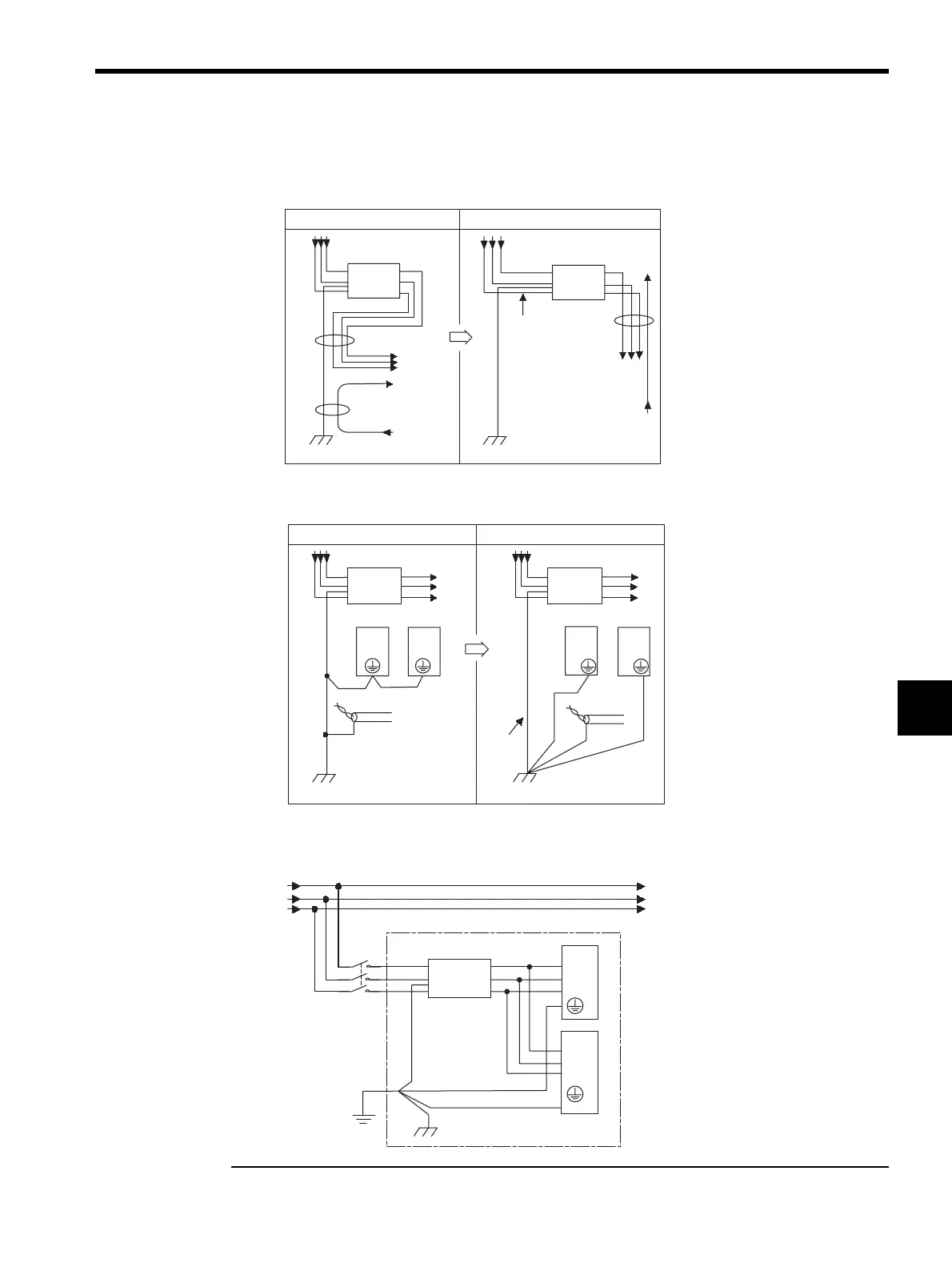

2. Separate the noise filter ground wire from the output lines.
Do not accommodate the noise filter ground wire, output lines, and other signal lines in the same duct or
bundle them together.
3. Connect the noise filter ground wire directly to the ground plate.
Do not connect the noise filter ground wire to other ground wires.
4. When grounding a noise filter inside a unit:
If a noise filter is located inside a unit, connect the noise filter ground wire and the ground wires from other
devices inside the unit to the ground plate for the unit first, then ground these wires.
The ground wire
can be close to
input lines.
Noise
filter
Box
Box
Incorrect
Correct
Noise
filter
Shielded
ground wire
Thick and
short
Box
Box
SERVOPACK
Incorrect
Correct
Noise
filter
Noise
filter
SERVOPACK
SERVOPACK SERVOPACK
Noise
filter
Unit
Ground
Box
SERVOPACK
SERVOPACK
