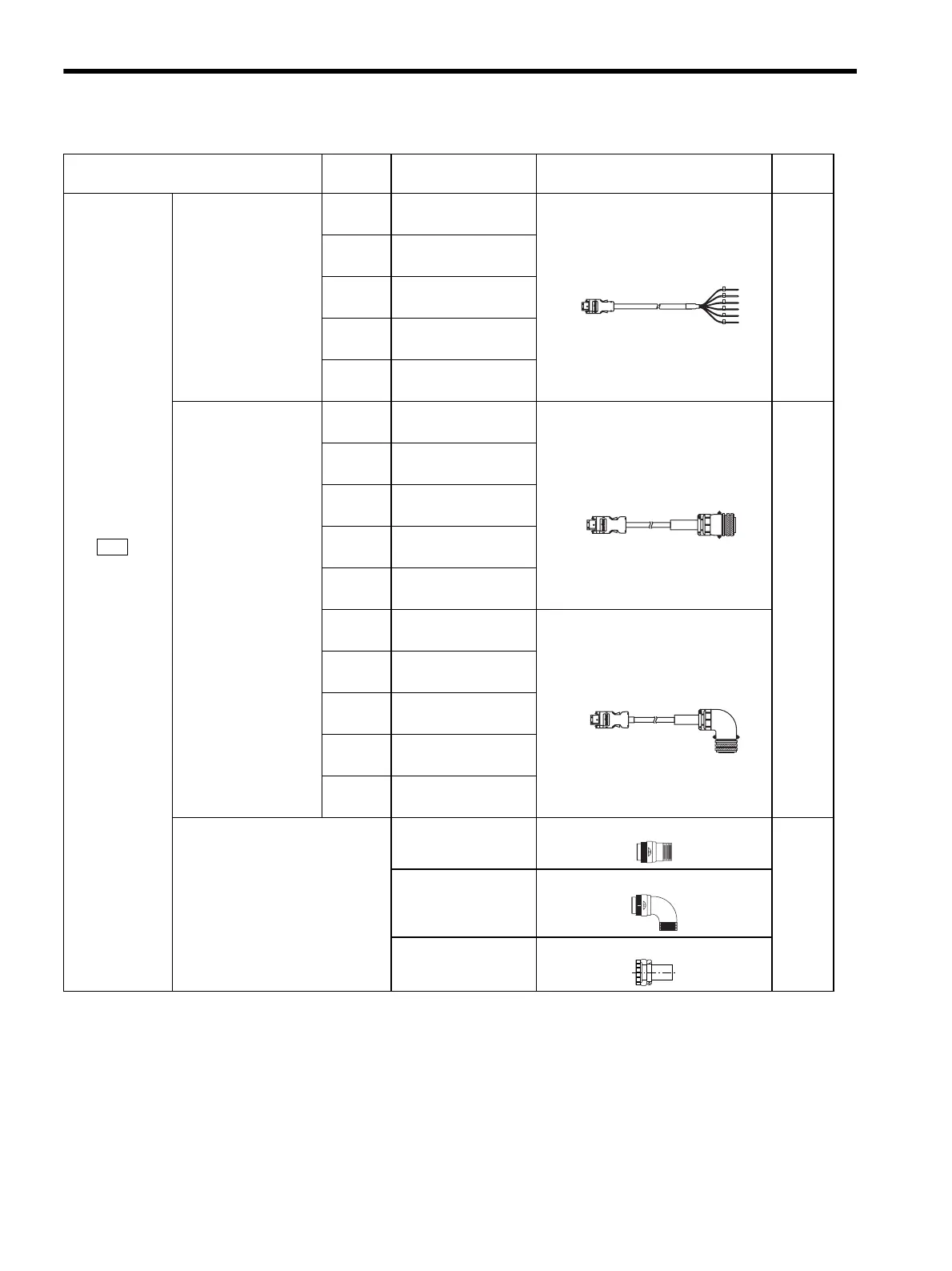

2.5.2 Cables for SGMGH/SGMSH/SGMDH Servomotors
2-24
Name Length Type Specifications
Refer-
ence
c
Encoder
Cables
* Applicable for
every type
and capacity.
Cable with loose
wires at encoder end
3 m
(9.84 ft)
JZSP-CMP03-03
5.4.4
5 m
(16.4 ft)
JZSP-CMP03-05
10 m
(32.8 ft)
JZSP-CMP03-10
15 m
(49.2 ft)
JZSP-CMP03-15
20 m
(65.6 ft)
JZSP-CMP03-20
Cable with connec-
tors at both ends
3 m
(9.84 ft)
JZSP-CMP01-03
With an straight plug
5.4.2
5 m
(16.4 ft)
JZSP-CMP01-05
10 m
(32.8 ft)
JZSP-CMP01-10
15 m
(49.2 ft)
JZSP-CMP01-15
20 m
(65.6 ft)
JZSP-CMP01-20
3 m
(9.84 ft)
JZSP-CMP02-03
With an L-shaped plug
5 m
(16.4 ft)
JZSP-CMP02-05
10 m
(32.8 ft)
JZSP-CMP02-10
15 m
(49.2 ft)
JZSP-CMP02-15
20 m
(65.6 ft)
JZSP-CMP02-20
For standard environment
encoder end connector
MS3106B20-29S*
Straight plug
5.4.4
5.5.2
MS3108B20-29S*
L-shaped plug
MS3057-12A*
Cable clamp
* Contact DDK Electronics, Inc.
CN2
SERVOPACK end Encoder end
SERVOPACK end Encoder end
SERVOPACK end Encoder end
