Changing Displayed Items Using the ITEM Key
5.

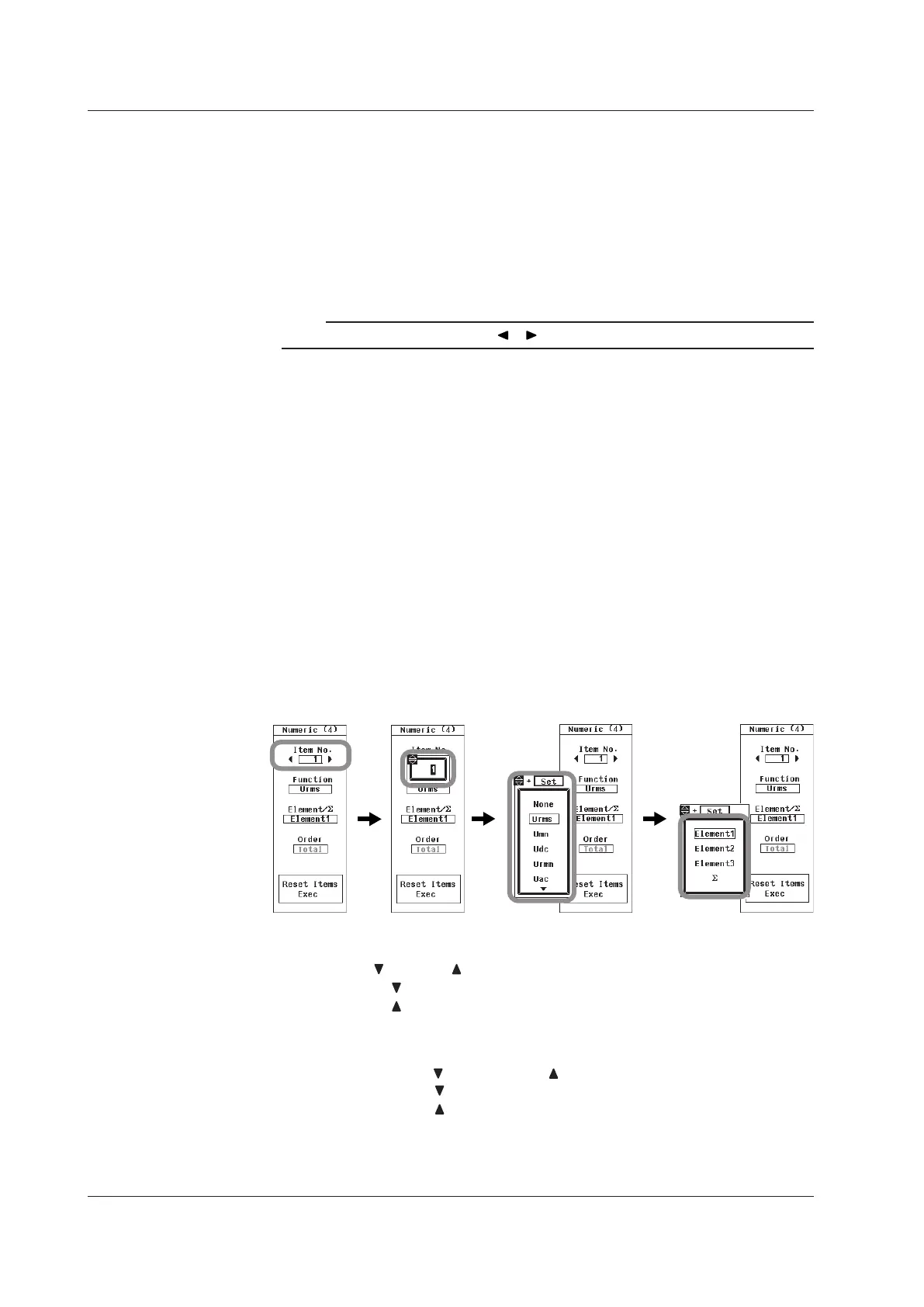

Press ITEM to display the Numeric menu.
• Selecting the Item to Change
6.
Use the cursor keys to select Item No.
7.
Press SET to display the item selection box.
8.
Use the cursor keys to select the desired item. The selected item is highlighted.
9.
Press SET or ESC to close the item selection box.
Note
In steps 6 through 9, you can use the or key instead of SET.
• Changing a Measurement Function
10.
Use the cursor keys to select Function.
11.
Press SET to display the measurement function selection box.
12.
Use the cursor keys to select a measurement function.
13.
Press SET. The symbol for the selected measurement function appears in the
highlighted area.
•
Changing an Element or Wiring Unit
14.
Use the cursor keys to select Element/
Σ
.
15.
Press SET to display the element or wiring unit selection box.
16.
Use the cursor keys to select an element or wiring unit.
17.
Press SET. The element number or wiring unit symbol for the selected element
or wiring unit appears in the highlighted area. This ends the description of how to
change displayed items using menus.
* For instructions on how to change the harmonic orders of harmonic measurement
functions, see section 6.2, “Changing Numeric Data Display Items.”
Scrolling through Displayed Pages
18.
Use PAGE and PAGE to scroll through pages.
• Press PAGE to display the next page.
• Press PAGE to display the previous page.
Jumping to the Last or First Page
19.
Press SHIFT+PAGE or SHIFT+PAGE to jump to the first or last page.
• Press SHIFT+PAGE to display the last page.
• Press SHIFT+PAGE to display the first page.
