YOKOGAWA WT500 User Manual

6-5
IM 760201-01E
Harmonic Measurement (Optional)
3
2
1
4
5
6
7
8
9
10
11
12
13
14
App
Index

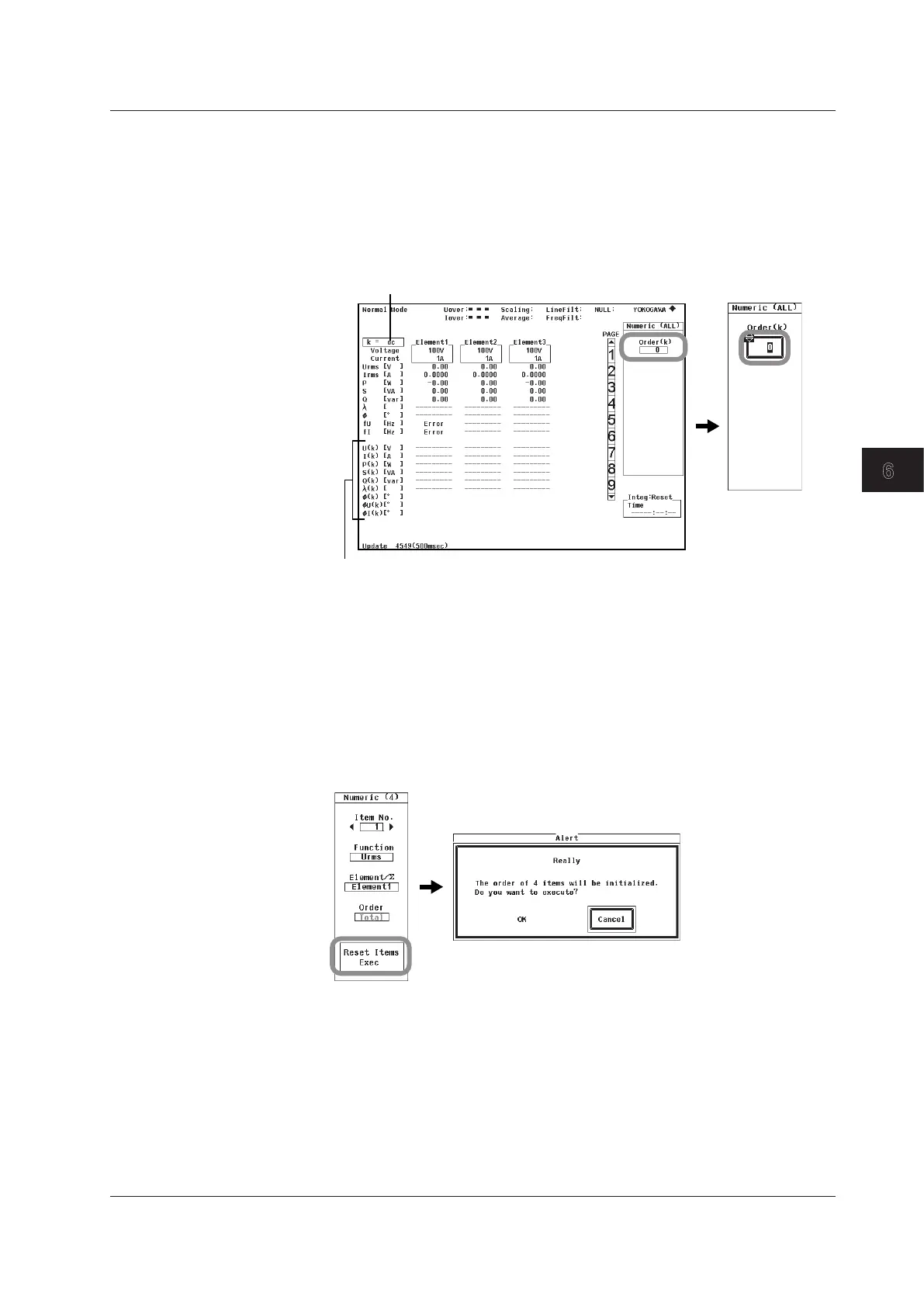

Selecting Harmonic Orders in the ALL Display
1.
Press PAGE to display the harmonic order data page (page 6).
2.
Press ITEM. The Numeric(ALL) menu appears.
3.
Press SET to display the harmonic order selection box.
4.
Use the cursor keys to select a harmonic order.
5.
Press SET or ESC to close the harmonic order selection box.
Present harmonic
Harmonic measurement functions
Resetting the Displayed Item Order (In any display other than ALL, Single
List, or Dual List)
1.
Press ITEM to display the Numeric menu.
2.
Use the cursor keys to select Reset Items Exec.
3.
Press SET. An Alert dialog box appears.
4.
Use the cursor keys to select OK.
5.
Press SET. The order of every display item on every page will be reset.
If you do not want to reset, select Cancel and press SET.
6.2 Changing Numeric Data Display Items
