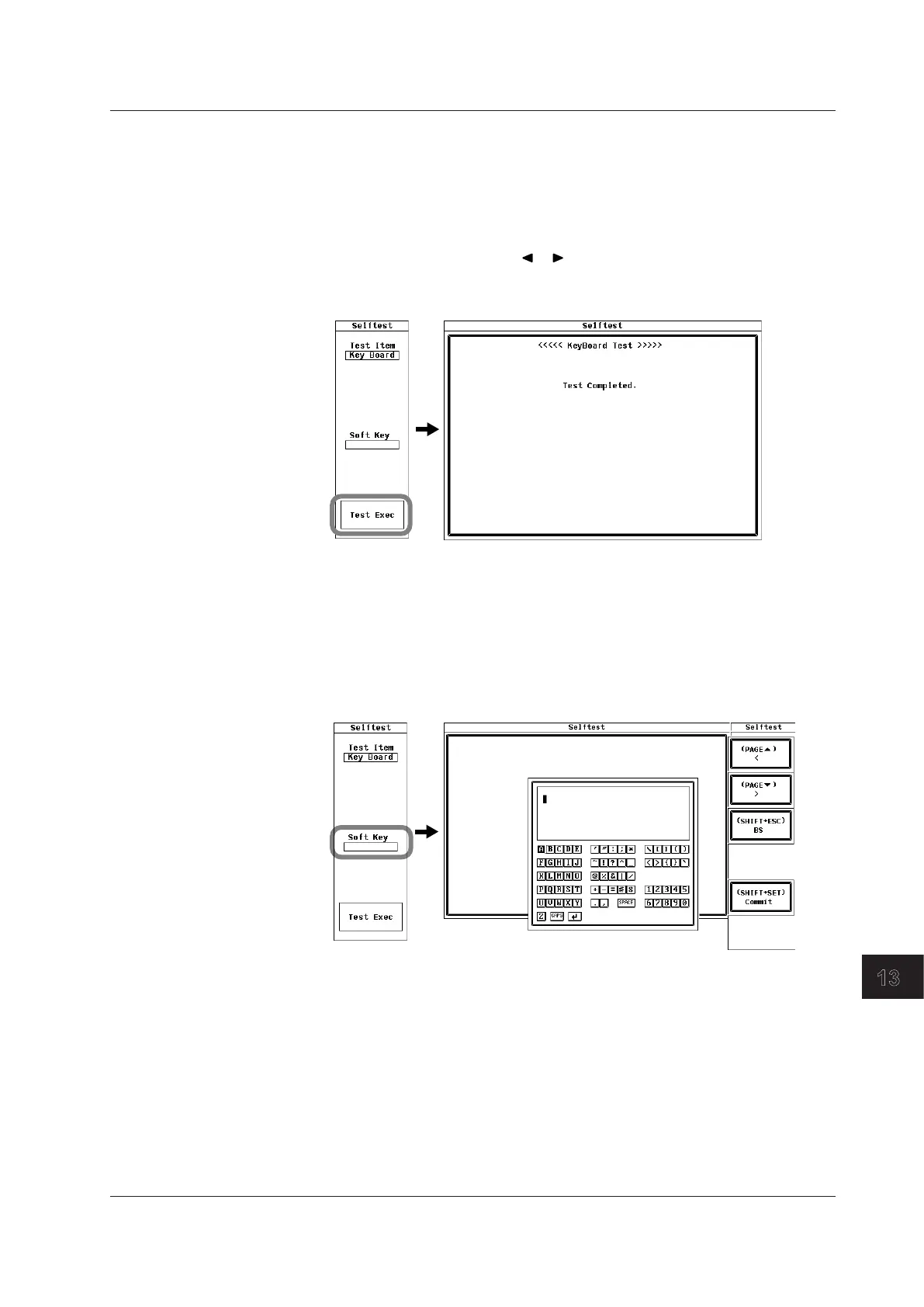

Testing the Keyboard and Panel Keys
• Testing the Panel Keys
7.
Use the cursor keys to select Test Exec.
8.
Press SET to enter into the panel key test mode.
9.
Press a panel key on the front panel. The key you pressed is tested.
10.
Press one of the cursor keys ( or ). Each time you press a cursor key, an
front-panel indicator lights.
11.
You can exit the panel key test by pressing ESC twice.
• Testing the Keyboard
12.
Use the cursor keys to select Soft Key.
13.
Press SET. A keyboard appears on the screen.
14.
Use the keyboard, and check whether or not the characters that you enter appear
correctly in the entry box.
For instructions on how to use the keyboard, see section 3.14, “Entering Values and
Character Strings.”
13.3 Self-Test
