ABB AC 800F

4 Cabling the AC 800F
4-31

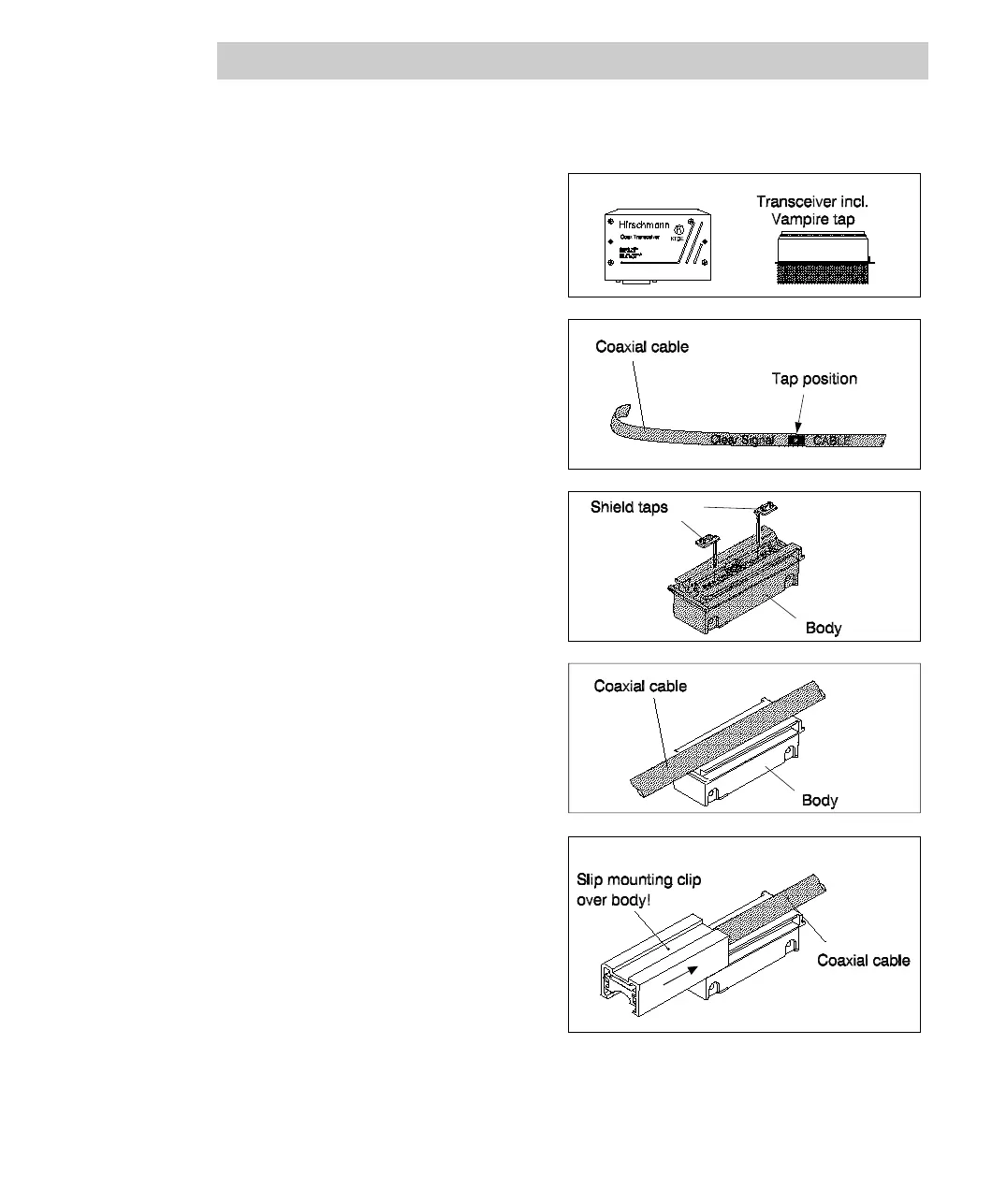

3. Mounting a 10Base5 tap (Vampire tap) with transceiver
Material
Determine tap position
Only attach transceivers at the
marks.
The spacing between two
marks is 2.5 m.
Insert the shield taps
in the body.
Lay the cable in the slot of the
body.
Slip the mounting clip over
the body from the side.
