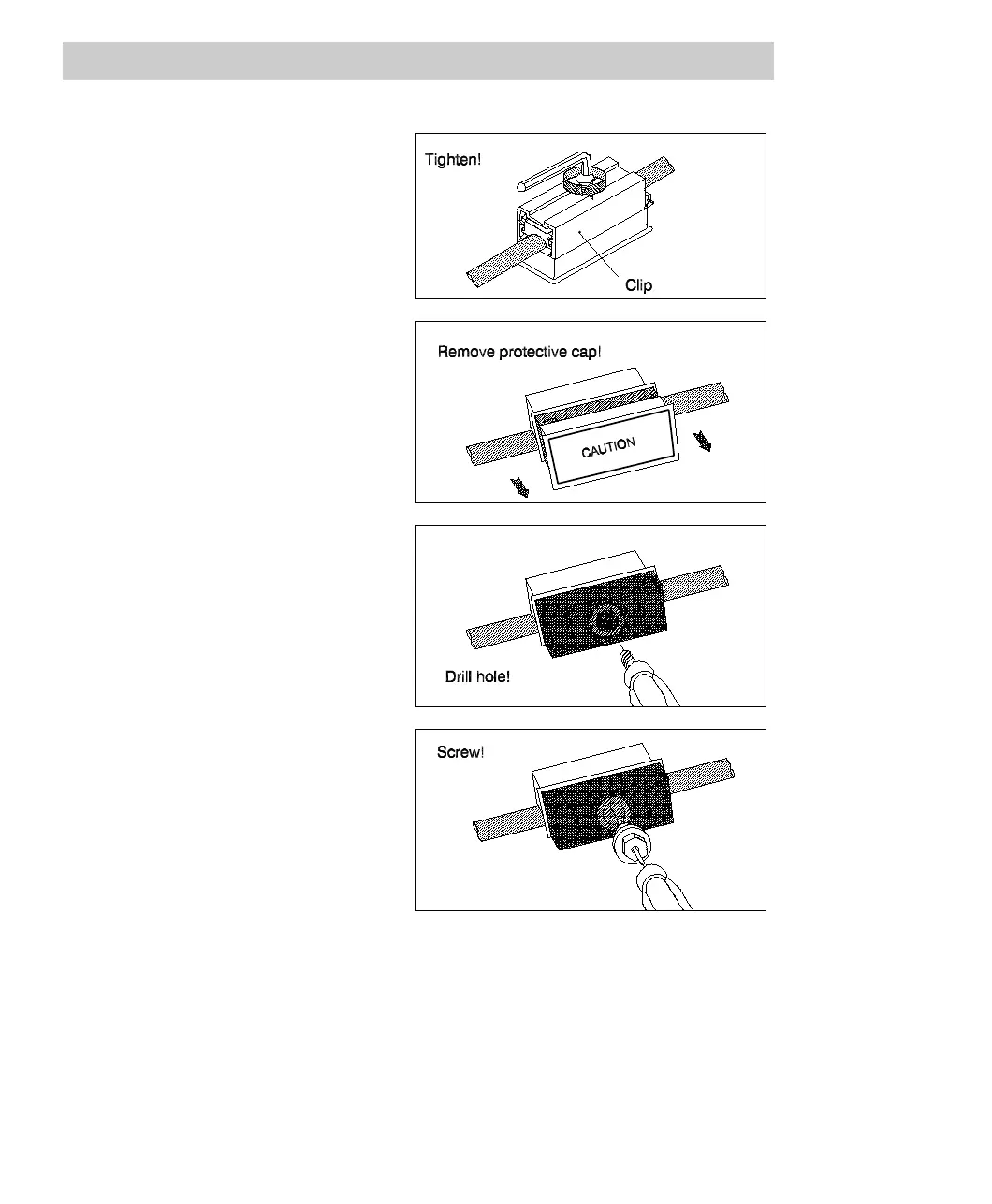

Fasten screw with Allan key
until the clip fits tightly to the
cable.
Remove protective cap.
Use the drill of the
10Base5 mounting tool kit to
drill a hole in the cable down
to the internal conductor.
Thoroughly remove drilling
chips to avoid short circuits!
Screw in the contact piece
using the 10Base5 mounting
tool kit.
