Version 16.10 AF-6600 AF-5000 Series Install Manual 124
71320 SV-EMS-220 Engine Module

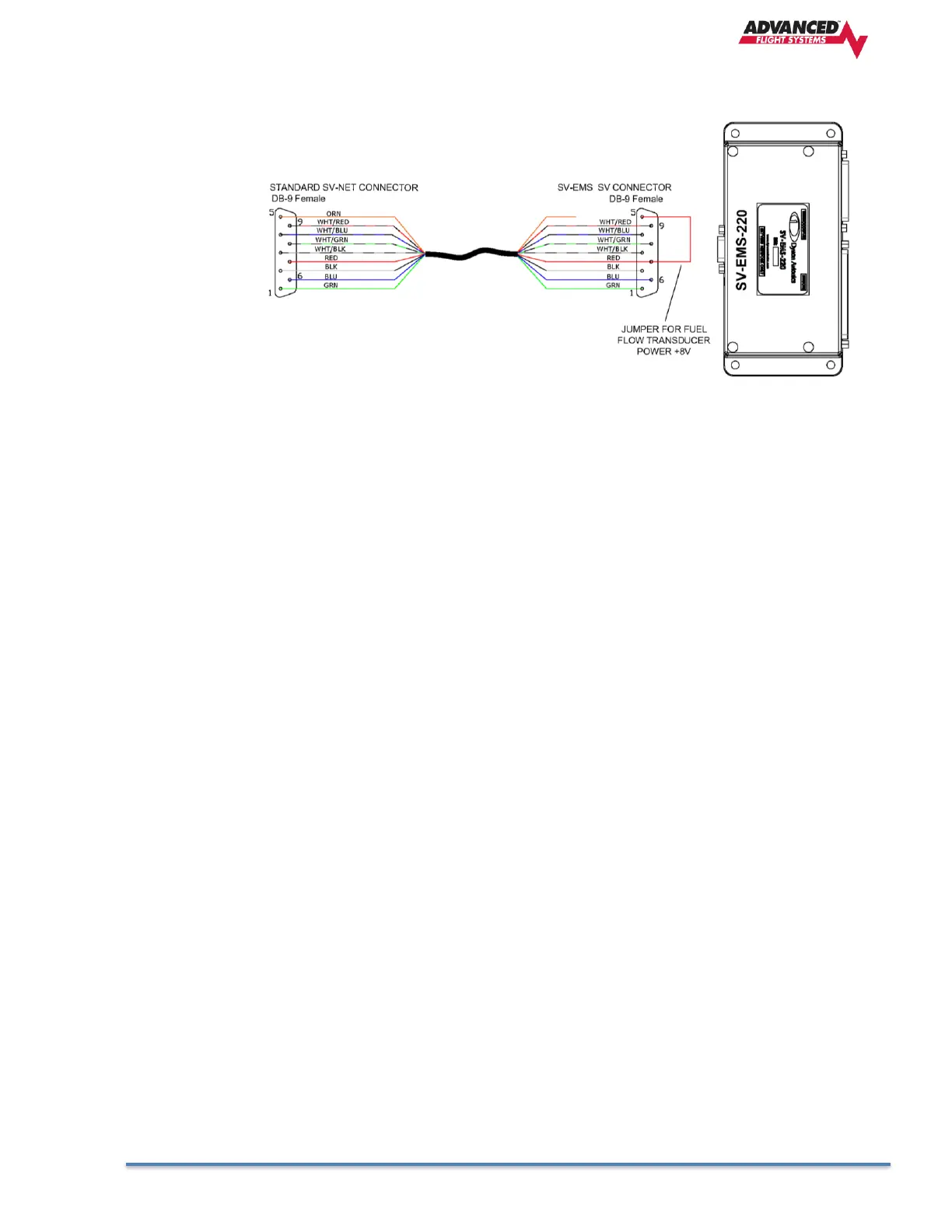

The SV-EMS-220 Engine Module is where you will connect all the sensors from a Lycoming
or Continental Engine. The SV-EMS has a 9 pin connector for the SV-Network (with jumper on
pin 7 to 9), a 25 pin connector for the CHT and EGT thermocouple probes, and a 37 pin
connector for the engine sensors.
