Carb Temp

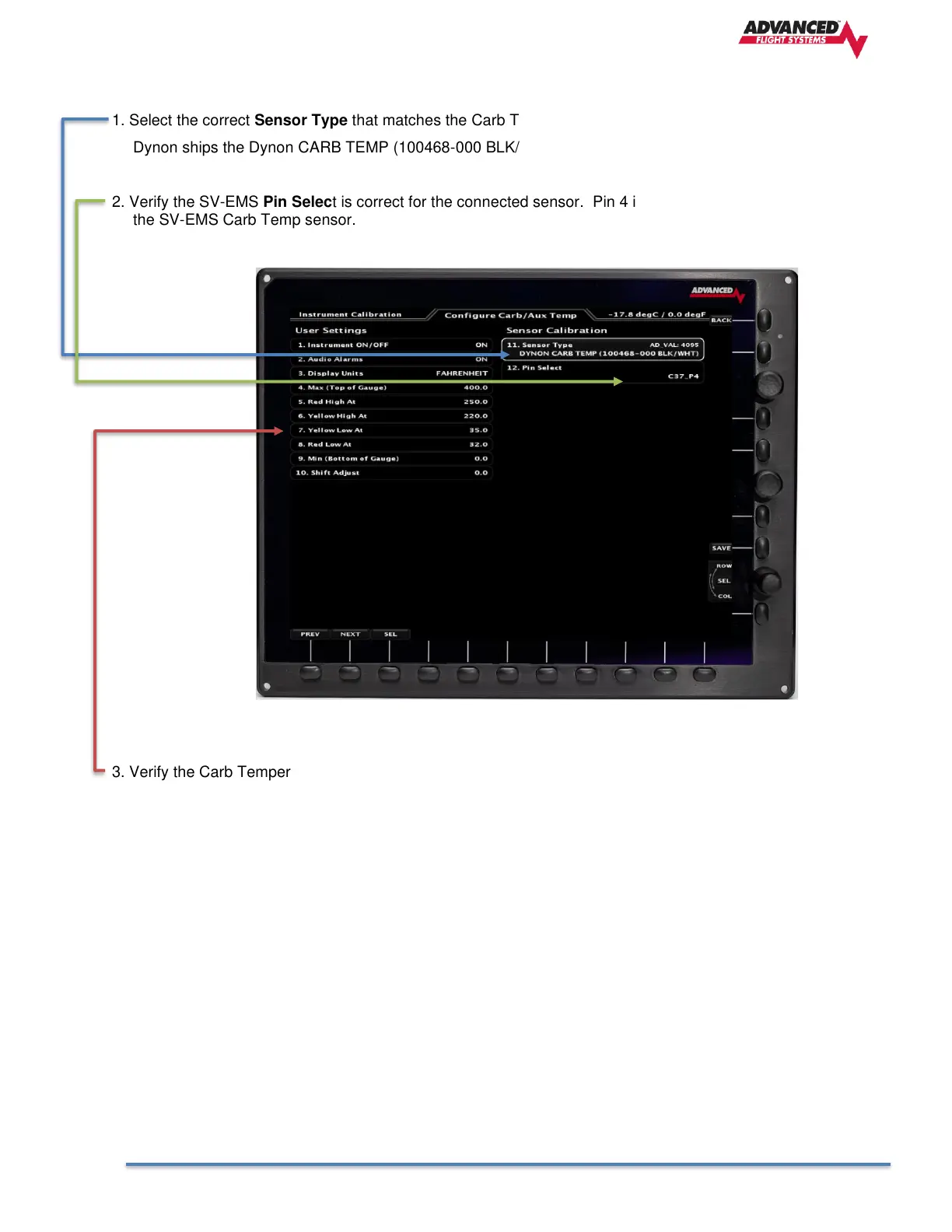

1. Select the correct Sensor Type that matches the Carb Temp sensor installed on the engine.
Dynon ships the Dynon CARB TEMP (100468-000 BLK/WHT) in the EMS Carb sensor kits.
2. Verify the SV-EMS Pin Select is correct for the connected sensor. Pin 4 is the standard connection for
the SV-EMS Carb Temp sensor.
3. Verify the Carb Temperature gauge display ranges match your engine manufacturers recommendations.
