Advanced AF-6600 - 2.5 Advanced SV Network Wiring Table

Version 16.10 AF-6600 AF-5000 Series Install Manual 22
2.5 Advanced SV Network Wiring Table
Advanced-SV
Network
Female D9 Pin
Advanced-SV Network
Cable Wire Color
Description
1
Green
Network Data 1 A
2
Black
Network Ground 1
3
White with Black Stripe
Network Ground 2
4
White with Blue Stripe
Network Data 2 B
5
Orange
EMS Auxiliary Voltage
6
Blue
Network Data 1 B
7
Red
Network Power 1
8
White with Green stripe
Network Data 2 A
9
White with Red stripe
Network Power 2

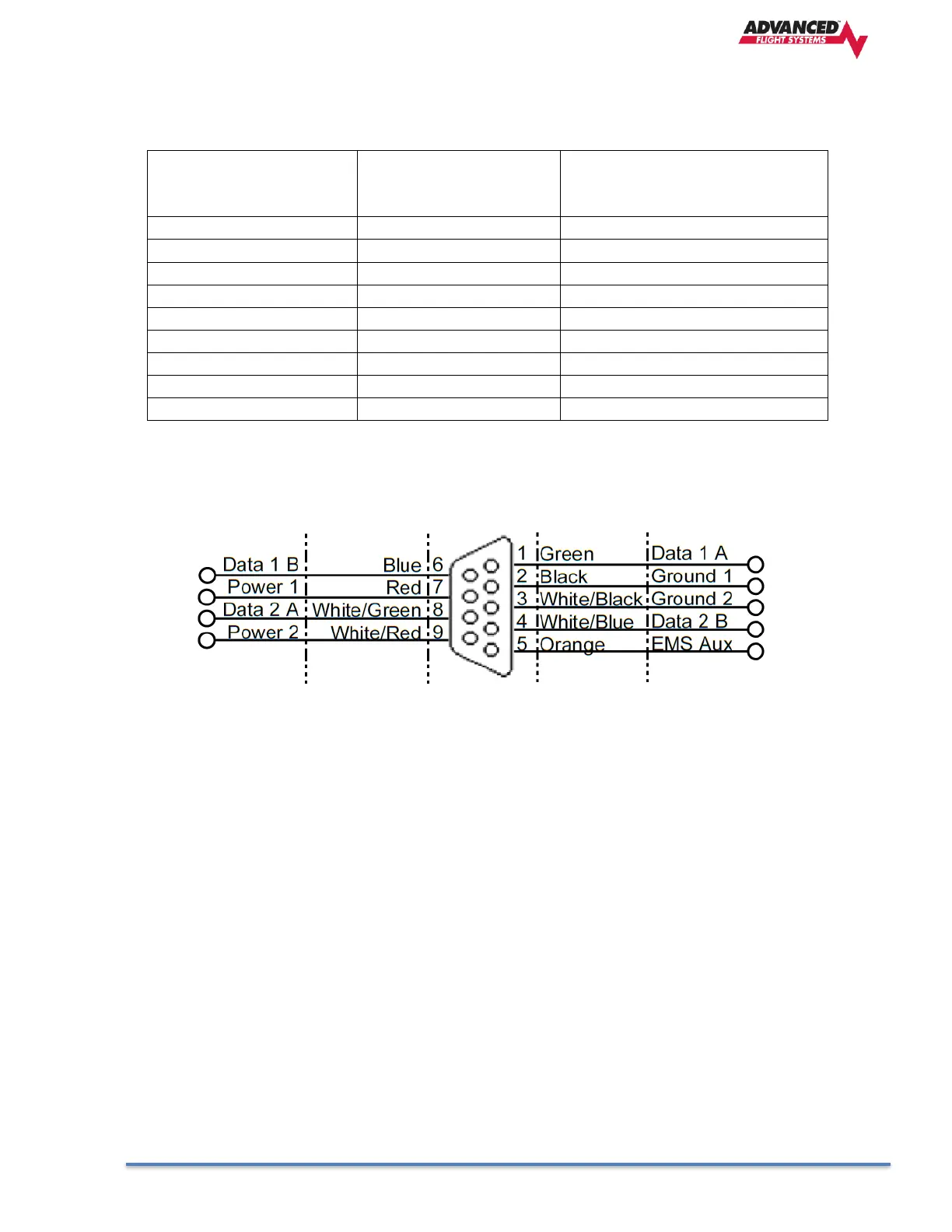

Network Female D9 Pin Insertion View (Rear)
