Dynon Autopilot Servo Installation, Configuration, and Calibration
This chapter contains generic mechanical and electrical installation guidelines for the Dynon servos
mentioned in Table 50. Plane-specific kits purchased from Dynon contain detailed drawings and
diagrams which are intended to be used in conjunction with this guide as a complete set of installation
instructions. A complete list of aircraft mounting kits is available on the current Price List/Order Form
at http://store.dynonavionics.com. Drawings and diagrams are also available at
http://docs.dynonavionics.com.

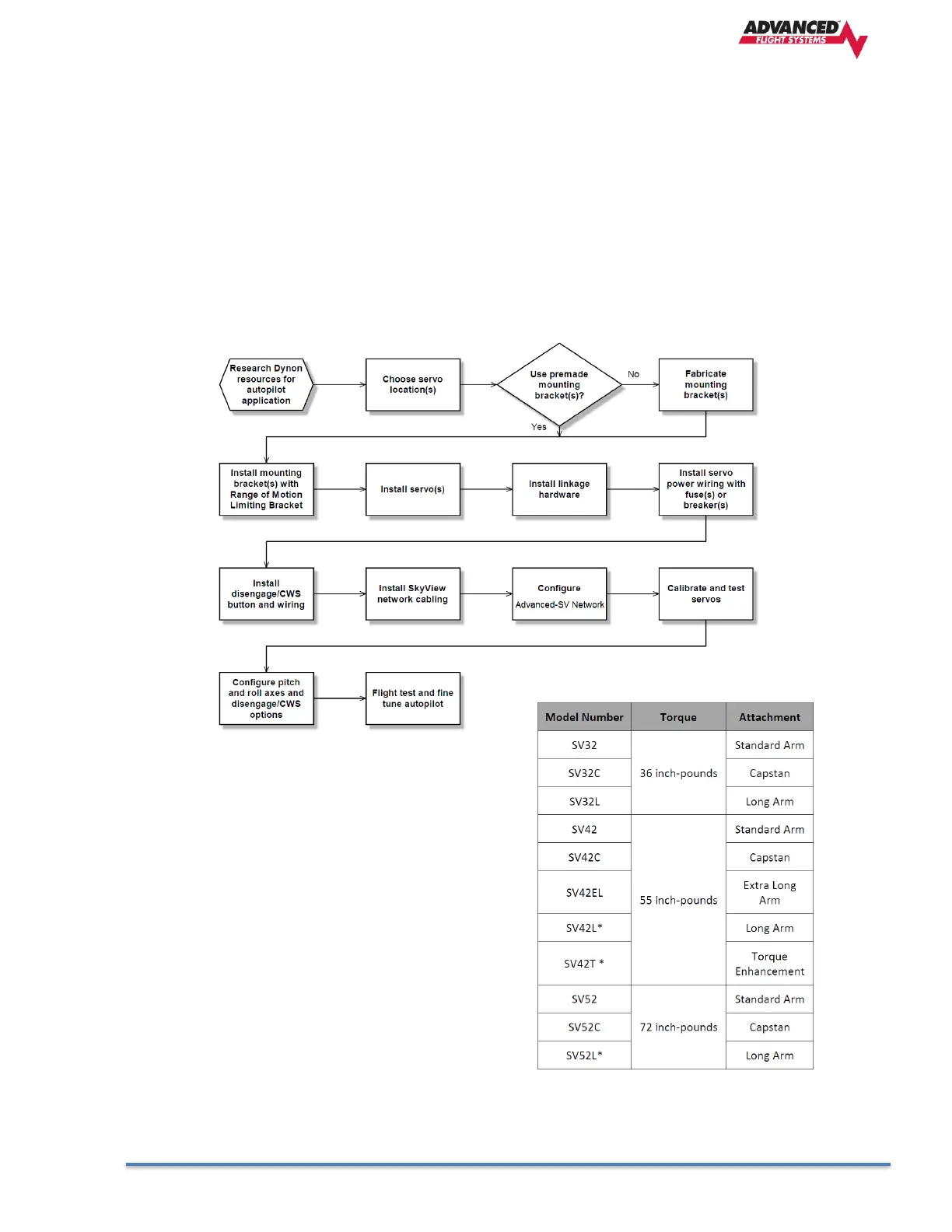

This Figure is a high-level overview of a suggested servo installation, configuration, and calibration
procedure.
Dynon Avionics offers the following servo models:
