Version 16.10 AF-6600 AF-5000 Series Install Manual 174

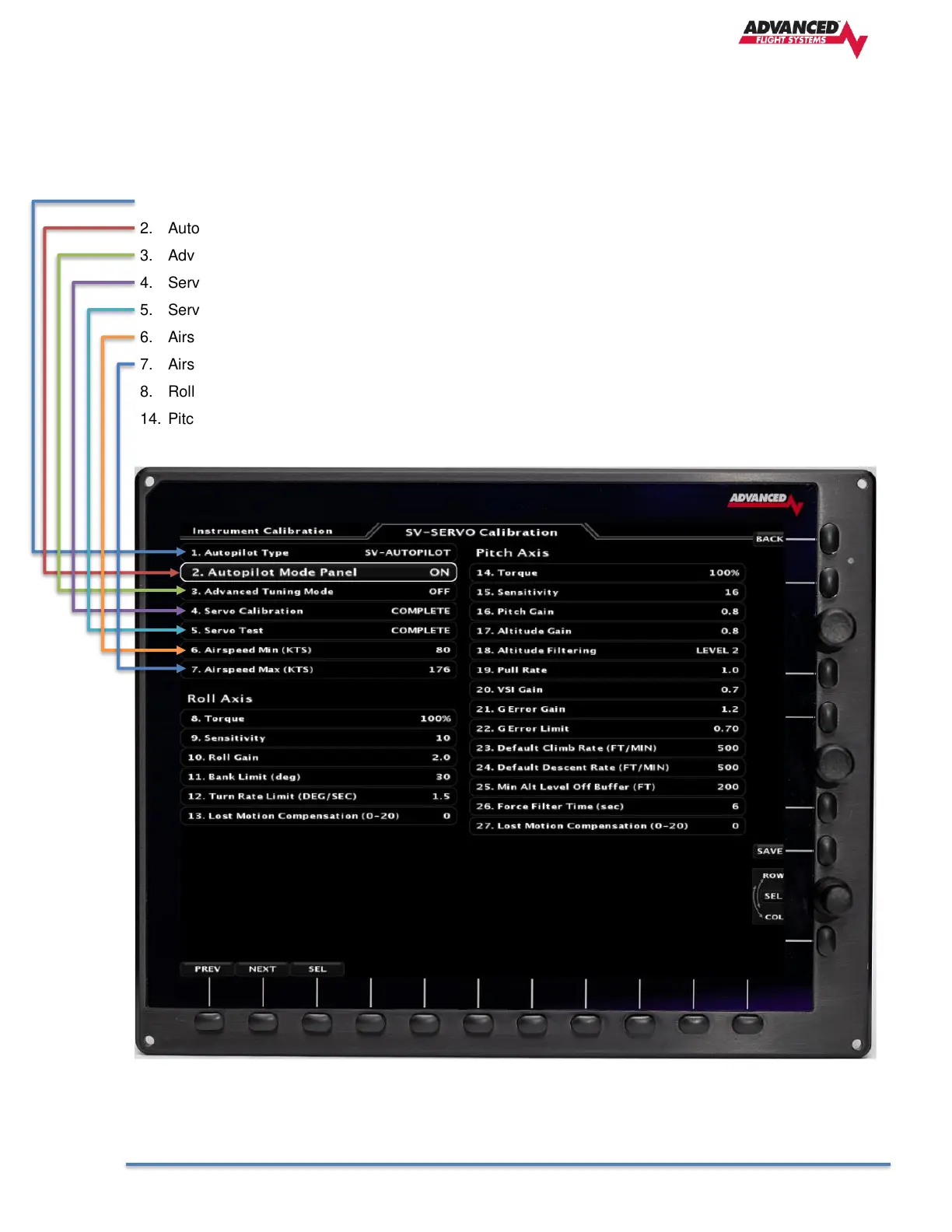

Autopilot Settings
The Autopilot in-flight tuning procedure is covered in the AF-6600 / AF-5000 Pilots Guide.
The following calibration items should be configured before doing the in-flight calibration.
Autopilot (Roll & Pitch)
1. Autopilot Type SV-AUTOPILOT for Dynon Servos
2. Autopilot Mode Panel ON
3. Advanced Tuning Mode OFF
4. Servo Calibration See next section for instructions
5. Servo Test See next section for instructions
6. Airspeed Min (KTS) Vs1 x 1.3 is a good starting point
7. Airspeed Max (KTS) Vne x .90 is a good starting point
8. Roll Axis Torque 100%
14. Pitch Axis Torque 100%
