Oil Pressure

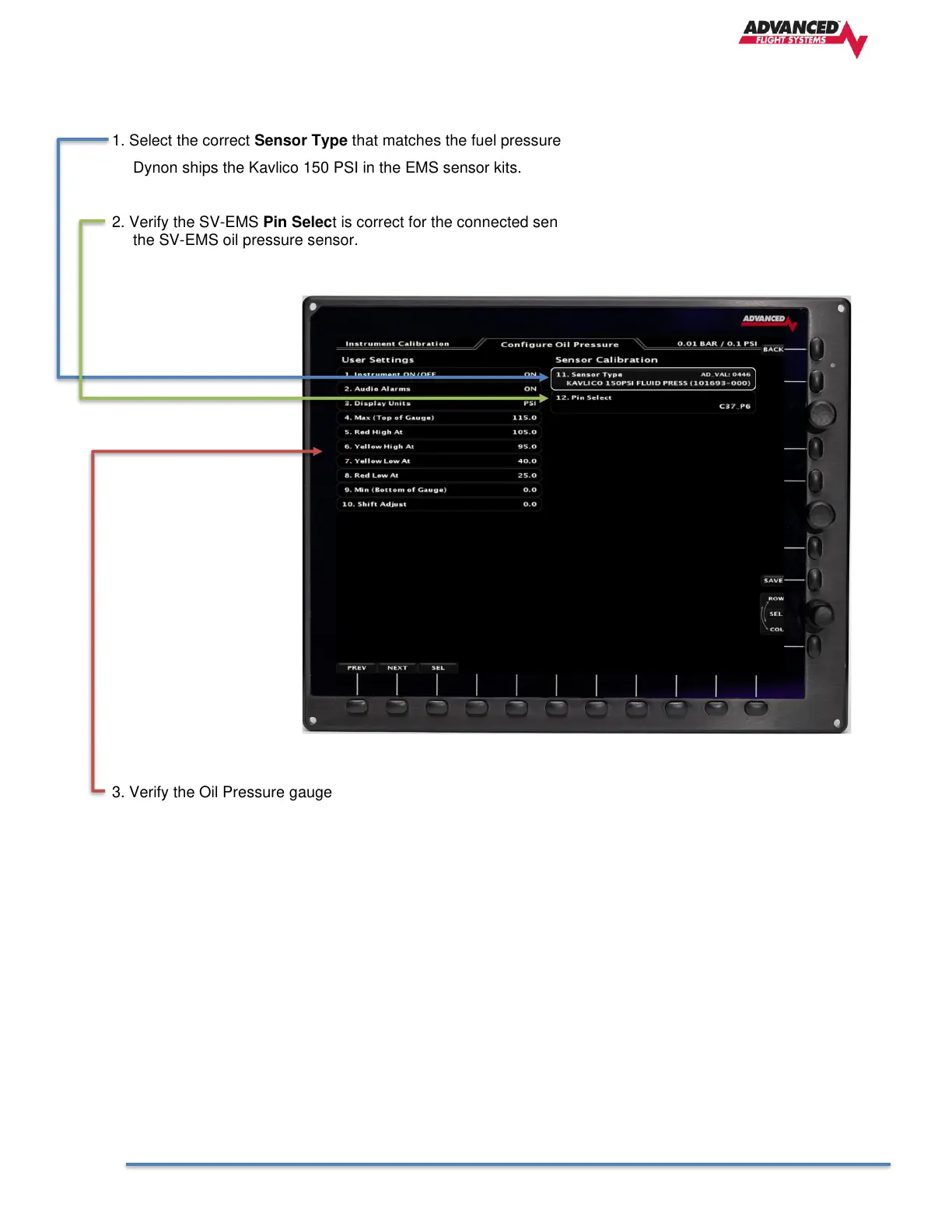

1. Select the correct Sensor Type that matches the fuel pressure transducer installed on the engine.
Dynon ships the Kavlico 150 PSI in the EMS sensor kits.
2. Verify the SV-EMS Pin Select is correct for the connected sensor. Pin 6 is the standard connection for
the SV-EMS oil pressure sensor.
3. Verify the Oil Pressure gauge display ranges match your engine manufacturers recommendations.
To Next Page
