Version 16.10 AF-6600 AF-5000 Series Install Manual 55
74125 SV-Intercom-2S
While the SV-INTERCOM-2S is designed to seamlessly complement a AF-5000 System, its design is
flexible enough to be used in any experimental or light sport aircraft panel that does not required a
TSO’d intercom.

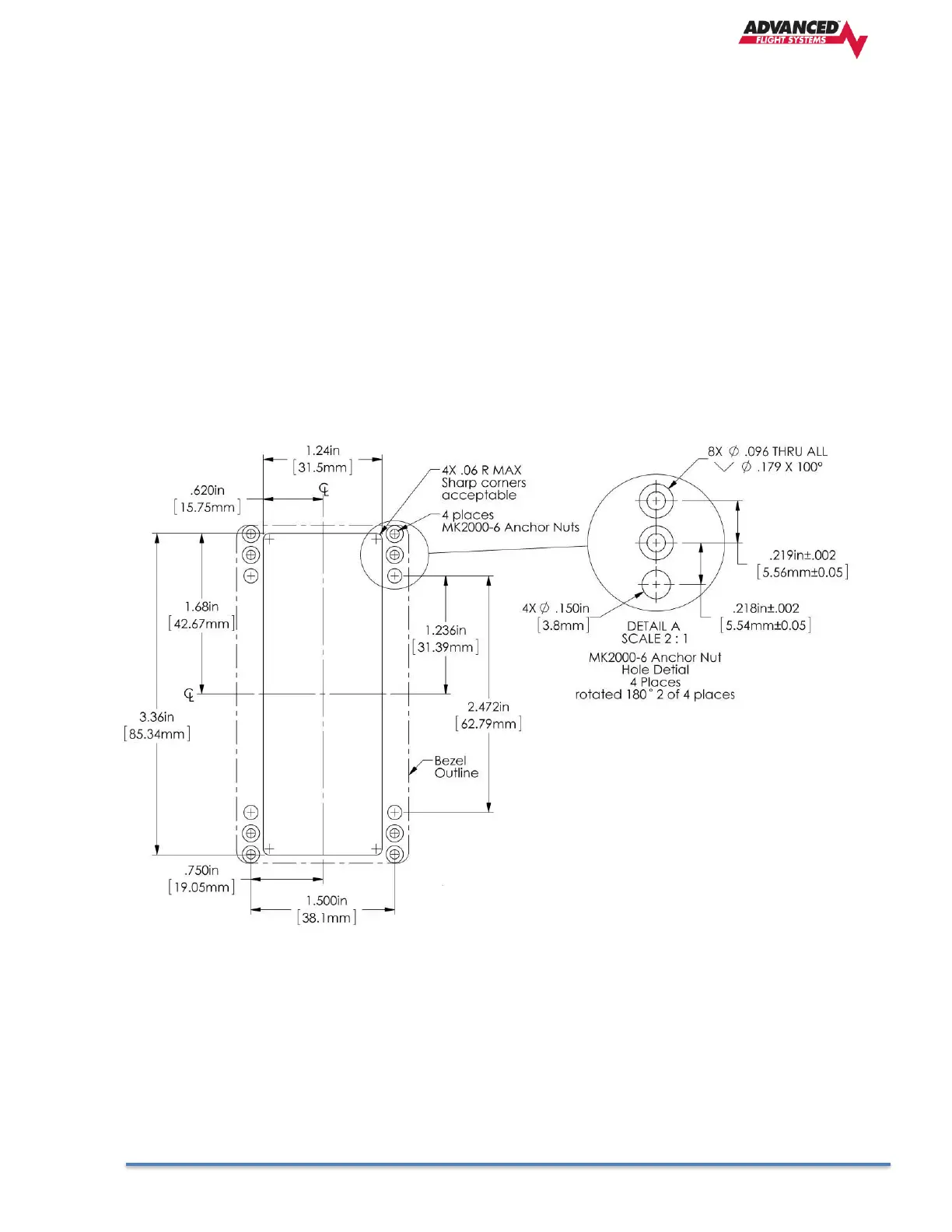

Physical Installation The AF-INTERCOM-2S package includes #6-32 hex-drive round head fasteners
(to match those furnished with AF-5000 displays). Fasteners are 5/8” in length and require a 5/64” hex
drive tool. AFS recommends fastening the included mounting screws to nut plates installed behind the
panel. If access behind the panel allows, standard #632 lock nuts or nuts with lock washers can be
used. Do not rivet the AF-INTERCOM-2S to the aircraft as this will hinder future removal if necessary.
