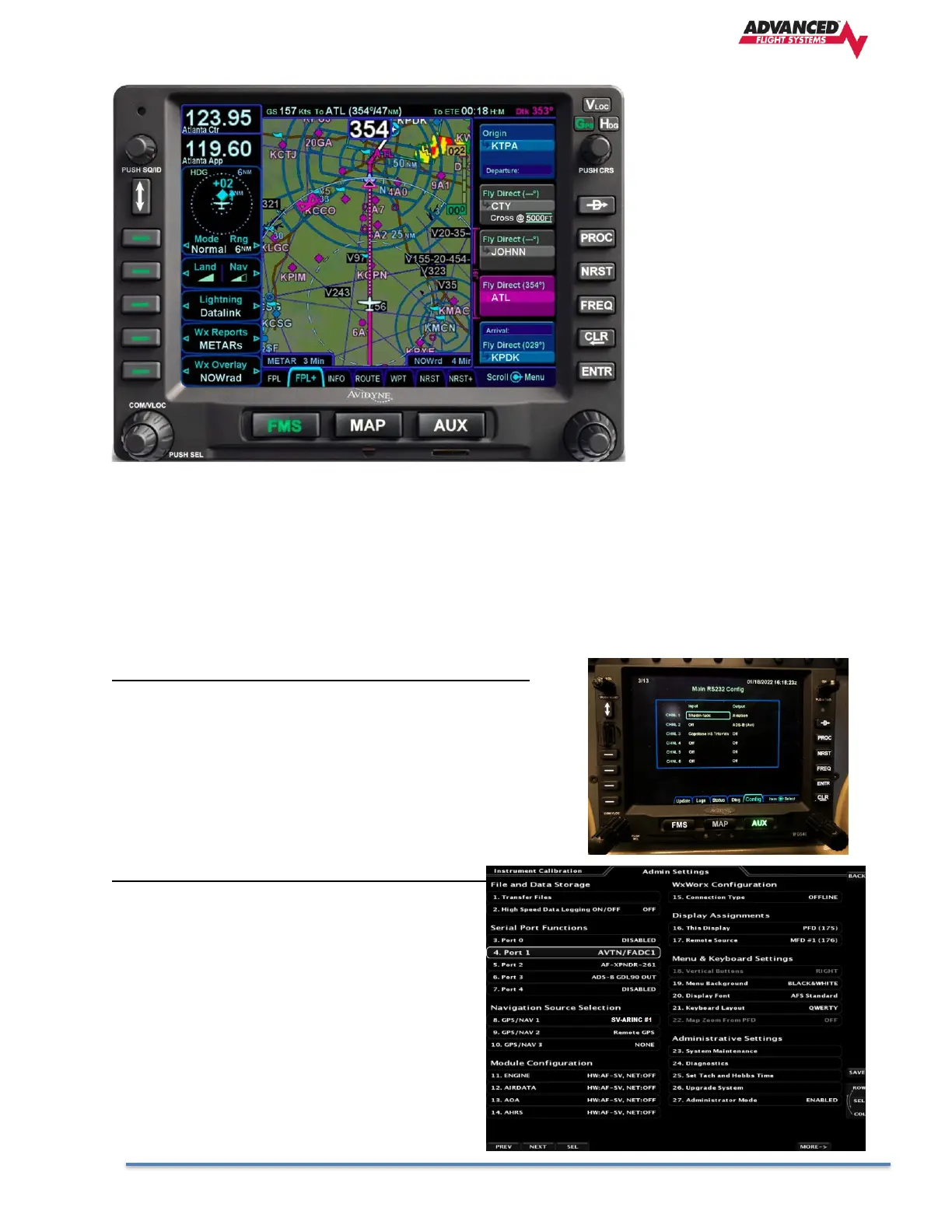

Avidyne IFD-440, IFD-540, IFD-550 GPS Navigator
The IFD uses ARINC-429 and RS-232 serial data to communicate with the EFIS. The Dynon SV-ARINC
module has the connections for both the ARINC-429 data and a RS-232 Serial receive port for GPS data.
An AF-6600 / AF-5000 EFIS has the ability to send ADS-B weather and traffic to an IFD Navigator using a
dedicated RS-232 serial port connection. An AF-6600 / AF-5000 can also control the IFD Radio Frequency
tuning using a dedicated RS-232 Serial Port. The ADS-B and/or Radio Tuning EFIS serial port do not need
to be connected to the same EFIS in a multi EFIS installation. Any of the 6 IFD navigator serial ports can be
connected to any of the 5 EFIS serial ports for ADS-B or Radio Tuning.
Avidyne IFD RS-232 Port Settings
Setting Description .
Shadin-fadc Fuel flow Data from EFIS EMS
Aviation GPS Data from IFD to SV-ARINC Module
ADS-B (Avi) GPS data for Mode S Transponder
VhfCtrl EFIS <> IFD Radio Tuning
Capstone HS Trfc+wx ADS-B Wx+Trfc data from EFIS
EFIS RS-232 Port Settings for IFD
Setting Description .
ADS-B GDL90 OUT ADS-B Wx+Trfc data to IFD
FADC1 Fuel flow Data to IFD
GTR/GNC-2xx EFIS <> IFD Radio Tuning
