Version 16.10 AF-6600 AF-5000 Series Install Manual 133

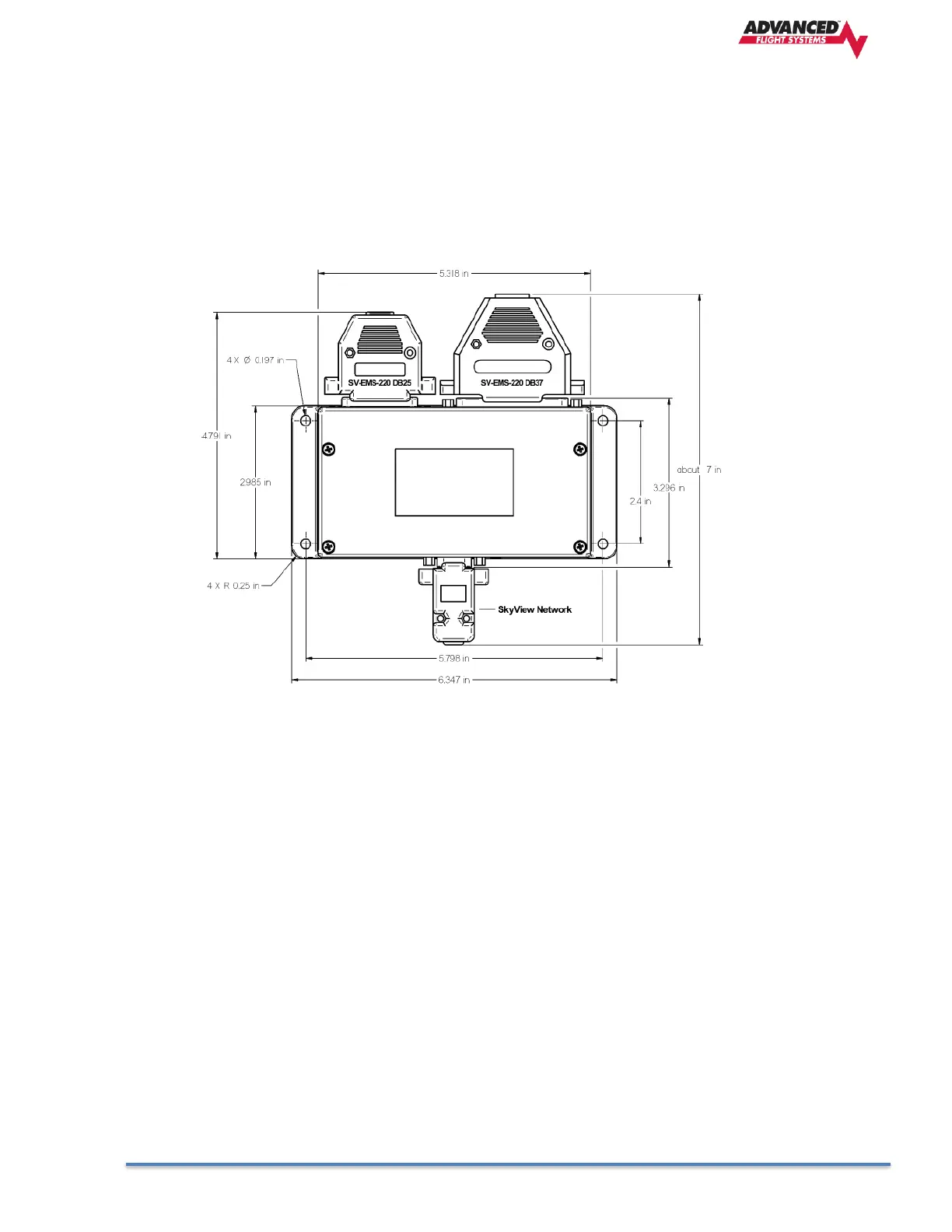

Physical Mounting
Advanced Flight Systems does not include mounting hardware for use with the SV-EMS-220. The mounting
tabs on each side of the module have holes sized for #10 fasteners, but it is up to the installer to decide how
the EMS will be secured to the aircraft. Use of ferrous fasteners in this location is acceptable as the EMS is
not adversely affected by small magnetic fields. Dynon recommends button head style AN hardware as
spacing between the holes in the tabs and the body of the enclosure will limit what style tool can be used to
tighten certain fasteners.
SkyView Network Connection
Connect the EMS module to the SkyView network.
