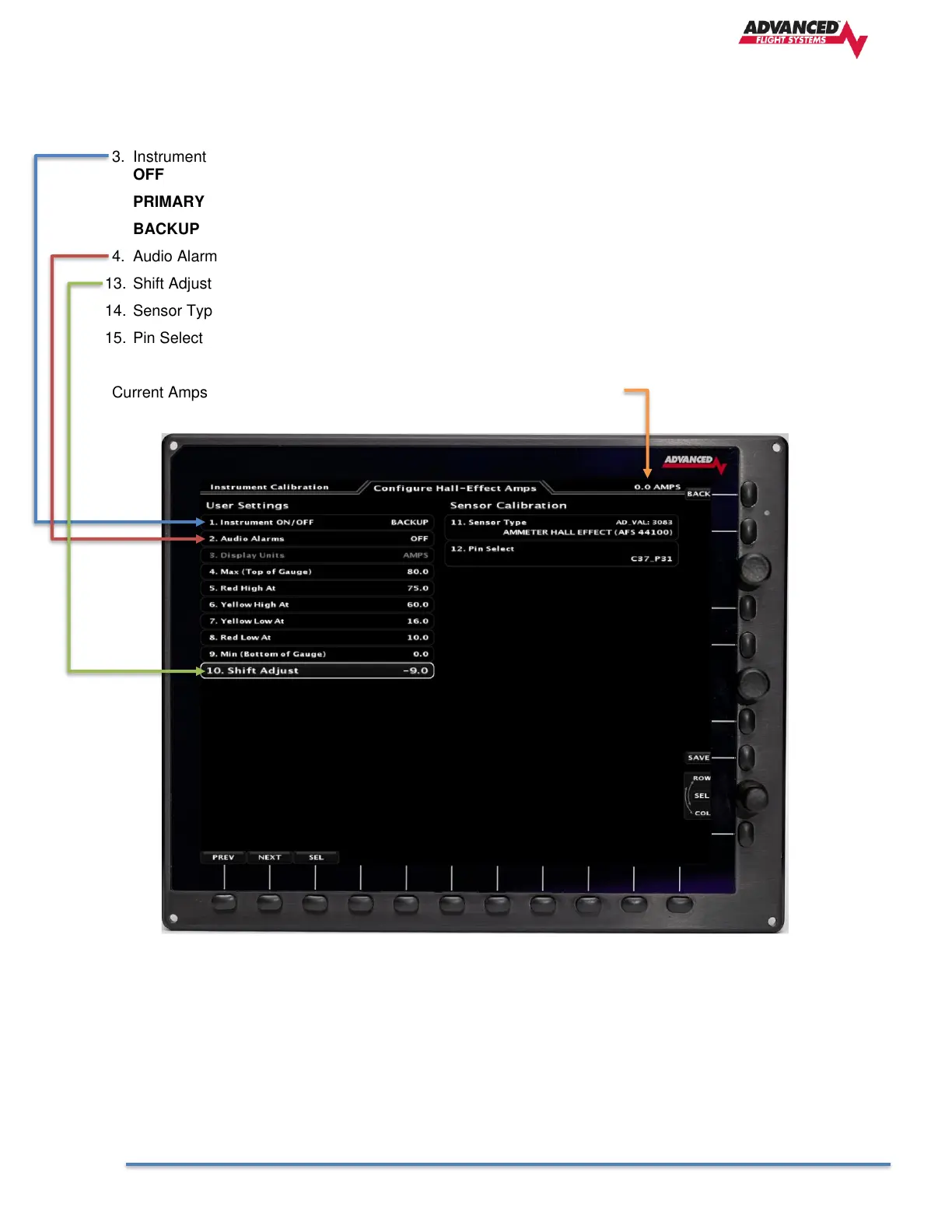

Version 16.10 AF-6600 AF-5000 Series Install Manual 198
Amperage (Hall-Effect)
3. Instrument ON/OFF
OFF Turns OFF the Hall sensor Amps Display
PRIMARY Turns ON the Hall sensor Amps Display
BACKUP Splits the AMP sensor display and displays the Hall Amperage as AMPS2
4. Audio Alarms Turns ON or OFF the AMPS Audio Alerts
13. Shift Adjust Compensates for errors in the Hall amps sensor zero reading
14. Sensor Type Select the model number for the connected sensor
15. Pin Select Should always be P31
Current Amps Reading – Use Shift Adjust to make Zero with Engine OFF
