Version 16.10 AF-6600 AF-5000 Series Install Manual 209

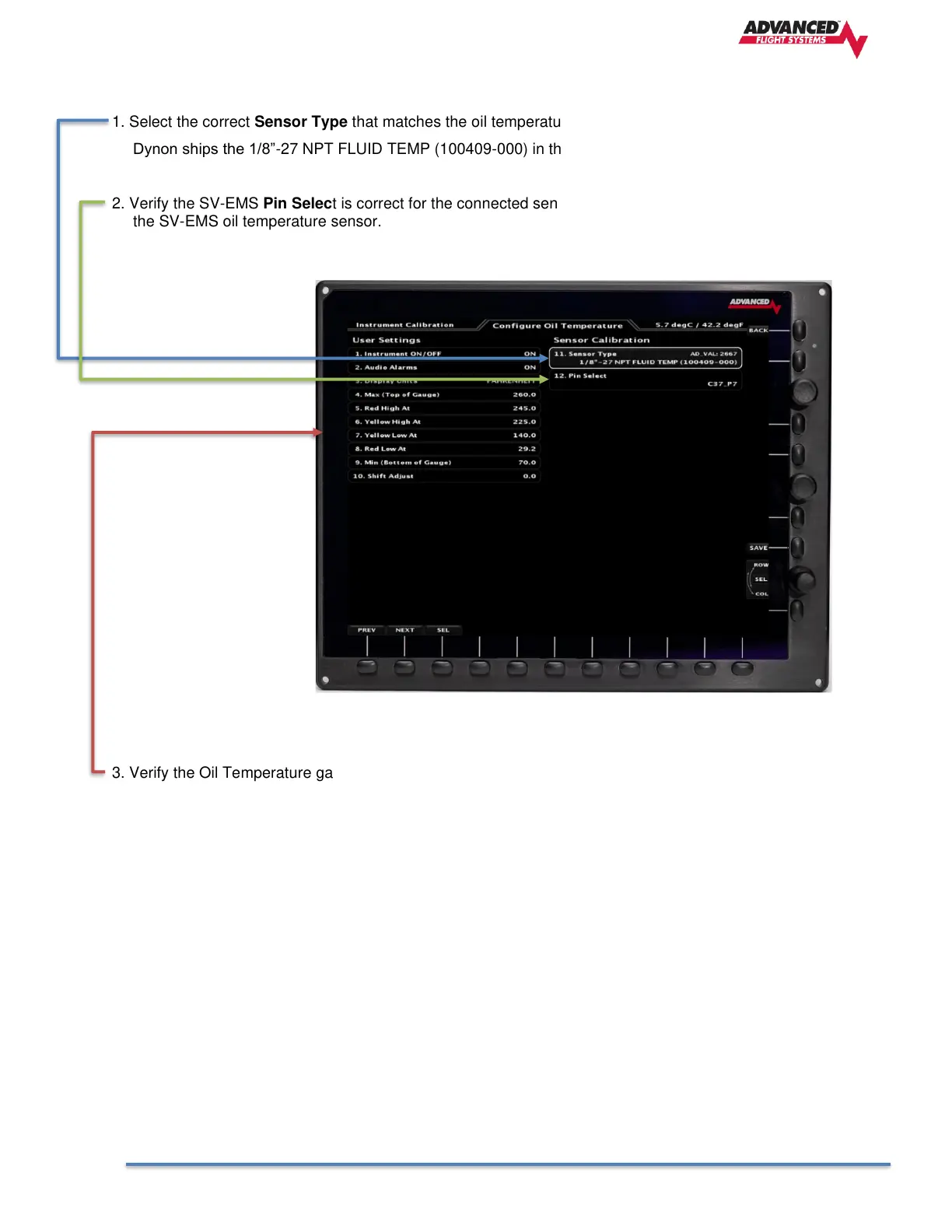

Oil Temperature
1. Select the correct Sensor Type that matches the oil temperature transducer installed on the engine.
Dynon ships the 1/8”-27 NPT FLUID TEMP (100409-000) in the EMS sensor kits.
2. Verify the SV-EMS Pin Select is correct for the connected sensor. Pin 7 is the standard connection for
the SV-EMS oil temperature sensor.
3. Verify the Oil Temperature gauge display ranges match your engine manufacturers recommendations.
